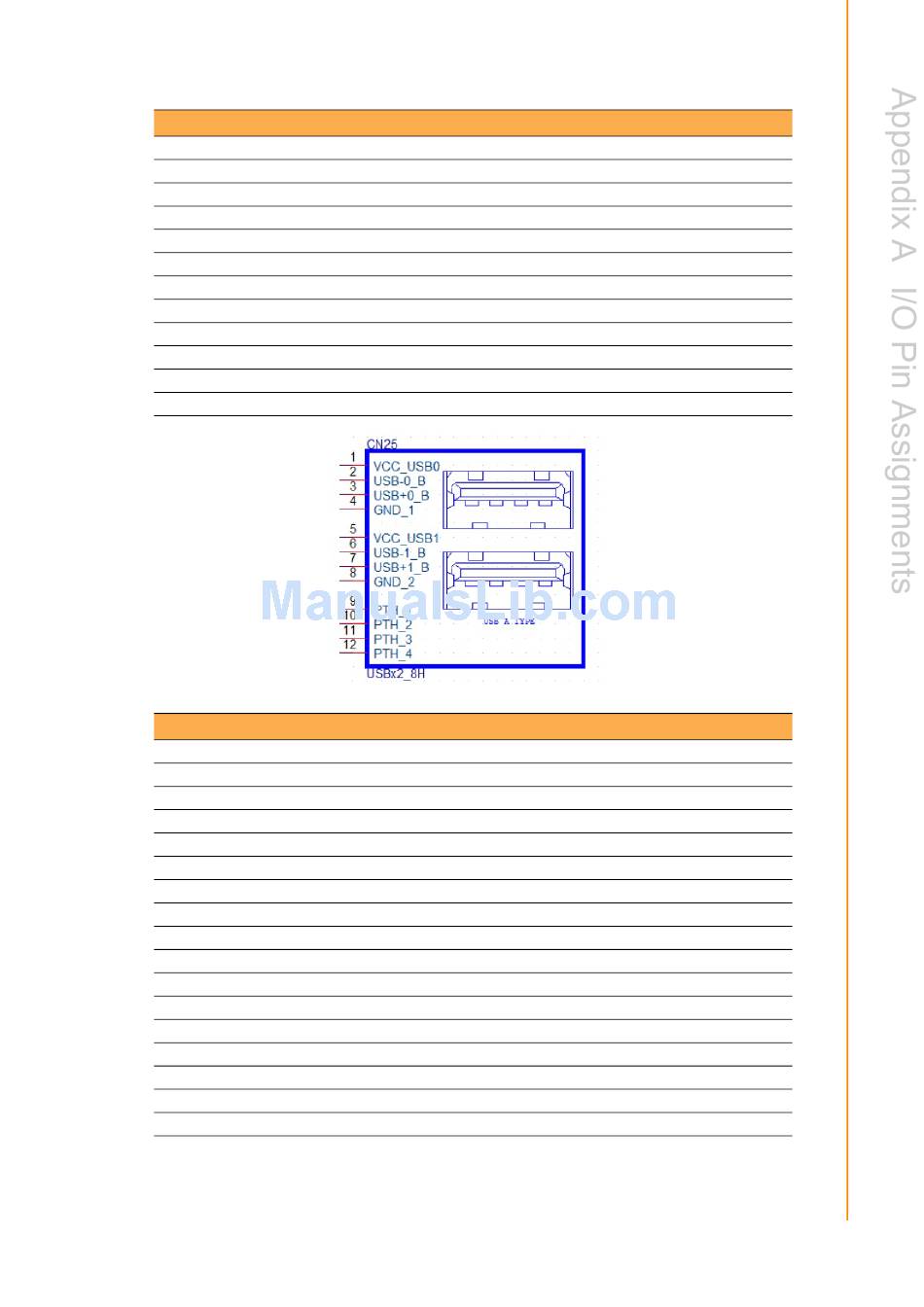

Table A.17: CN25: External USB
Part Number
1654009513
Footprint
USB_8P_UB1112C-8FDE-4F
Description
USB Conn. 8P 2.0 mm 90D DIP UB1112C-8FDE-4F
Pin
Pin Name
1
+5 VSB
2
D-
3
D+
4
GND
5
+5 VSB
6
D-
7
D+
8
GND
Table A.18: CN26: External USB
Part Number
1654010199
Footprint
USB_13P_UEA1112C-UHS6-4F
Description
USB Conn. 2.0+3.0 13P 90D(F) DIP UEA1112C-UHS6-4
Pin
Pin Name
1
+5VSB
2
D0-
3
D0+
4
GND
5
RX_D-
6
RX_D+
7
GND
8
TX_D-
9
TX_D+
10
+5 VSB
11
D1-
12
D1+
13
GND
39
UTC-318 User Manual
