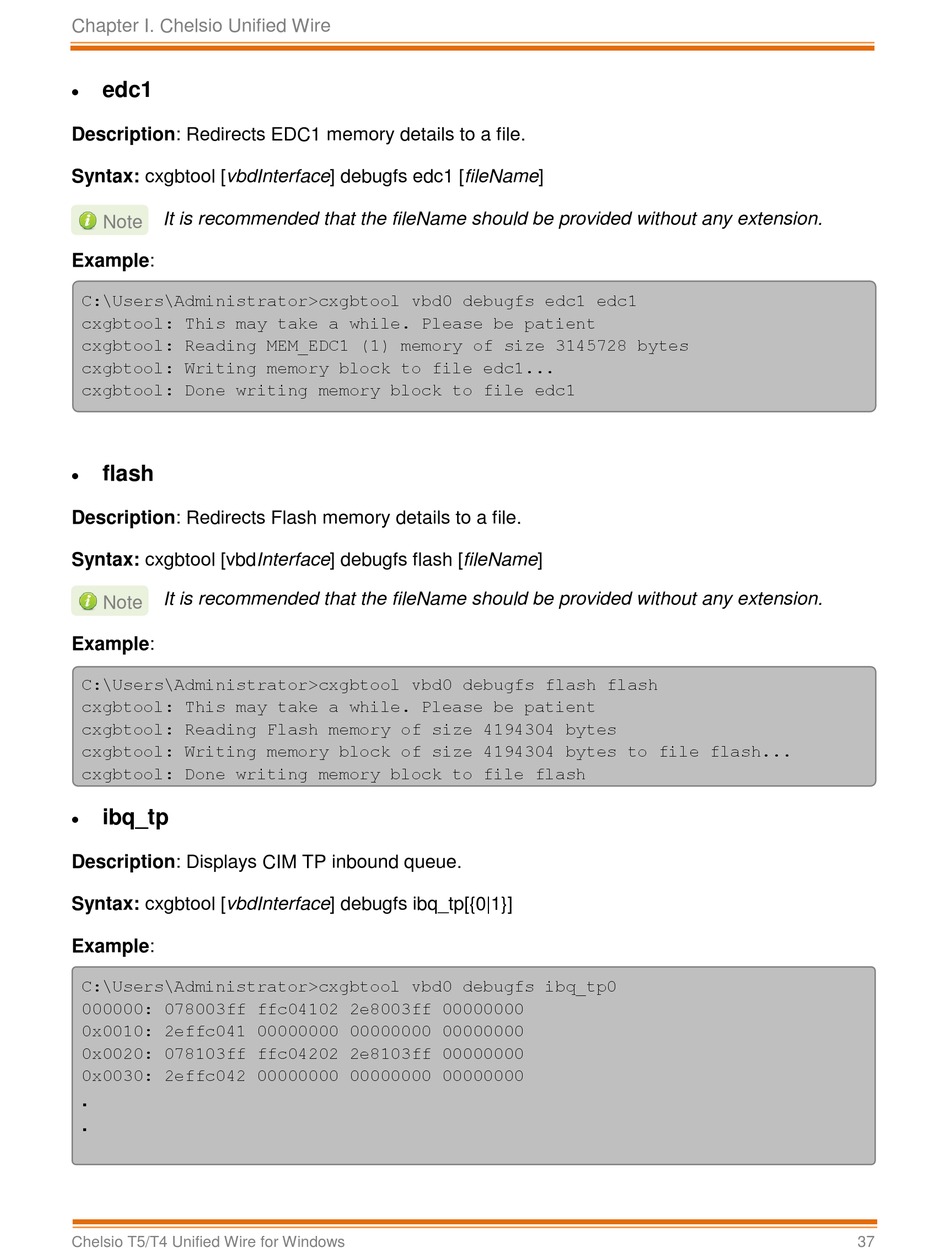

Chelsio T5 Installation And User Manual page 37

Chapter I. Chelsio Unified Wire

edc1
Description: Redirects EDC1 memory details to a file.
Syntax: cxgbtool [vbdInterface] debugfs edc1 [fileName]
It is recommended that the fileName should be provided without any extension.
Note
Example:
C:\Users\Administrator>cxgbtool vbd0 debugfs edc1 edc1
cxgbtool: This may take a while. Please be patient
cxgbtool: Reading MEM_EDC1 (1) memory of size 3145728 bytes
cxgbtool: Writing memory block to file edc1...
cxgbtool: Done writing memory block to file edc1

flash
Description: Redirects Flash memory details to a file.
Syntax: cxgbtool [vbdInterface] debugfs flash [fileName]
It is recommended that the fileName should be provided without any extension.
Note
Example:
C:\Users\Administrator>cxgbtool vbd0 debugfs flash flash
cxgbtool: This may take a while. Please be patient
cxgbtool: Reading Flash memory of size 4194304 bytes
cxgbtool: Writing memory block of size 4194304 bytes to file flash...
cxgbtool: Done writing memory block to file flash

ibq_tp
Description: Displays CIM TP inbound queue.
Syntax: cxgbtool [vbdInterface] debugfs ibq_tp[{0|1}]
Example:
C:\Users\Administrator>cxgbtool vbd0 debugfs ibq_tp0
000000: 078003ff ffc04102 2e8003ff 00000000
0x0010: 2effc041 00000000 00000000 00000000
0x0020: 078103ff ffc04202 2e8103ff 00000000
0x0030: 2effc042 00000000 00000000 00000000
.
.
