Chapter V. Unified Wire Manager (UM)
8.6.3. Networking Management page
The system networking configurations are shown on this page. IP addresses, MTU, VLAN Ids,
DNS and default gateway settings can be viewed and modified here. Network adapters can also
be enabled or disabled as required. The modules available on this page are as below:
System Network configuration
The list of network adapters on the system is displayed in a list on the left. The icon for the
adapter indicates whether it is administratively enabled and if it is connected to the network. The
primary IP address (IPv4) can be set for the adapter, when it is selected. There is an option to
add/modify/delete additional IP addresses or aliases for the specified adapter. Use the option to
add additional IP addresses with caution, since multiple IP addresses configured on the same
adapter, for the same network, may result in unpredictable behavior of the system's networking
stack. Maximum Transfer Unit (MTU) can be set between 1500-9000 bytes. VLAN id can also
be set for an adapter within the range 0-4094 (enter 0 to disable it).
You can use the View/Set IP addresses option to add, modify or delete IP aliases.

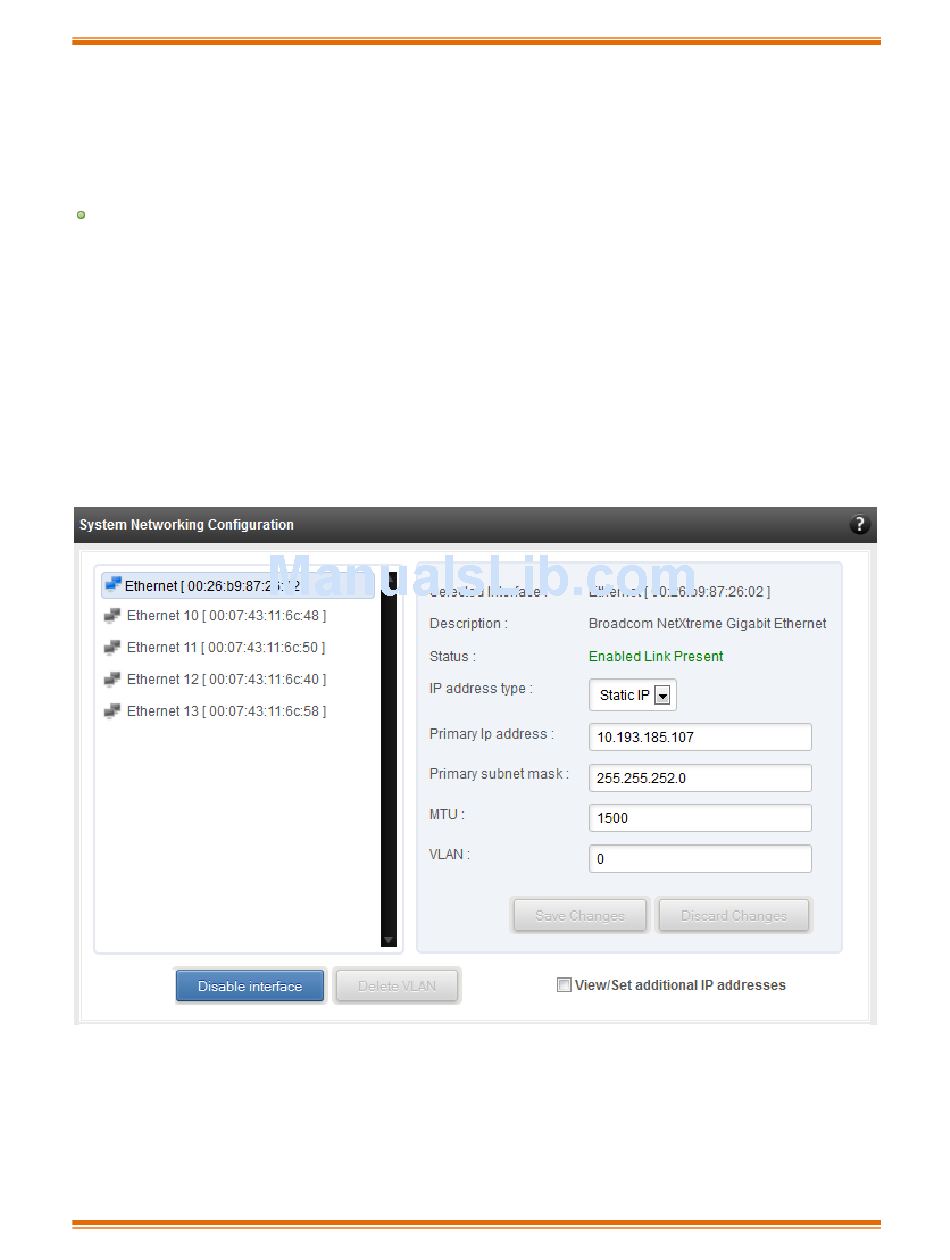

Figure 8.6.3 (a) - System network configuration module
