Chapter V. Unified Wire Manager (UM)
FO iSCSI Manage Ports
Here you can configure various port settings like VLAN id, Maximum Transmission Unit (MTU)
and IP. Select a Chelsio adapter from Select a T4 Card drop-down list and then select the port
for which you want set any of the aforementioned properties. MTU can be set between 1500-
9000 bytes. VLAN id can be set within the range 0-4094 (enter 0 to disable it). The IP type can
be IPV4 (static) or DHCP.
The Port Up and Port Down buttons will enable and disable the selected port respectively. The
Clear IP button deletes values set for the IP Type, IP, Subnet Mask and Gateway properties
and resets them.

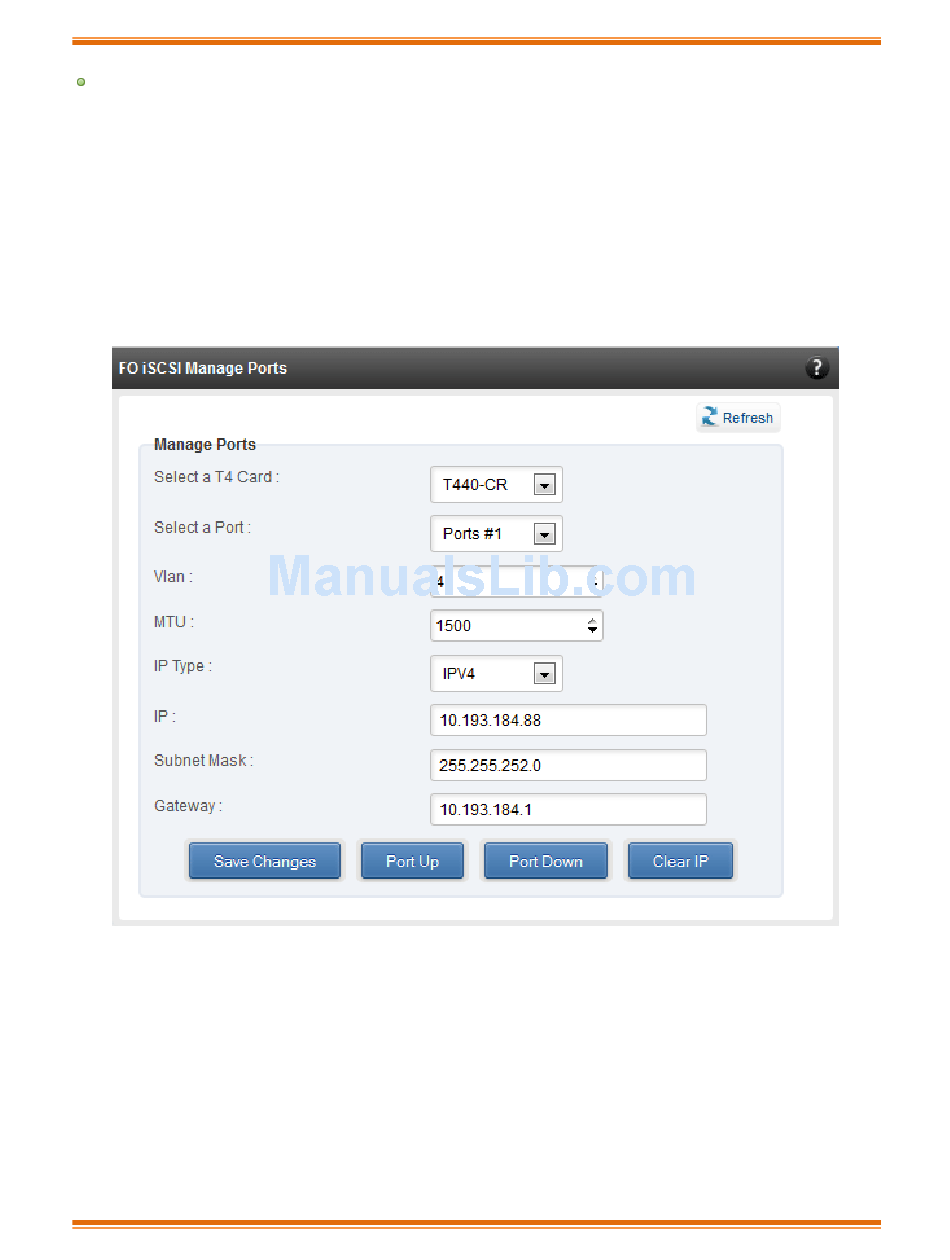

Figure 8.7.3 (b) - FO iSCSI Manage Ports module
