Chelsio T5 Installation And User Manual page 126

Chapter V. Unified Wire Manager (UM)
Device Driver settings (Windows)
The device driver settings applicable to the card are shown here. For Chelsio T5 and T4
adapters, only the MaxVMQueues field will be displayed. On changing the settings, the changed
settings may not reflect immediately on refreshing the data. Highlight the system item in the tree
menu on the left, and click Refresh, to refresh data from the system, in case the updated
settings are not being shown.

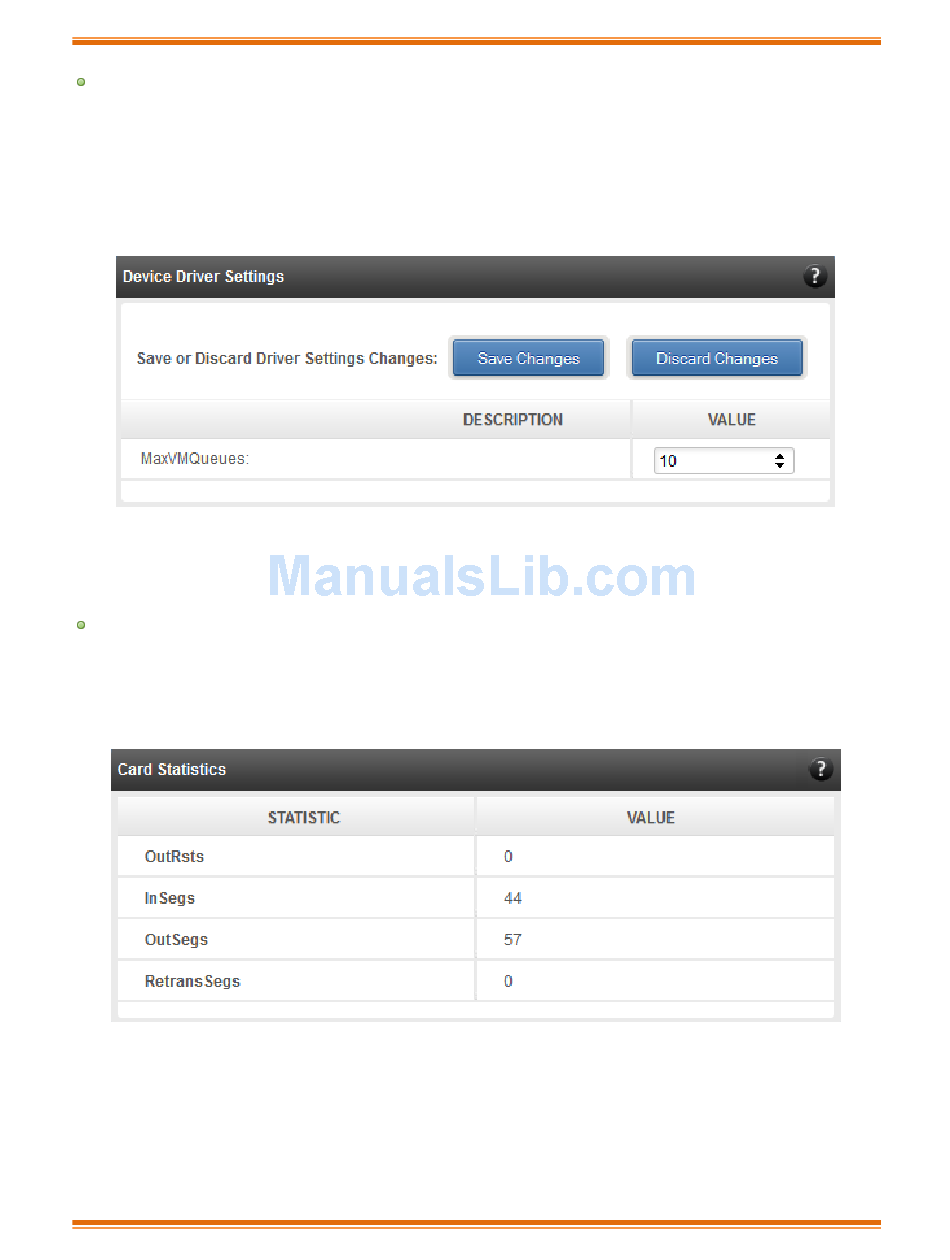

Figure 8.6.2 (c) - Device Driver Settings module for a Windows Agent
Card statistics
Certain statistics are maintained on a per card basis (instead of a per port basis), since the card
has a TCP/IP offload capability. The statistics are for TCP and IP protocol processing done in
the card's hardware. These statistics may only be applicable if the card is TOE enabled.
Chelsio T5/T4 Unified Wire for Windows
Figure 8.6.2 (d) - Card Statistics module
126
