Chapter V. Unified Wire Manager (UM)
8.3.

Layout and Navigation

The Web Management Interface consists of the following:

Title bar displaying the username on the left, Unified Wire Manager logo and name in the
centre; and a Logout button on the right.

Menu Bar consisting of the Home, Add System, Remove System, Refresh, Subscribe
and Bulk Configuration buttons.

The Navigation Pane with a cascading tree of links to various configuration modules for a
UM Agent. You can navigate between connected agents and various sections of the
managed agent's interface. You can view and hide the configuration modules for each
Agent by clicking on the "+"and "-"links respectively

The Details Pane on the right displaying panels associated with the tree menu item
selected in the Navigation Pane. The panels can be expanded and collapsed by clicking on
the panel heading.

The Bottom bar has the About link on the right and copyright details on the left.
Chelsio T5/T4 Unified Wire for Windows

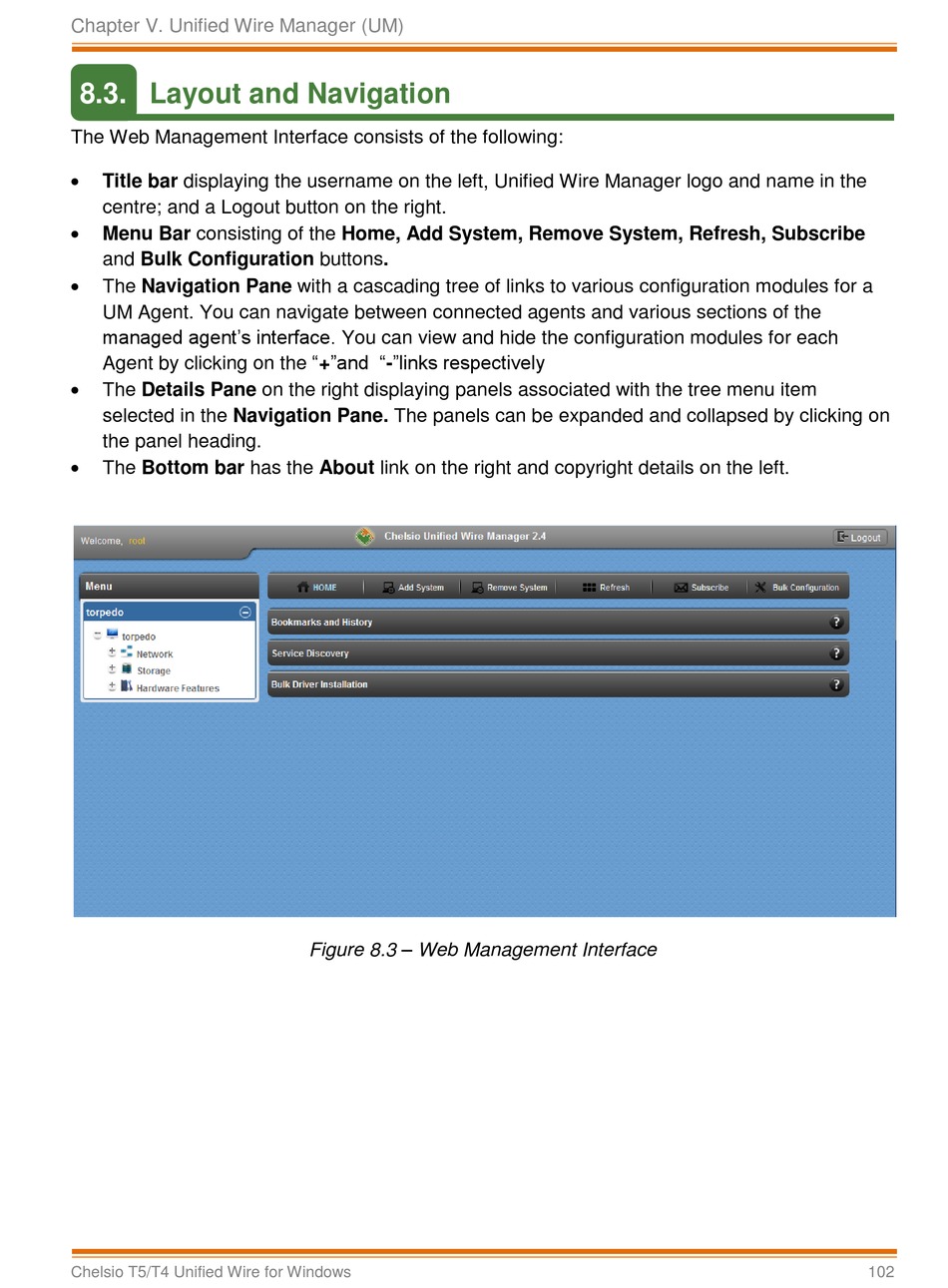

Figure 8.3 – Web Management Interface
