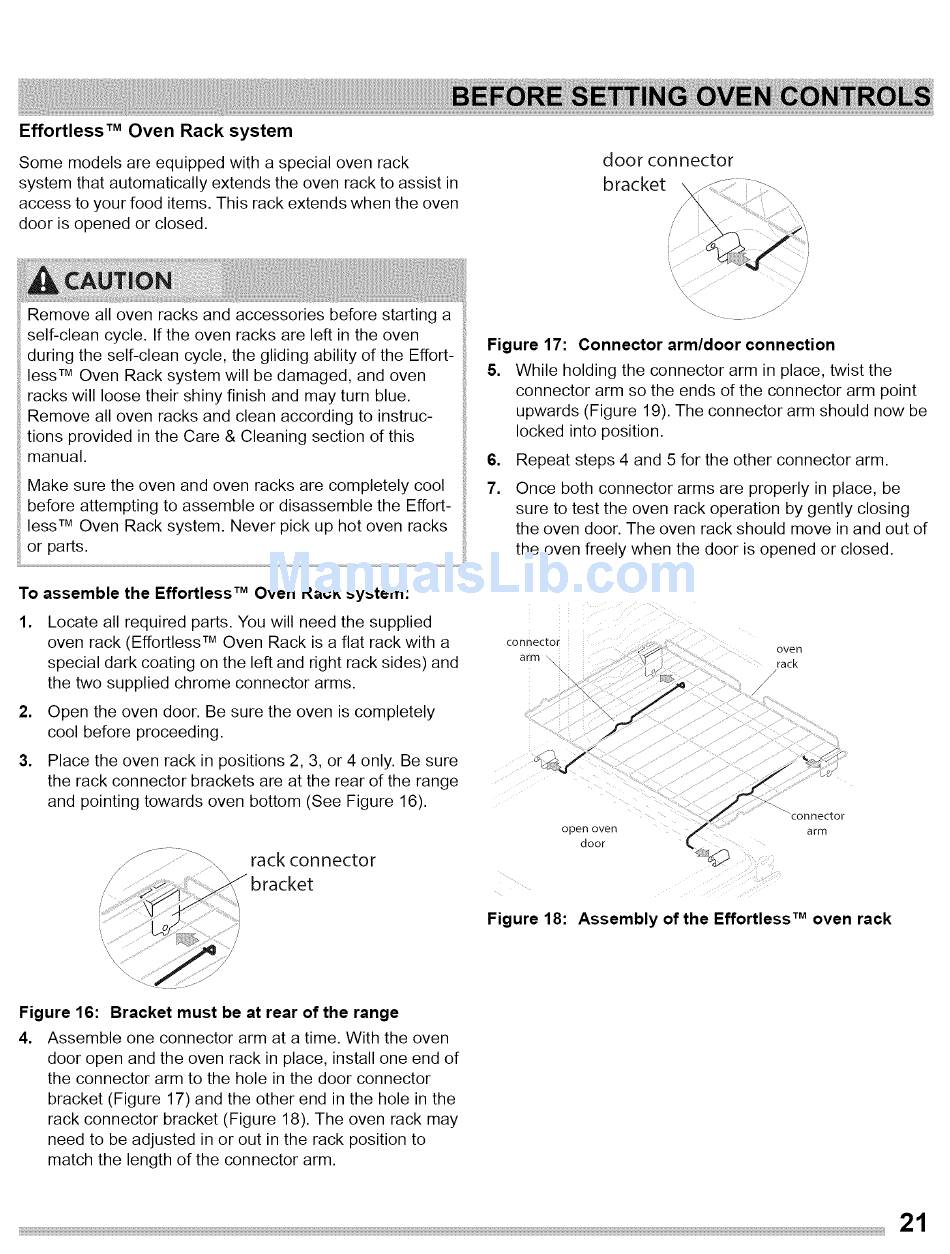

TM Oven Rack system
Some models are equipped with a special oven rack
system that automatically extends the oven rack to assist in
access to your food items. This rack extends when the oven
door is opened or closed.
Remove all oven racks and accessories before starting a
self-clean cycle. If the oven racks are left in the oven
during the self-clean cycle, the gliding ability of the Effort-
less TMOven Rack system will be damaged, and oven
racks will loose their shiny finish and may turn blue.
Remove all oven racks and clean according to instruc-
tions provided in the Care & Cleaning section of this
Make sure the oven and oven racks are completely cool
before attempting to assemble or disassemble the Effort-
less TMOven Rack system. Never pick up hot oven racks
or parts.
To assemble the Effortless TMOven Rack system:
Locate all required parts. You will need the supplied
oven rack (Effortless TMOven Rack is a flat rack with a
special dark coating on the left and right rack sides) and
the two supplied chrome connector arms.
Open the oven door. Be sure the oven is completely
cool before proceeding.
Place the oven rack in positions 2, 3, or 4 only. Be sure
the rack connector brackets are at the rear of the range
and pointing towards oven bottom (See Figure 16).
rack connector
door connector
Figure 17:
Connector arm/door
While holding the connector arm in place, twist the
connector arm so the ends of the connector arm point
upwards (Figure 19). The connector arm should now be
locked into position.
Repeat steps 4 and 5 for the other connector arm.
Once both connector arms are properly in place, be
sure to test the oven rack operation by gently closing
the oven door. The oven rack should move in and out of
the oven freely when the door is opened or closed.
Figure 18: Assembly of the Effortless TMoven rack
Figure 16: Bracket must be at rear of the range
Assemble one connector arm at a time. With the oven
door open and the oven rack in place, install one end of
the connector arm to the hole in the door connector
bracket (Figure 17) and the other end in the hole in the
rack connector bracket (Figure 18). The oven rack may
need to be adjusted in or out in the rack position to
match the length of the connector arm.
