Getting Started Quickly; International Electrical Symbols - Fluke 87 TRUE RMS MULTIMETER User Manual

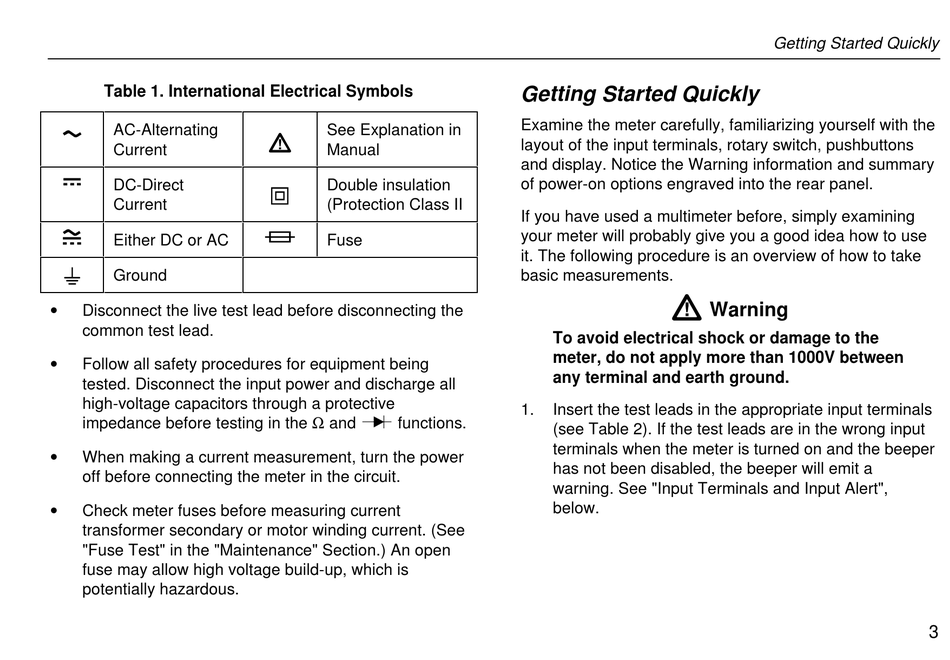

Table 1. International Electrical Symbols
AC-Alternating
Current
DC-Direct
Current
Either DC or AC
Ground
Disconnect the live test lead before disconnecting the
common test lead.
Follow all safety procedures for equipment being
tested. Disconnect the input power and discharge all
high-voltage capacitors through a protective
impedance before testing in the
When making a current measurement, turn the power
off before connecting the meter in the circuit.
Check meter fuses before measuring current
transformer secondary or motor winding current. (See
"Fuse Test" in the "Maintenance" Section.) An open
fuse may allow high voltage build-up, which is
potentially hazardous.
See Explanation in
Manual
Double insulation
(Protection Class II
Fuse
and L functions.

Getting Started Quickly

Examine the meter carefully, familiarizing yourself with the
layout of the input terminals, rotary switch, pushbuttons
and display. Notice the Warning information and summary
of power-on options engraved into the rear panel.
If you have used a multimeter before, simply examining
your meter will probably give you a good idea how to use
it. The following procedure is an overview of how to take
basic measurements.
To avoid electrical shock or damage to the
meter, do not apply more than 1000V between
any terminal and earth ground.
1. Insert the test leads in the appropriate input terminals
(see Table 2). If the test leads are in the wrong input
terminals when the meter is turned on and the beeper
has not been disabled, the beeper will emit a
warning. See "Input Terminals and Input Alert",
below.
Getting Started Quickly
Warning
3
