3) Click   E dit   t o   s et   t he   a rming   s chedule   f or   t he   a larm   i nput.   R efer   t o   T ask   2   S et   t he   A rming   S chedule
for   M otion   D etection   i n   S ection   6 .6.1.
4) Check   t he   c heckbox   t o   s elect   t he   l inkage   m ethod   t aken   f or   t he   a larm   i nput.   R efer   t o   T ask   3   S et   t he
Alarm   A ctions   f or   M otion   D etection   i n   S ection   6 .6.1.
5) You   c an   a lso   c hoose   t he   P TZ   l inking   f or   t he   a larm   i nput   i f   y our   c amera   i s   i nstalled   w ith   a   p an/tilt
unit.   C heck   t he   r elative   c heckbox   a nd   s elect   t he   N o.   t o   e nable   P reset   C alling,   P atrol   C alling   o r
Pattern   C alling.
6) You   c an   c opy   y our   s ettings   t o   o ther   a larm   i nputs.
7) Click   S ave   t o   s ave   t he   s ettings.
CONFIGURING   A LARM   O UTPUT
Steps:
1) Enter   t he   A larm   O utput   S ettings   i nterface:
Configuration>Advanced   C onfiguration>   E vents   >   A larm   O utput
2) Select   o ne   a larm   o utput   c hannel   i n   t he   A larm   O utput   d rop-­‐down   l ist.   Y ou   c an   a lso   s et   a   n ame   f or
the   a larm   o utput   ( optional).
3) The   D elay   t ime   c an   b e   s et   t o   5 sec,   1 0sec,   3 0sec,   1 min,   2 min,   5 min,   1 0min   o r   M anual.   T he   d elay
time   r efers   t o   t he   t ime   d uration   t hat   t he   a larm   o utput   r emains   i n   e ffect   a fter   a larm   o ccurs.
4) Click   E dit   t o   e nter   t he   E dit   S chedule   T ime   i nterface.   T he   t ime   s chedule   c onfiguration   i s   t he   s ame   a s
the   s ettings   o f   t he   a rming   s chedule   f or   m otion   d etection   R efer   t o   T ask   2   S et   t he   A rming   S chedule
for   M otion   D etection   i n   S ection   6 .6.1.
5) You   c an   c opy   t he   s ettings   t o   o ther   a larm   o utputs.
6) Click   S ave   t o   s ave   t he   s ettings.

10225  Westmoor  Drive,  Suite  300,  Westminster,  CO  80021  |  www.3xlogic.com  |  (877)  3XLOGIC

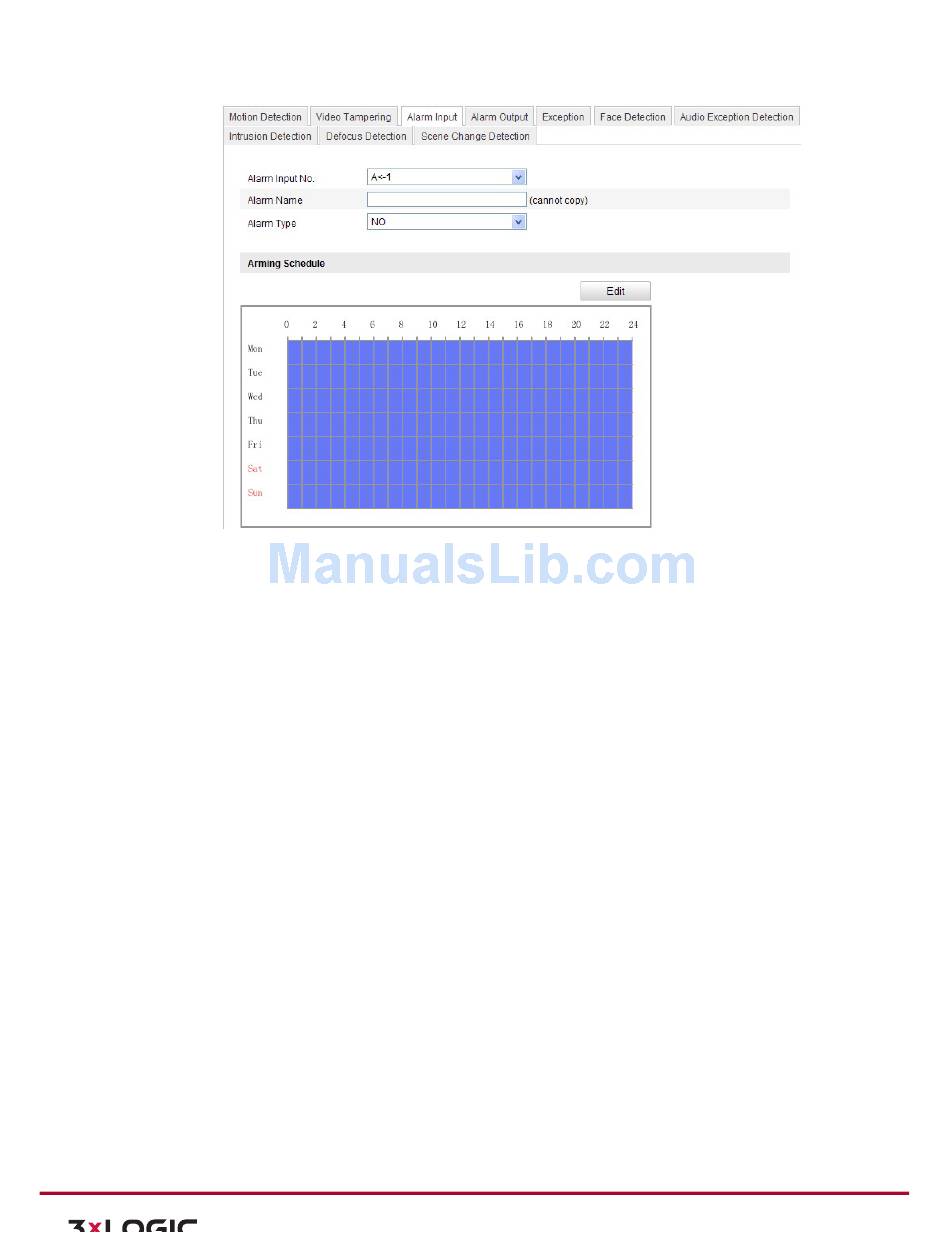

Alarm   I nput   S ettings
Figure  6-­‐41
User  Manual|  VISIX   N etwork   C amera



57
