PANEL DESCRIPTION

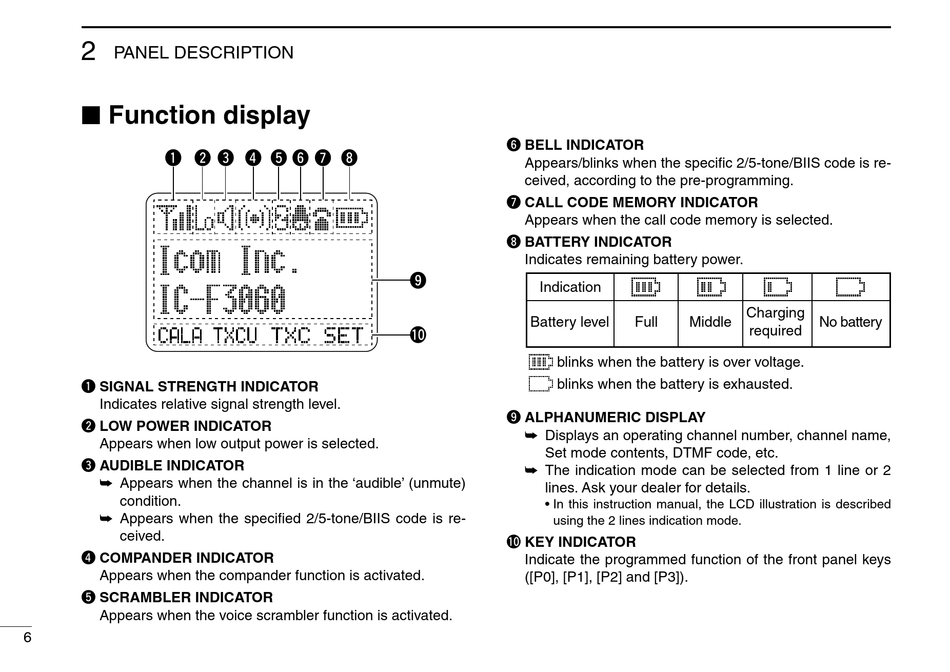

Function display

■
q w
CALA TXCU TXC
q SIGNAL STRENGTH INDICATOR
Indicates relative signal strength level.
w LOW POWER INDICATOR
Appears when low output power is selected.
e AUDIBLE INDICATOR
Appears when the channel is in the 'audible' (unmute)
➥
condition.
Appears when the specified 2/5-tone/BIIS code is re-
➥
ceived.
r COMPANDER INDICATOR
Appears when the compander function is activated.
t SCRAMBLER INDICATOR
Appears when the voice scrambler function is activated.
6
e r t y u i
SET
y BELL INDICATOR
Appears/blinks when the specific 2/5-tone/BIIS code is re-
ceived, according to the pre-programming.
u CALL CODE MEMORY INDICATOR
Appears when the call code memory is selected.
i BATTERY INDICATOR
Indicates remaining battery power.
o
Indication
Battery level
!0
blinks when the battery is over voltage.
blinks when the battery is exhausted.
o ALPHANUMERIC DISPLAY
Displays an operating channel number, channel name,
➥
Set mode contents, DTMF code, etc.
The indication mode can be selected from 1 line or 2
➥
lines. Ask your dealer for details.
• In this instruction manual, the LCD illustration is described
using the 2 lines indication mode.
!0 KEY INDICATOR
Indicate the programmed function of the front panel keys
([P0], [P1], [P2] and [P3]).
Charging
Full Middle
required
No battery
