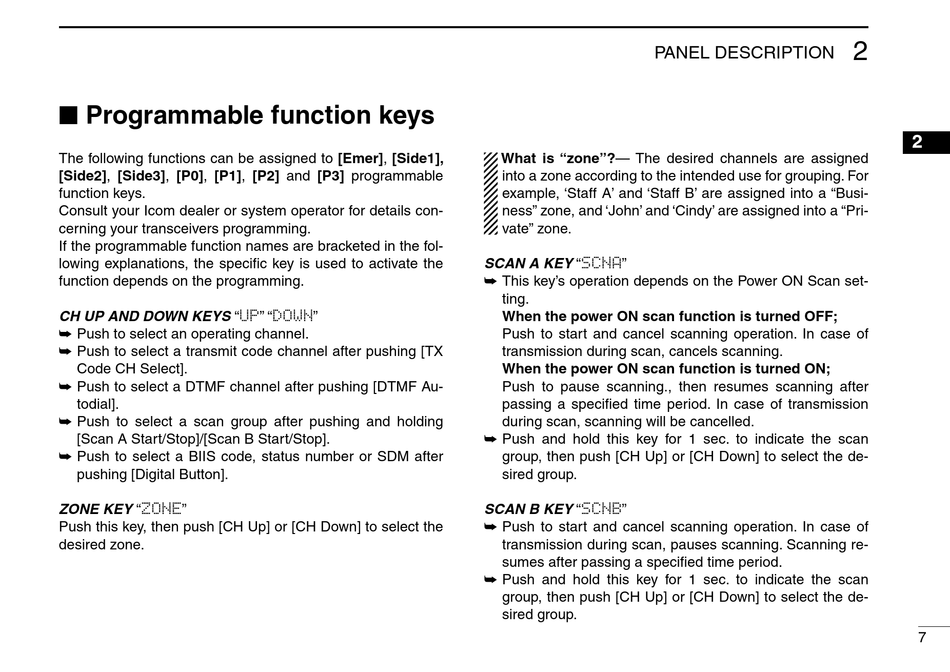

Programmable function keys

■
The following functions can be assigned to [Emer], [Side1],
[Side2], [Side3], [P0], [P1], [P2] and [P3] programmable
function keys.
Consult your Icom dealer or system operator for details con-
cerning your transceivers programming.
If the programmable function names are bracketed in the fol-
lowing explanations, the specific key is used to activate the
function depends on the programming.
CH UP AND DOWN KEYS "UP" "DOWN"
Push to select an operating channel.
➥
Push to select a transmit code channel after pushing [TX
➥
Code CH Select].
Push to select a DTMF channel after pushing [DTMF Au-
➥
todial].
Push to select a scan group after pushing and holding
➥
[Scan A Start/Stop]/[Scan B Start/Stop].
Push to select a BIIS code, status number or SDM after
➥
pushing [Digital Button].
ZONE KEY "ZONE"
Push this key, then push [CH Up] or [CH Down] to select the
desired zone.
PANEL DESCRIPTION
What is "zone"?— The desired channels are assigned
into a zone according to the intended use for grouping. For
example, 'Staff A' and 'Staff B' are assigned into a "Busi-
ness" zone, and 'John' and 'Cindy' are assigned into a "Pri-
vate" zone.
SCAN A KEY "SCNA"
This key's operation depends on the Power ON Scan set-
➥
ting.
When the power ON scan function is turned OFF;
Push to start and cancel scanning operation. In case of
transmission during scan, cancels scanning.
When the power ON scan function is turned ON;
Push to pause scanning., then resumes scanning after
passing a specified time period. In case of transmission
during scan, scanning will be cancelled.
Push and hold this key for 1 sec. to indicate the scan
➥
group, then push [CH Up] or [CH Down] to select the de-
sired group.
SCAN B KEY "SCNB"
Push to start and cancel scanning operation. In case of
➥
transmission during scan, pauses scanning. Scanning re-
sumes after passing a specified time period.
Push and hold this key for 1 sec. to indicate the scan
➥
group, then push [CH Up] or [CH Down] to select the de-
sired group.
