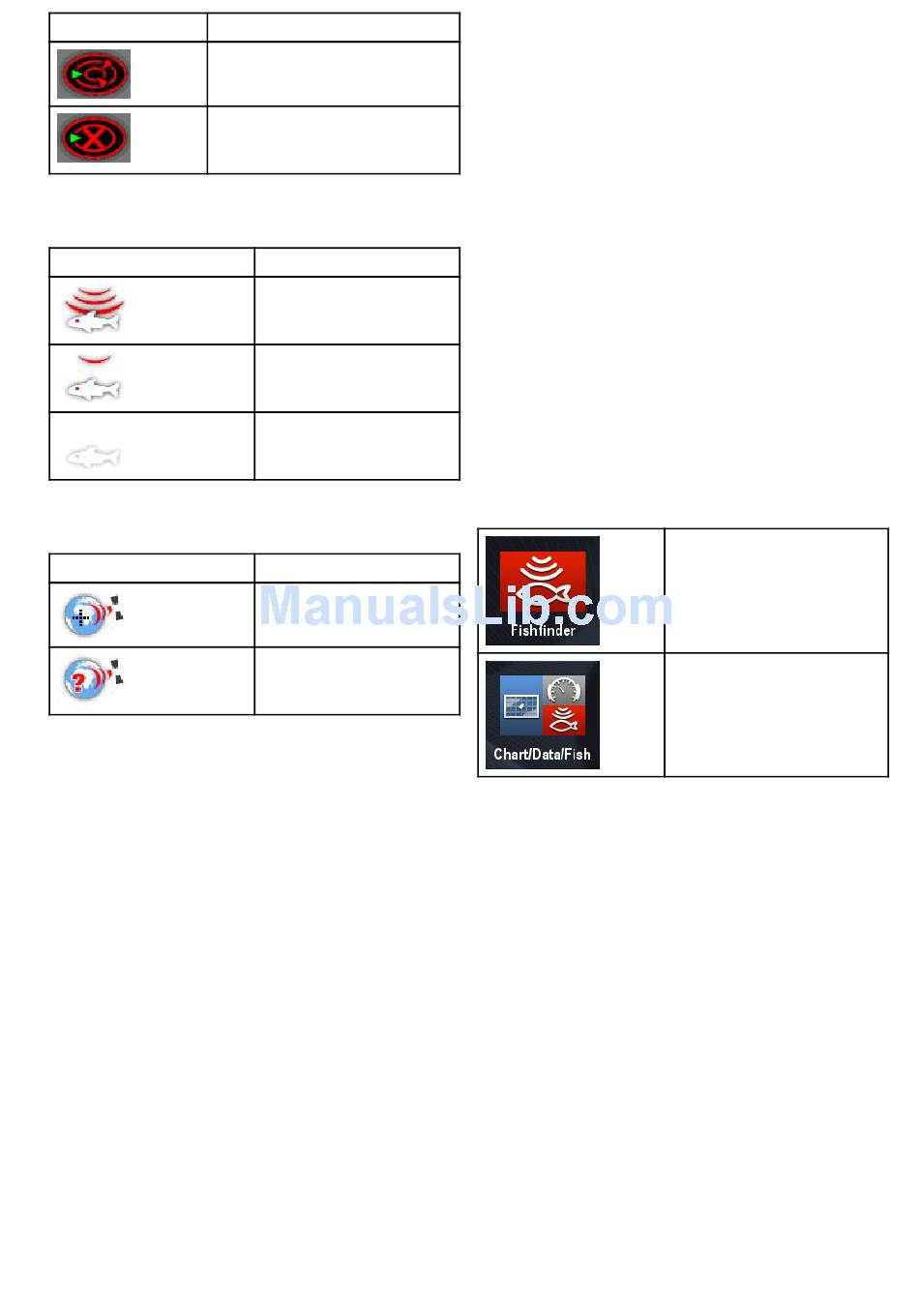

Symbol Description
AIS unit is connected and switched
on, but has active alarms.
AIS unit is connected and switched
on, but the dangerous and lost alarm
is disabled.
Sonar status symbols
The sonar status is indicated in the databar.
Symbol
GPS status symbols
The GPS receiver status is indicated in the databar.
Symbol
Getting started
Description
Symbol animated: the sonar
module is connected and
transmitting.
Symbol static: the sonar
module is connected but not
transmitting.
Symbol greyed-out: the sonar
module is not connected, or
is not detected.
Description
A GPS receiver is connected
and has obtained a fix.
A GPS receiver is not
connected, or cannot obtain
a fix.

6.10 Pages

Pages are made up of 1 to 4 panes that are used
to display applications on your multifunction display
(MFD).
Pages are accessed using the icons on the
Homescreen.
• You can create up to 2 application panes per page
using an MFD that has a screen size of 7 inches
or less.
• You can create up to 4 application panes per page
using an MFD that has a screen size of greater
than 7 inches.
• MFDs with a screen size of 7 inches or less can
view pages with more than 2 application panes
but only if they are sharing the Homescreen of an
MFD which is capable of creating those pages.
Pages can be customized, enabling you to group
your applications into different pages, each designed
for a specific purpose. For example, you could
have a page that includes the chart and fishfinder
applications, suitable for fishing, and another page
that includes the chart and data applications, which
would be suitable for general sailing.
You can also define the layout for each page, which
determines how the applications are arranged on
the screen.
Setting the Power-up page
You can setup your multifunction display to show a
page instead of the Homescreen at power up.
Form the Homescreen:
1. Select Customize.
2. Select Display Preferences.
3. Select Starting page.
A list of options is displayed
• Homescreen — Homescreen is displayed after
power-up.
• Last page — The page last viewed is displayed
after power-up
• Choose page — The page you select will be
displayed after power-up
Icon for a page featuring a single
application.
Icon for a page featuring multiple
applications.
