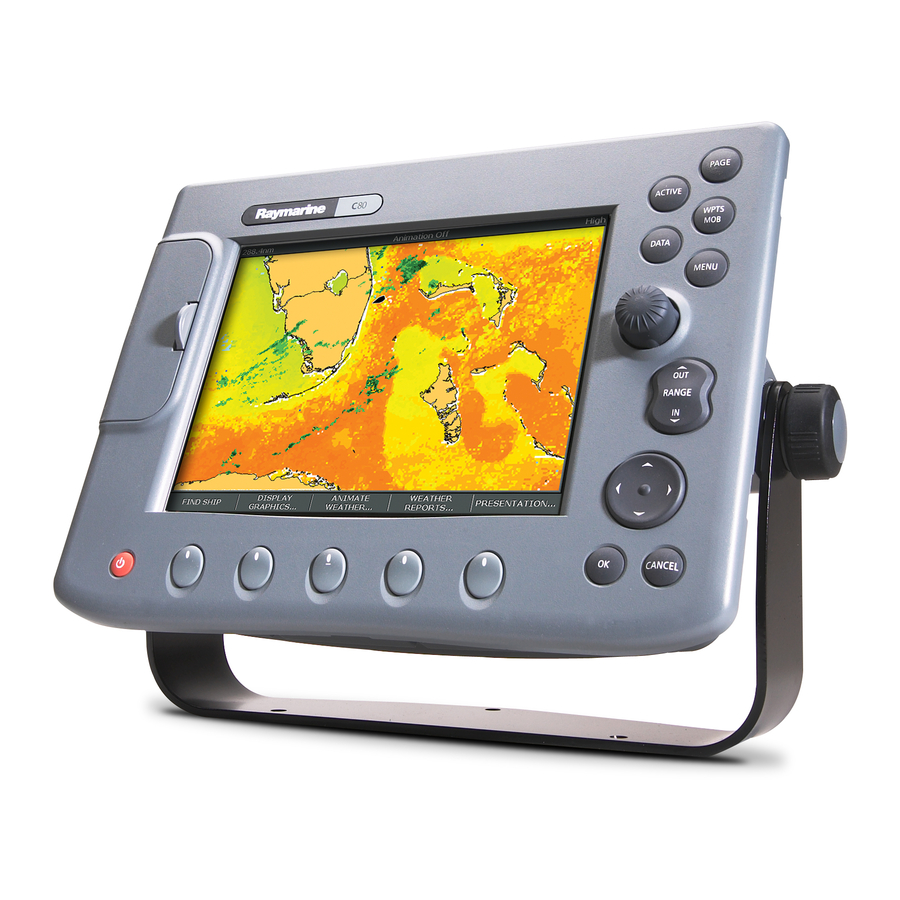

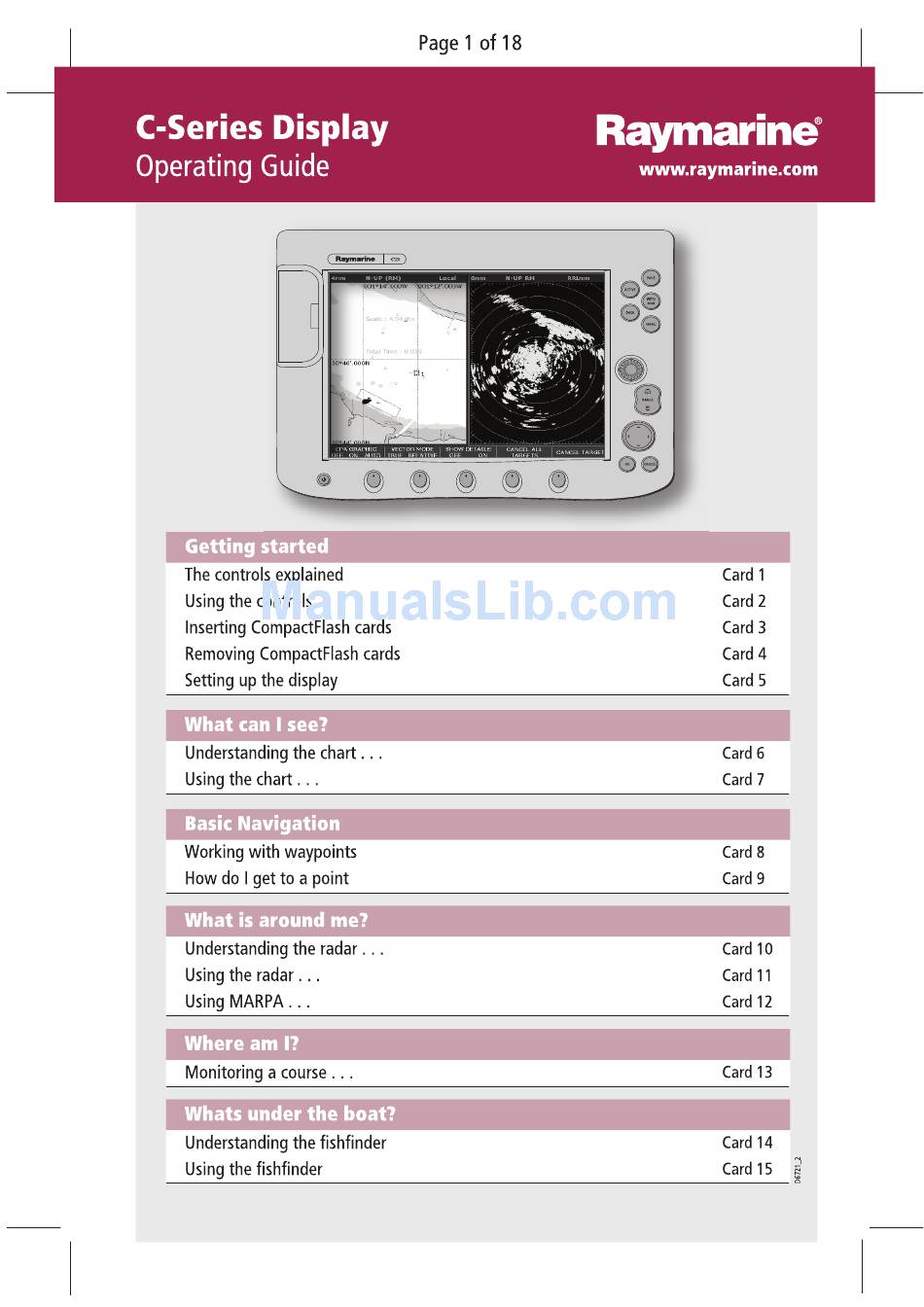

  • Page 2 Page2 of 18 WARNING: NAVIGATION AID This unit is only an aid to navigation. Its accuracy can be affected by many factors, including equipment failure or defects, environmental conditions, and improper handling or use. It is the User's responsibility to exercise common prudence and navigational judgement.

  • Page 3: Getting Started

    Press and hold MENU to display help information for the currently displayed soft keys. For more information on the controls refer to Chapter 2 - General Operation and System Set Up of the C-Series Display Reference Manual WARNING: NAVIGATION AID This unit is only an aid to navigation.

  • Page 4: Using The Controls

    Press and hold MENU to display help information for the currently displayed soft keys. For more information on the controls refer to Chapter 2 - General Operation and System Set Up of the C-Series Display Reference Manual Page 4 of 18...

  • Page 5: Inserting Compactflash Cards

    Groove More information... For more information on using CompactFlash cards refer to Chapter 2 - General Operation & Sysstem Set Up of the C-Series Reference Manual. Page 5 of 18 To insert a card, refer to the illustration, and: 1. Check that you are using the correct type of card.

  • Page 6: Removing Compactflash Cards

    Getting Started Removing CompactFlash cards Card No. 4 How do I remove a CompactFlash card? ... with the unit powered down To remove a card with the unit powered down, refer to the illustration and: 1. Open the chart card door. 2.

  • Page 7: Setting Up The Display

    The active window is light to next bordered in red. window. More information- Refer to the C-Series Display Reference Manual: Chapter 1 - Using the Display Chapter 2 - General Operation and System Set Up Page 7 of 18 Page set...
  • Page 8 Cartography Setup and then toggle the appropriate feature to ON or OFF. For more information on setting up your display refer to: More information . . . Chapter 4 - Using the Chartplotter of the C-Series Reference Manual Page 8 of 18 FIND SHIP...
  • Page 9 Autorange (AR), using the PRESENTATION soft keys. For more information on setting up your display refer to: More information ... Chapter 4 - Using the Chartplotter of the C-Series Reference Manual Page 9 of 18 FIND SHIP FIND SHIP GOTO...

  • Page 10: Basic Navigation

    GO TO WAYPOINT OPTIONS... Press Press More information ... For more information on waypoints refer to: Chapter 3 - Working with Waypoints of the C-Series Reference Manual Page 10 of 18 WAYPOINT AT WAYPOINT AT WAYPOINT AT CURSOR VESSEL POSITION ...
  • Page 11 If you place a waypoint in the incorrect position, press UNDO WAYPOINT. More information ... For more information on routes refer to: Chapter 4 - Using the Chartplotter of the C-Series Reference Manual Page 11 of 18 SHOW/HIDE FOLLOW ROUTE...
  • Page 12 More information ... For more information on Radar and how to use it refer to: Chapter 5 - Using the Radar of the C-Series Display Reference Manual Page 12 of 18 TARGET...
  • Page 13 How can the radar help me avoid a collision? You can set up your C-Series Display to sound an alarm when anything comes within a pre-set range of the boat. This will allow you to take any necessary action to avoid a collision.
  • Page 14 MARPA LIST... Press Tracked targets with data listed. More information... For more information on MARPA functions refer to: Chapter 5 - Using the radar of the C-Series Reference Manual Page 14 of 18 MONITOR ACQUIRE TARGET MARPA LIST IN ZONES Press up/down to select option.
  • Page 15 On course Boat on center line. Zero XTE More information... For more information on monitoring a course, refer to: Chapter 7 - Using the CDI of the C-Series Reference Manual Page 15 of 18 FIND SHIP GOTO ROUTES Relative Motion GOTO…...
  • Page 17 Select ON, for zoom image only. Select SPLIT, for zoom and fishfinder image. Selecting manual zoom range (xR) is described in the C-Series Reference Manual More information For more information on using the fishfinder refer to: Chapter 3 - Working with Waypoints...
  • Page 18 Raymarine Ltd. Raymarine Inc. Anchorage Park 22 Cotton Road, Unit D Portsmouth, Hampshire Nashua, NH 03063-4219 England PO3 5TD +44 (0)23 9269 3611 603-881-5200 +44 (0)23 9269 4642 fax 603-864-4756 fax www.raymarine.com www.raymarine.com Page18 of 18 D6826_1...
