6.6 Multi-Touch gestures

Raymarine a Series and gS Series multifunction
displays support multi-touch.
Multi-touch means that the display is capable of
recognizing multiple simultaneous touch inputs.
This means that you can use 2 or more fingers on
the screen at the same time to perform multi-touch
gestures.

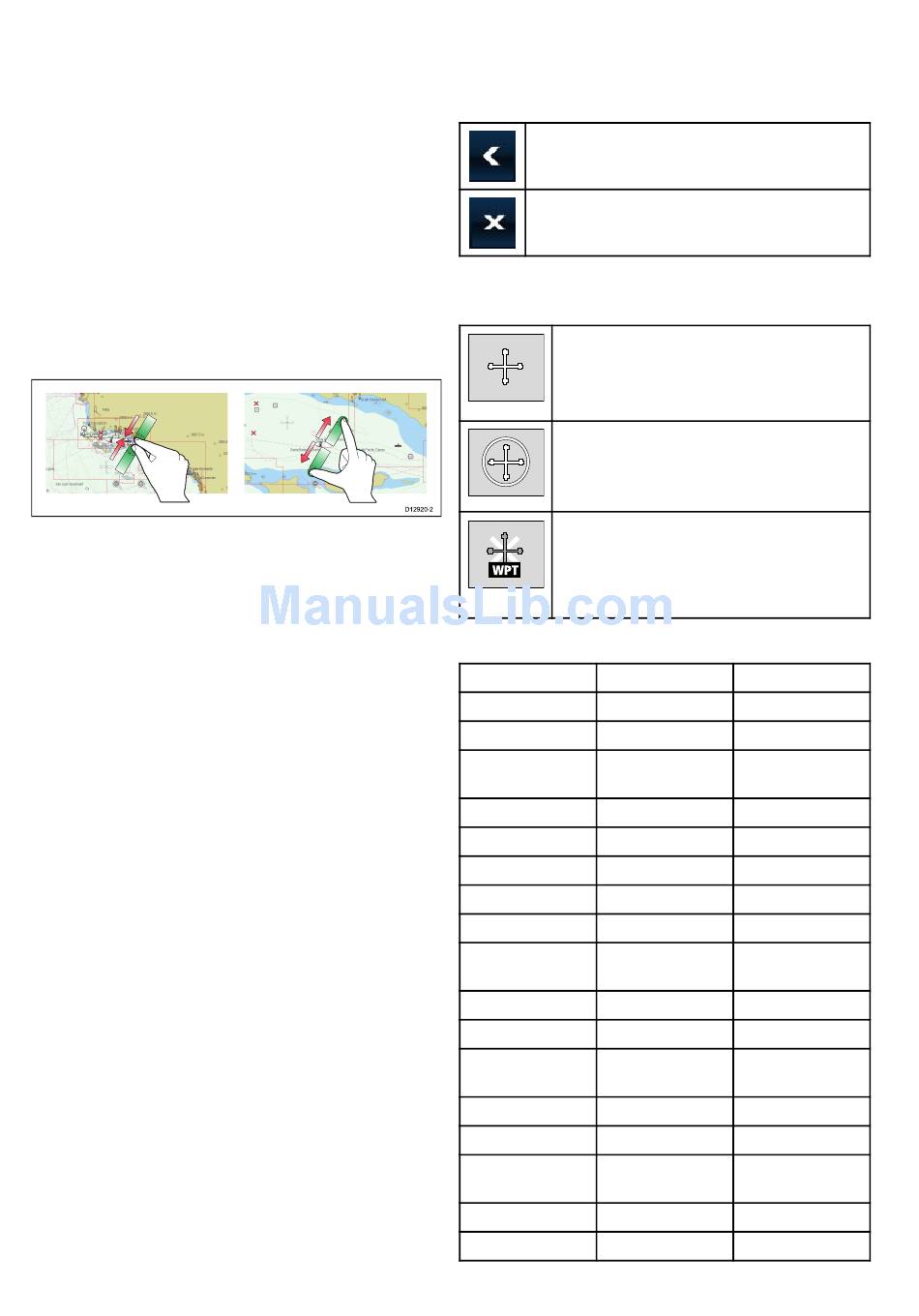

Pinch to Zoom
The pinch to zoom gestures can be performed on
multifunction displays that support multi-touch.
Pinch to zoom consists of 2 actions:
• Move 2 fingers apart to zoom in.
• Move 2 fingers together to zoom out.
Pinch to Zoom can be used in the following
applications:
• Chart application.
• Weather application.
72

6.7 Touch icons

Touchscreen multifunction displays can use
the BACK and CLOSE icons to move between
the different levels of menus available in each
application.
Back — go back one level (same effect as pressing
the BACK button).
Close — close all open menus (same effect as
pressing the MENU button).
Using the cursor
The cursor is used to move around the screen.
The cursor appears on the screen as a white
cross.
If the cursor has not been moved for a short
period of time, it changes to a circle with a cross
in it, to make it easier to locate on the screen.
D12920-2
The cursor is context-sensitive. When it is
placed over an object such as a waypoint or
chart feature, it changes color and a label
or information associated with the object is
displayed.
List of cursor labels
Label
A/B
AIS
COG
CTR
FLT
GRD
HDG
MARPA
MOB
POS
RTE
SHM
TIDE
TRACK
VRM/EBL
WIND
WPT
Feature Application
Ruler line Chart
AIS target Chart
Course Over Chart
Ground vector
Center of radar Radar
Floating EBL/VRM Radar
Radar
Guard zone
Heading vector Chart
MARPA target Radar
Man Over Board Chart, Radar
marker
Vessel's position Chart
Route leg Chart
Radar
Ship's Heading
Marker
Tide indicator Chart
Track line Chart
VRM and EBL, 1 Radar
or 2
Wind indicator Chart
Waypoint Chart, Radar
a Series / c Series / e Series installation instructions
