Keyboard Troubleshooting

START
Perform external keyboard cheek
(Procedure 1)
Does the external
keyboard function
ok?
No
Perform diagnostic check
(Procedure 2)
Yes
Keyboard is not
faulty. Continue
Was a keyboard problem
No
troubleshooting
detected?
refer to Figure 2.1
Yes
Perform connector and
replacement check (Procedure 3)
Replace system board
END

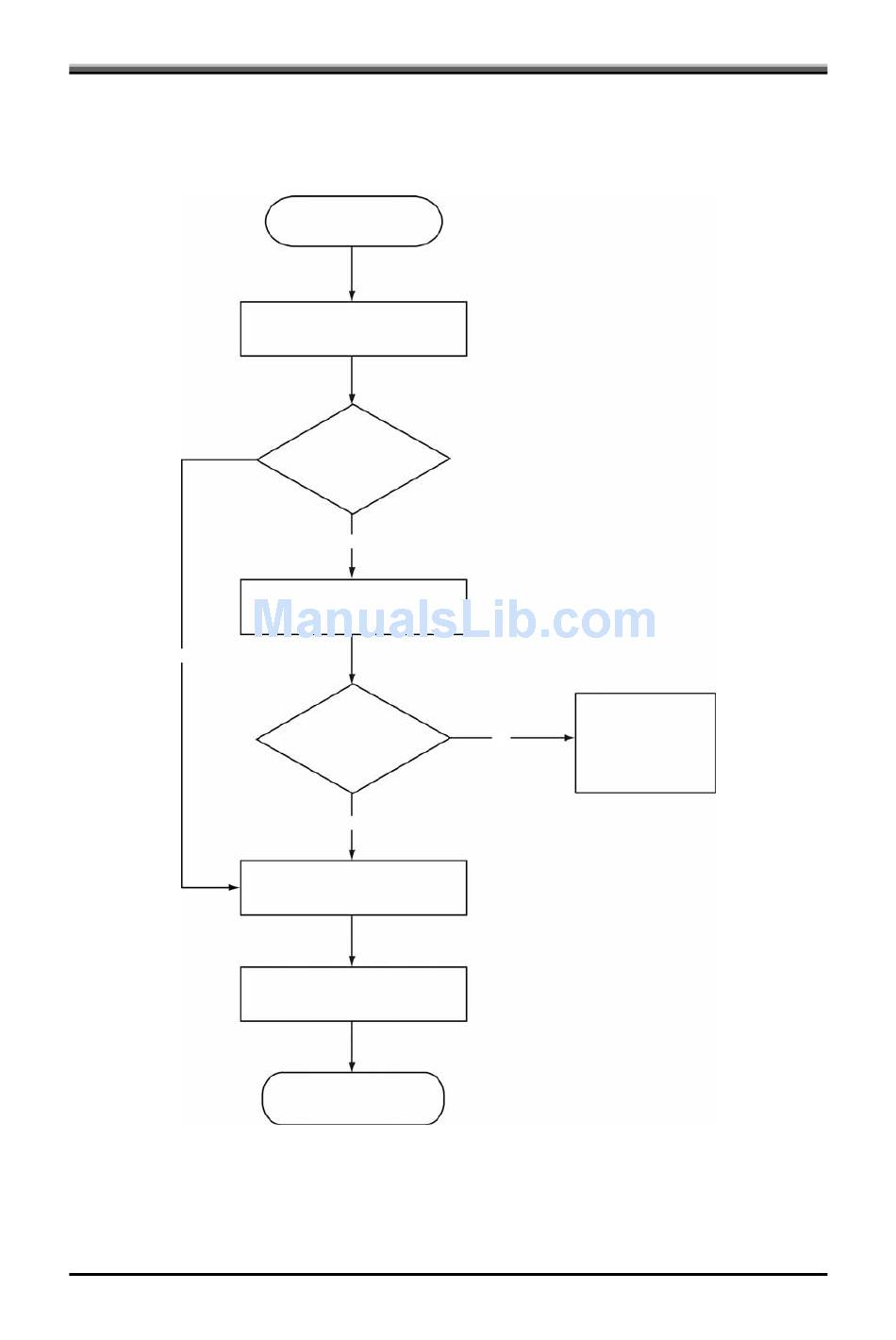

Figure 6-4 Keyboard troubleshooting process
