Handicapped norm LED : indicate the status of doorphone :
Green LED : Ringing.
•
• Blue LED : In call
Red LED : Door opening
•

2. Physical install

2.1. Opening the door phone

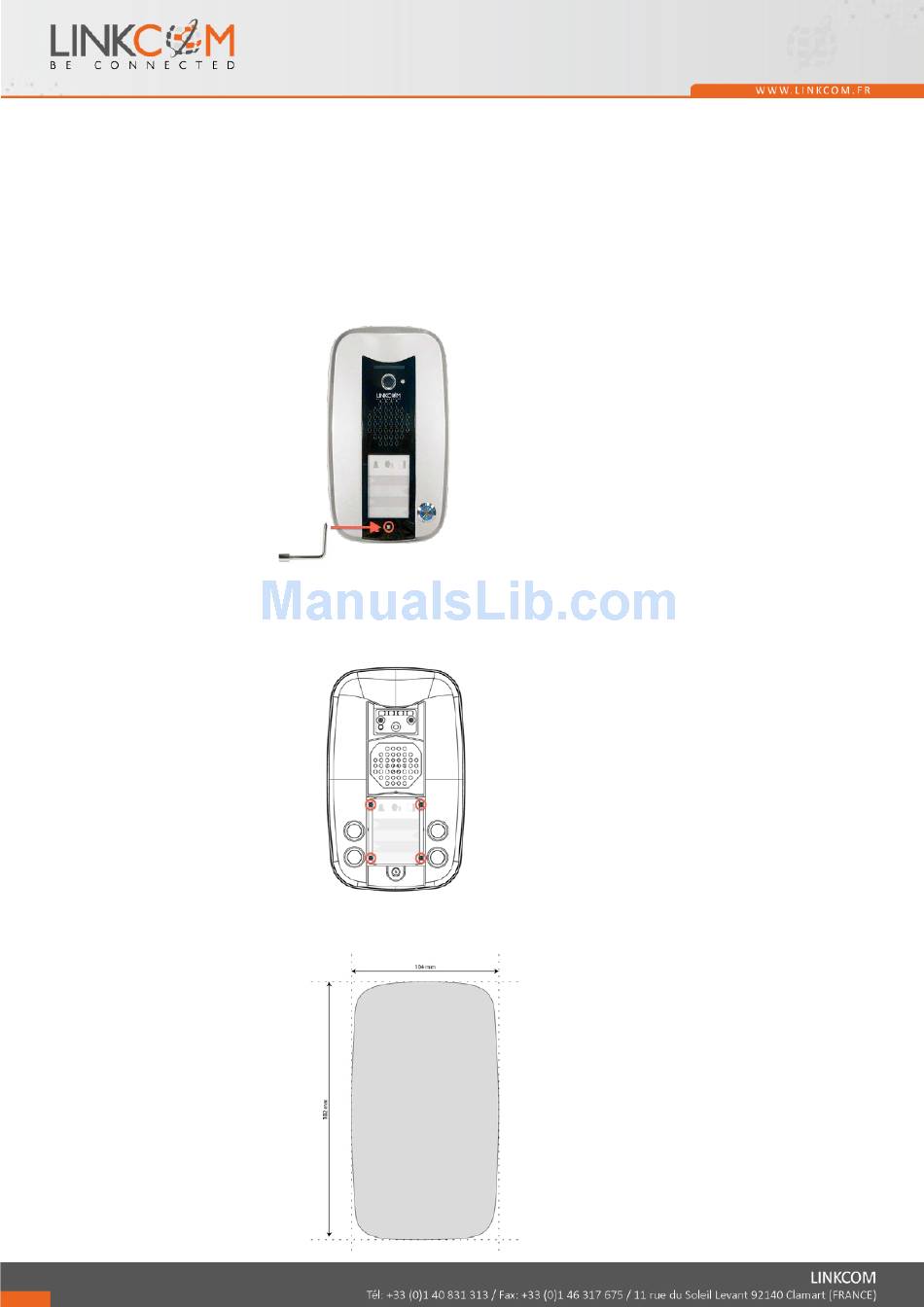

Using the tool provided, unscrew the screw, as shown below and remove the cover:

2.2. Dismounting of nameplate

Remove the 4 screws of the transparent protection. Make the appropriate changes on the nameplate and
mount the protection using 4 screws.

3. Wall mounting

3.1. Dimension

Height: 182mm
Width: 104mm
Depth:: 22mm
