1. Physical install

1.1. Opening the door phone

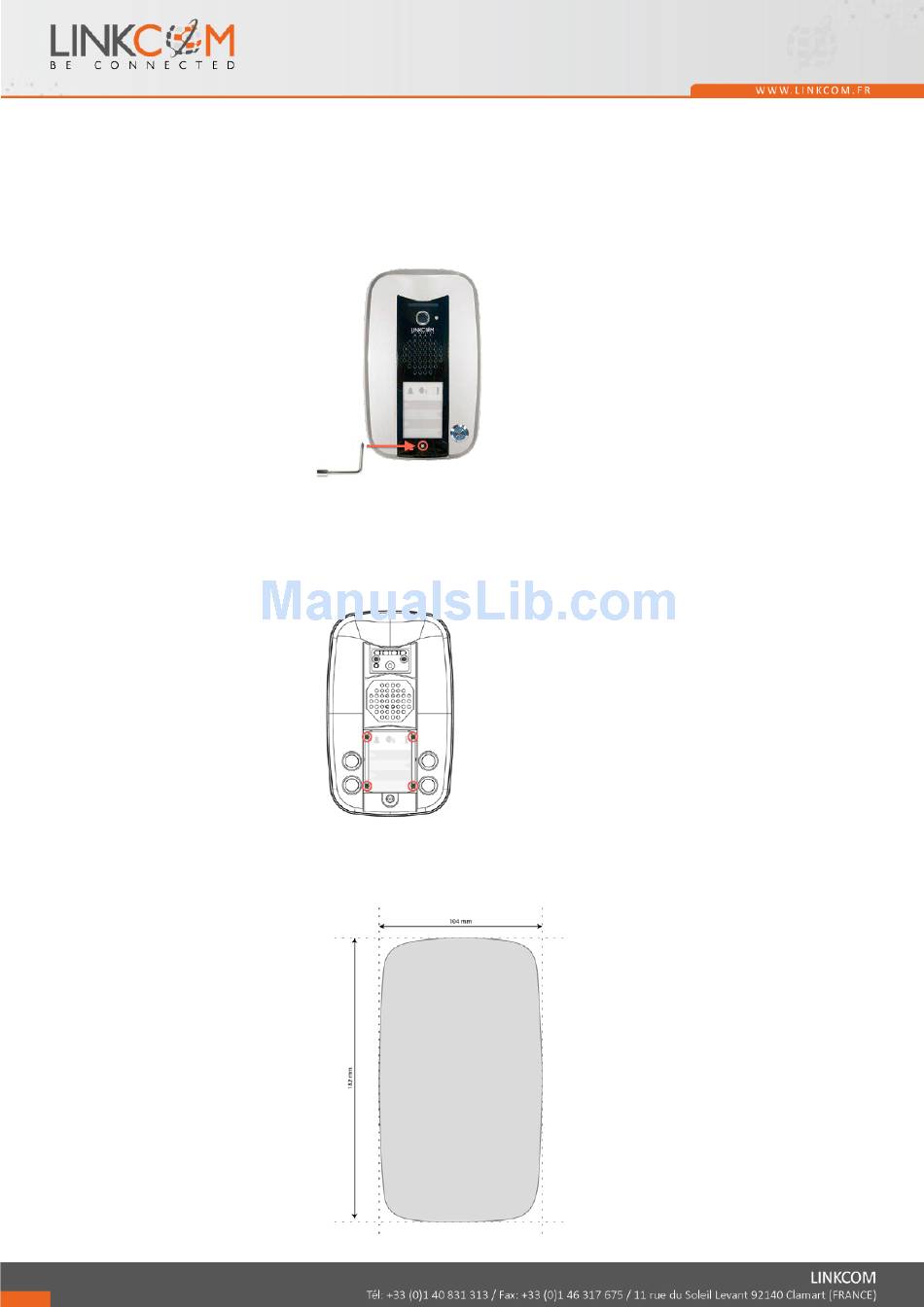

Using the tool provided, unscrew the screw, as shown below and remove the cover:

1.2. Dismounting of nameplate

Remove the 4 screws of the transparent protection. Make the appropriate changes on the nameplate and
mount the protection using 4 screws.

2. Wall mounting

2.1. Dimension

Height: 182mm
Width: 104mm
Depth:: 22mm
p.3 | 23
