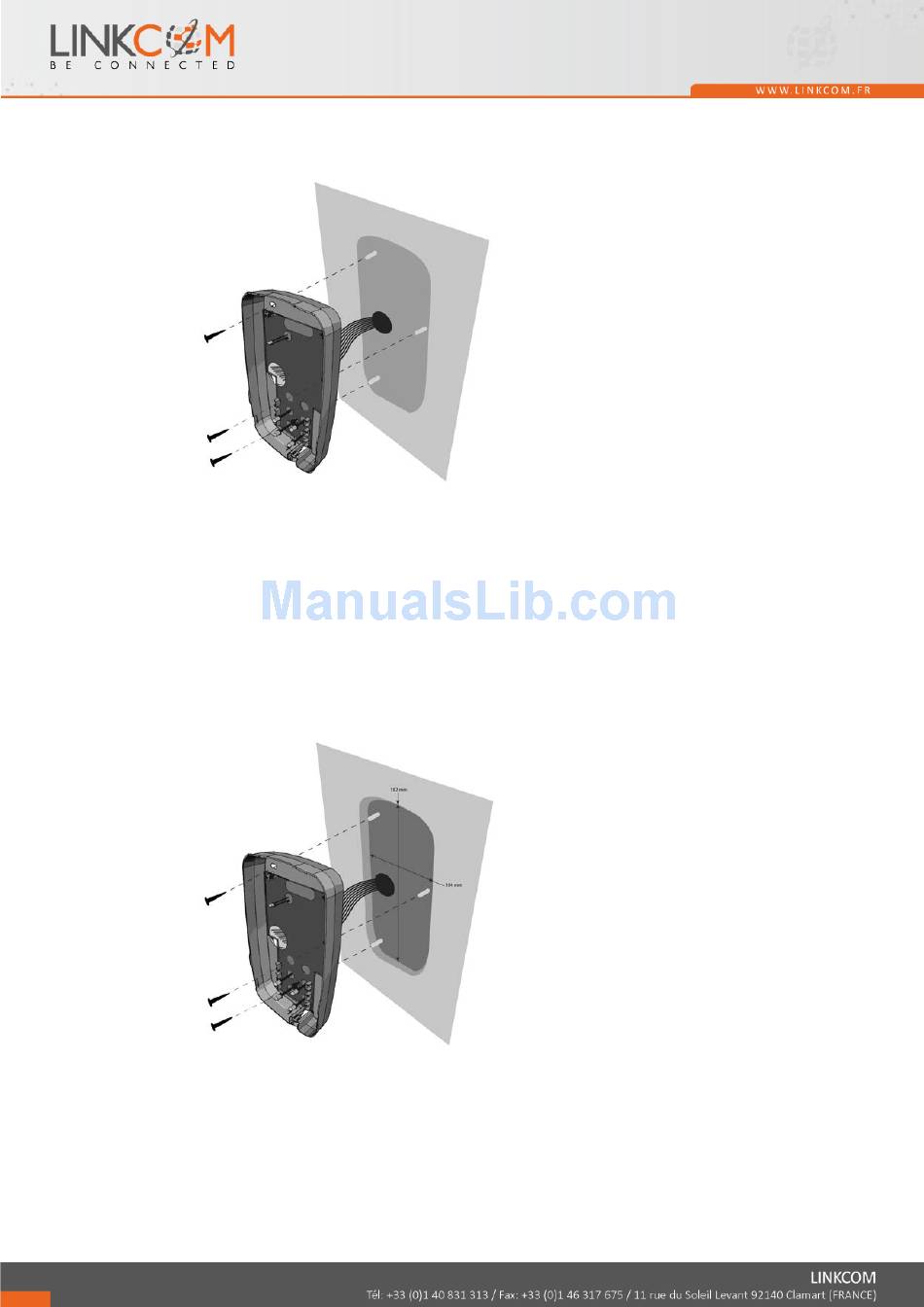

3.2. Surface mounting
Using 3 screws and plugs, fix the doorphone to the wall:
3.3. Flush mounting
The dimensions of the flush part are:
Height: 182mm
•
Width: 104mm
•
Depth: 22mm
•
Using 3 screws and plugs, fix the doorphone to the wall:
p.5 | 23
