Installing the Projection Lens

Before installing or replacing the lens, be sure that power is switched off and power
cord is disconnected from the projector.
Procedure

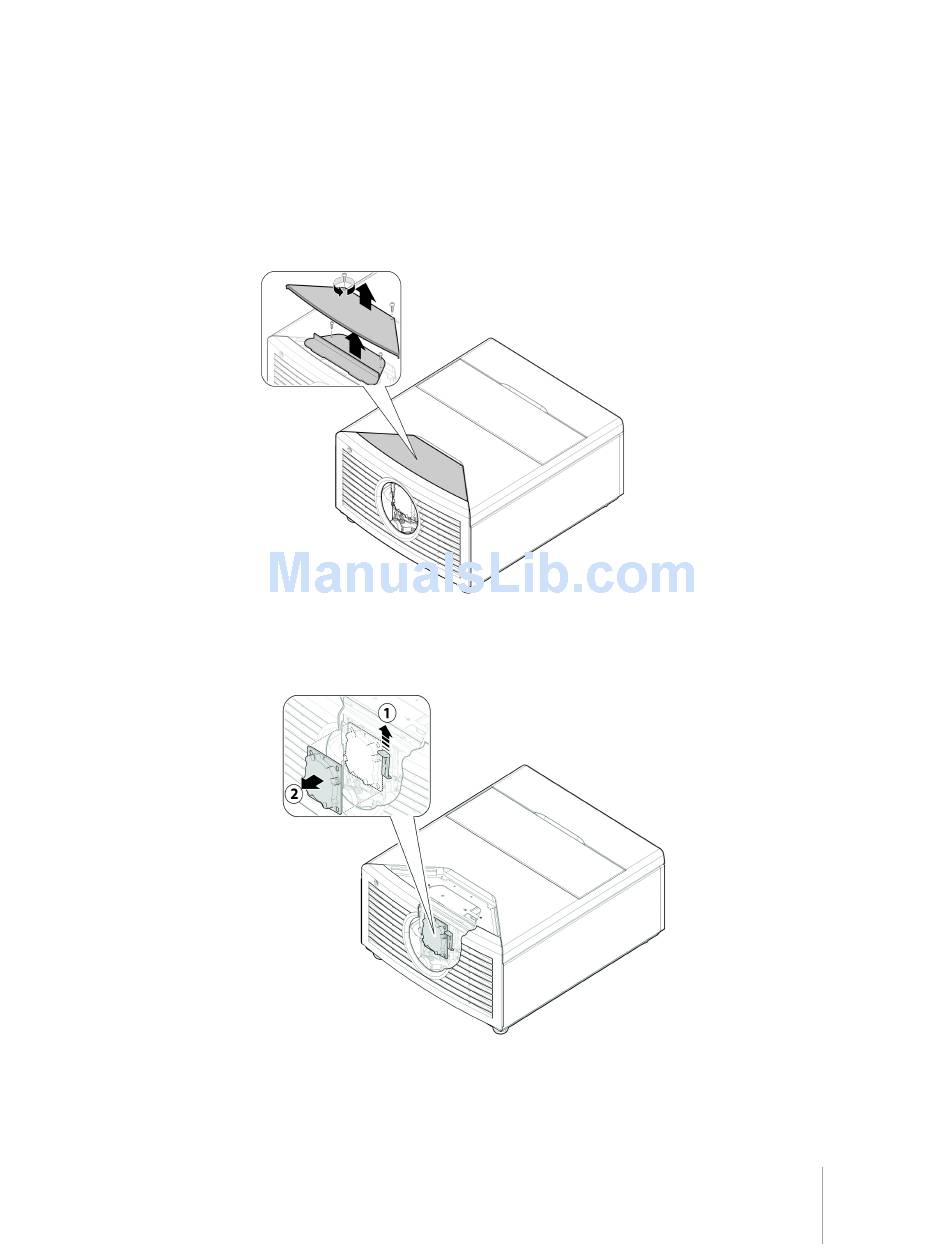

Unscrew the 2 screws and lift up the plastic lens door.
Unscrew the 2 screws and lift up the metallic lens door.
Pull the level up to release the lock (1)
Remove the lens cap (2)
Install the lens into position (1)
Push the release lever down to lock the lens in place (2)
3 Installation SIRIO 14
