Summary of Contents for Sim2 SuperCube

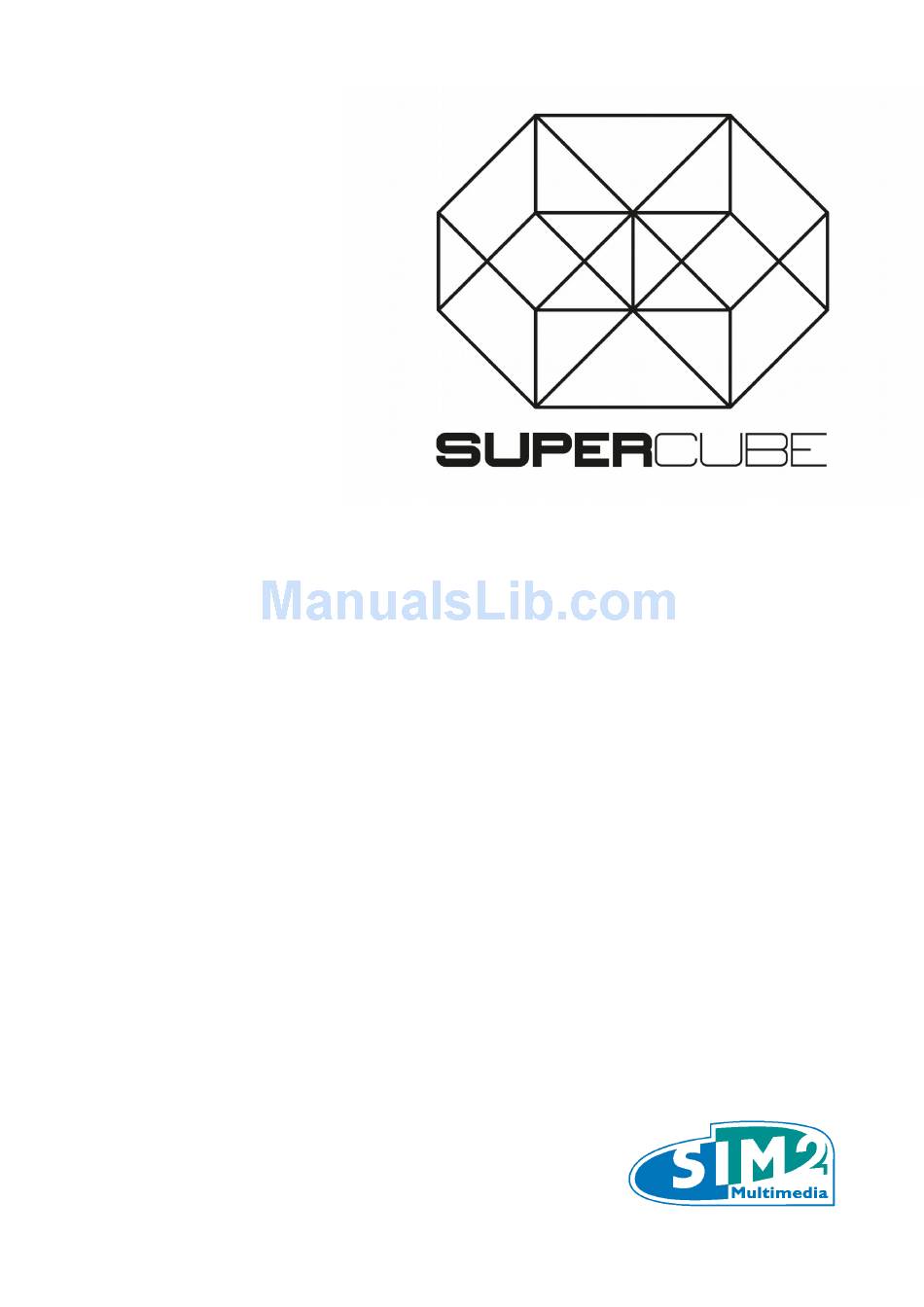

  • Page 1 User Guide...
  • Page 2 Copyright This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author. © Copyright 2015 Disclaimer The information in this document is subject to change without notice.

  • Page 3: Important Safety Information

    Important Safety Information Important: It is strongly recommended that you read this section carefully before using the projector. These safety and usage instructions will ensure that you enjoy many years of safe use of the projector. Keep this manual for future reference. Symbols Used Warning symbols are used on the unit and in this manual to alert you of hazardous situations.
  • Page 4 Projector Installation Notice Place the projector in a horizontal position The tilt angle of the projector should not exceed 15 degrees, nor should the projector be installed in any way other than the desktop and ceiling mount, otherwise lamp life could decrease dramatically, and may lead to other unpredictable damages.
  • Page 5 Verify Installation Location To supply power, the 3-blade (with earthing lead) socket should be used to ensure proper grounding and equalized ground potential for all of the equipment in the Projector System. The power code provided with the Projector should be used. In case of any missing item, other qualified 3-blade (with earthing lead) power cord can be used as substitution;...
  • Page 6 Power Safety Only use the supplied power cord. Do not place anything on the power cord. Place the power cord where it will not be in the way of foot traffic. Remove the batteries from the remote control when storing or not in use for a prolonged period. Replacing the Lamp Replacing the lamp can be hazardous if done incorrectly.

  • Page 7: Main Features

    Main Features Compatible with all major video standards including NTSC, PAL, and SECAM. A high brightness rating allows for presentations in daylight or in lit rooms. Supports resolutions up to UXGA at 16.7 million colors to deliver crisp, clear images. Flexible setup allows for front, rear projections.

  • Page 8: Table Of Contents

    Table of Contents GETTING STARTED ................................1 ................................1 ACKING HECKLIST OPTIONAL ACCESSORIES: ............................1 ............................... 2 IEWS OF ROJECTOR ARTS Front-right View ................................2 Rear view ..................................3 Bottom view ................................... 5 ..............................6 EMOTE ONTROL ARTS ..........................8 EMOTE ONTROL PERATING...
  • Page 9 HDMI Q & A ..................................43 SPECIFICATIONS ................................44 ................................. 44 PECIFICATIONS ........................45 ROJECTION ISTANCE VS ROJECTION Projection Distance and Size Table ......................... 45 ................................ 46 IMING ABLE ..............................48 ROJECTOR IMENSIONS REGULATORY COMPLIANCE ............................49 FCC W .................................. 49 ARNING ....................................

  • Page 10: Getting Started

    Caution: Avoid using the projector in dusty environments. Note: If you need low profiles cables connectors that fit within the compartment on the back of the projector, refer to your local dealer or directly to SIM2 distributor – 1 –...

  • Page 11: Views Of Projector Parts

    Views of Projector Parts Front-right View ABEL ESCRIPTION EE PAGE IR receiver Receive IR signal from remote control Lens Projection Lens Focus ring Focuses the projected image Zoom ring Enlarges the projected image Important: Ventilation openings on the projector allow for good air circulation, which keeps the projector lamp cool.

  • Page 12: Rear View

    ESCRIPTION EE PAGE AC IN Connect the POWER cable 3D SYNC Connect the SIM2 3D glasses RF transmitter HDMI 2 Connect the HDMI cable from a HDMI device HDMI 1 Connect the HDMI cable from a HDMI device Connect the USB cable from a computer...
  • Page 13 Note: To use this feature, you must plug in the connector before turn on/off the projector. Screen controllers are supplied and supported by screen manufacturers. Do not use this jack for anything other than intended use. Warning: As a safety precaution, disconnect all power to the projector and connecting devices before making connections.

  • Page 14: Bottom View

    Bottom view ABEL ESCRIPTION EE PAGE Contact your dealer for information on mounting the projector on a Ceiling support holes ceiling Tilt adjustor Rotate adjuster lever to adjust angle position. Note: When installing, ensure that you use only UL Listed ceiling mounts. For ceiling installations, use approved mounting hardware and M6 screws.

  • Page 15: Remote Control Parts

    Remote Control Parts Important: 1. Avoid using the projector with bright fluorescent lighting turned on. Certain high-frequency fluorescent lights can disrupt remote control operation. 2. Be sure nothing obstructs the path between the remote control and the projector. If the path between the remote control and the projector is obstructed, you can bounce the signal off certain reflective surfaces such as projector screens.
  • Page 16 ABEL ESCRIPTION EE PAGE Turns the projector off. Displays the PC source selection. Video/S-Video Displays the VIDEO source selection. Navigates and changes settings in the OSD. Keystone correction. EXIT Enters and confirms settings in the OSD. Navigates and changes settings in the OSD. Navigates and changes settings in the OSD.

  • Page 17: Remote Control Operating Range

    ABEL ESCRIPTION EE PAGE Auto Auto adjustment for frequency, phase, and position. Source Displays the source selection bar. Keystone Displays the keystone setting bar. Navigates and changes settings in the OSD. Menu Opens the OSD. HDMI Toggles the input sources for display between HDMI sources. Turns the projector on.

  • Page 18: Inserting The Remote Control Batteries

    Inserting the Remote Control Batteries Remove the battery compartment cover by sliding the cover in the direction of the arrow. Insert the battery with the positive side facing up. Replace the cover. Caution: 1. Only use AAA batteries (Alkaline batteries are recommended). 2.

  • Page 19: Setup And Operation

    ETUP AND PERATION Starting and Shutting down the Projector Connect the power cord to the projector. Connect the other end to a wall outlet. POWER LED on the projector light. Turn on the connected devices. Ensure the POWER LED not a flashing.
  • Page 20 When the “PQWER OFF” message appears, press the POWER button. The projector turns off. Caution: Do not unplug the power cord until the POWER LED stops flashing–indicating the projector has cooled down. – 11 –...

  • Page 21: Ceiling Mounting Operation

    Ceiling Mounting Operation In order to mount the SUPERCUBE projector to the ceiling with a ceiling bracket, please observe the following instruction: Fix on the bottom of the projector the back plate of the ceiling mounting bracket. Fasten the mounting bracket to the ceiling, accordingly to its producer instructions.

  • Page 22: Adjusting The Projector Level

    Adjusting the Projector Level Take note of the following when setting up the projector: The projector table or stand should be level and sturdy. Position the projector so that it is perpendicular to the screen. Ensure the cables are in a safe location. To adjust the angle of the picture, turn the tilt-adjuster clockwise or anticlockwise until the desired angle has been achieved.

  • Page 23: Adjusting The Vertical Image Position

    Adjusting the vertical image position Rotate the mechanical register with a coin, or other suitable tool, in order to optically adjust the vertical image position. The display position can Lens shift adjustable range be shifted upward up to 9% and down to 5% Shift range elevation of the display.

  • Page 24: Adjusting The Zoom, Focus And Keystone

    Adjusting the Zoom, Focus and Keystone Use the Image-zoom control (on the projector only) to resize the projected image and screen size Use the Image-focus control (on the projector only) to sharpen the projected image Use the RC via OSD (keystone feature) to correct image-trapezoid (wider top or bottom)

  • Page 25: On-Screen Display (Osd) Menu Settings

    (OSD) M CREEN ISPLAY ETTINGS OSD Menu Controls The projector has an OSD that lets you make image adjustments and change various settings. Navigating the OSD You can use the remote control cursor buttons to navigate and make changes to the OSD. 1.

  • Page 26: Setting The Osd Language

    Setting the OSD Language Set the OSD language to your preference before continuing. 1. Press the MENU button. Press the cursor ◄► button to navigate to SETUP>>Basic. 2. Press the cursor ▲▼ button until Language is highlighted. 3. Press the cursor ◄► button until the language you want is selected. 4.

  • Page 27: Osd Menu Overview

    OSD Menu Overview Use the following illustration to quickly find a setting or determine the range for a setting. Main Menu Sub Menu Settings Presentation, Movie, Vivid , Bright, Picture >>Basic Display Mode Game, User1 Brightness 0 ~ 100 Contrast -50 ~ 50 Color -50 ~ 50...
  • Page 28 Main Menu Sub Menu Settings English, Français, Deutsch, Español, Português, 簡体中文, 繁體中文, Italiano, Setup >> Basic Language Norsk, Svenska, Nederlands, Русский, Polski, Suomi, Dansk, 한국어, 日本語 Front Table / Front Ceiling / Rear Table Projection / Rear Ceiling Auto Power On Off / On Auto Power Off Disable / 5 / 10 / 15 / 20 / 25 / 30min...

  • Page 29: Picture>>Basic Menu

    PICTURE>>Basic Menu Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the PICTURE>>Basic menu. Press the cursor ▲▼ button to move up and down in the PICTURE>>Basic menu. Press ◄► to change values for settings. ESCRIPTION Display Mode Press the cursor ◄►...

  • Page 30: Picture>>Advanced Menu

    PICTURE>>Advanced Menu Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the PICTURE>>Advanced menu. Press the cursor ▲▼ button to move up and down in the PICTURE>>Advanced menu. Press ◄► to change values for settings. ESCRIPTION Color Temperature Press the cursor ◄►...

  • Page 31: Hsg Adjustment

    HSG Adjustment Press the ENTER button to enter the HSG Adjustment sub menu. ESCRIPTION Press the ◄► buttons to set the Primary Color. Primary Color Notes: There are six sets (R/ G/ B/ C/ M/ Y) of colors to be customized. Press the ◄►...

  • Page 32: Vividsettings

    VividSettings Press the ENTER button to enter the VividSettings sub menu. ESCRIPTION VividMotion Press the ◄► buttons to select different MEMC level. Press the ◄► buttons to adjust motion adaptive sharpness enhancement (2D VividPeaking Peaking) value. Flesh Tone Press the ◄► buttons to adjust the display flesh tone. –...

  • Page 33: Display Menu

    DISPLAY Menu Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the DISPLAY menu. Press the cursor ▲▼ button to move up and down in the DISPLAY menu. Press ◄► to change values for settings. ESCRIPTION Aspect Ratio Press the cursor ◄►...

  • Page 34: Pc Detail Adjustment

    PC Detail Adjustment Press the ENTER button to enter the PC Detail Adjustment sub menu. Note: Customizing the settings in PC Detail Adjustment menu is only available when PC input source (analog RGB) is selected. ESCRIPTION Press the ENTER/AUTO button on the control panel or the ENTER/AUTO button on Auto the remote control to automatically adjust frequency, phase, and position.

  • Page 35: White Balance

    White Balance Press the ENTER button to enter the White Balance sub menu. ESCRIPTION Red Gain Press the ◄► buttons to adjust the Red Gain. Green Gain Press the ◄► buttons to adjust the Green Gain. Blue Gain Press the ◄► buttons to adjust the Blue Gain. Red Bias Press the ◄►...

  • Page 36: User Color Temp

    User Color Temp Press the ENTER button to enter the User Color Temp sub menu. ESCRIPTION White Gain Red Press the ◄► buttons to adjust the White Gain Red. White Gain Green Press the ◄► buttons to adjust the White Gain Green. White Gain Blue Press the ◄►...

  • Page 37: 3D Setting

    3D Setting ESCRIPTION 3D Mode Press the ◄► buttons to enter and select different 3D mode. 3D Sync Press the ◄► buttons to enter and enable or disable 3D Sync. 3D Sync Invert Press the ◄► buttons to enter and enable or disable 3D Sync Invert. Note: 1.

  • Page 38: Setup>>Basic Menu

    SETUP>>Basic Menu Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the SETUP>>Basic menu. Press the cursor ▲▼ button to move up and down in the SETUP>>Basic menu. Press ◄► to change values for settings. ESCRIPTION Language Press the cursor ◄►...

  • Page 39: Menu Settings

    Menu Settings Press the ENTER button to enter the Menu Settings sub menu. ESCRIPTION Menu Position Press the ◄► buttons to select from five OSD locations. Menu Display Time Press the ◄► buttons to set the Menu Display timer before the OSD times out. Source Press the ENTER button to enter the Source sub menu.

  • Page 40: Setup>>Advanced Menu

    SETUP>>Advanced Menu Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the SETUP>>Advanced menu. Press the cursor ▲▼ button to move up and down in the SETUP>>Advanced menu. ESCRIPTION Audio Press the ENTER button to enter the Audio sub menu. See on page 32.

  • Page 41: Audio

    Audio Press the ENTER button to enter the Audio sub menu. ESCRIPTION Volume Press the ◄► buttons to adjust the audio Volume. Mute Press the ◄► buttons to turn on or off the speaker. Lamp Press the ENTER button to enter the Lamp sub menu. ESCRIPTION Lamp Mode Press the ◄►...

  • Page 42: Closed Caption

    Closed Caption Press the ENTER button to enter the Closed Caption sub menu. ESCRIPTION Closed Caption Press the ◄► buttons to turn on or off Closed Caption. Enable Caption Version Press the ◄► buttons to select the Caption Version. – 33 –...

  • Page 43: Status Menu

    STATUS Menu Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the STATUS Menu. ESCRIPTION Source Displays the activated input source. Resolution Displays the native resolution of input source. Lamp Hour s Displays the number of hours the lamp has been in use.

  • Page 44: Maintenance And Security

    AINTENANCE AND ECURITY Replacing the Projection Lamp The projection lamp should be replaced when it burns out. It should only be replaced with a certified replacement part, which you can order from your local dealer. Important: a. The projection lamp used in this product contains a small amount of mercury. b.
  • Page 45 Turn upside down the projector. Loosen the four screws on the bottom of the projector. Remove the glass cabinet. Remove the two screws from the lamp module. Lift the module handle up. Pull firmly on the module handle to remove the lamp module and replace the lamp module.

  • Page 46: Resetting The Lamp

    Resetting the Lamp After replacing the lamp, you should reset the lamp hour counter to zero. Refer to the following: Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the SETUP : Advanced menu.

  • Page 47: Cleaning The Projector

    Cleaning the Projector Cleaning the projector to remove dust and grime will help ensure trouble-free operation. Warning: 1. Be sure to turn off and unplug the projector at least 30 minutes before cleaning. Failure to do so could result in a severe burn. 2.

  • Page 48: Troubleshooting

    ROUBLESHOOTING Common problems and solutions These guidelines provide tips to deal with problems you may encounter while using the projector. If the problem remains unsolved, contact your dealer for assistance. Often after time spent troubleshooting, the problem is traced to something as simple as a loose connection.

  • Page 49: Led Error Messages

    LED Error Messages OWER RROR ESSAGES REEN Flashing System Initial Ready to Power on (Standby) Flashing System Power on Lamp Lit , System stable Flashing Cooling 1W MCU detects scaler stops working 2 Flashing (initial fail) Over Temperature 4 Flashing Thermal Break Sensor error 5 Flashing 0 Flashing...

  • Page 50: Lamp Problems

    1. Position the projector so it is as perpendicular to the screen as possible. 2. Use the Keystone button on the remote control to correct the problem. Problem: The image is reversed Check the Projection setting on the SYSTEM SETUP >> Basic > Projection menu of the OSD.

  • Page 51: Having The Projector Serviced

    4. Test the source audio output with other speakers. 5. Have the projector serviced. Problem: The sound is distorted 1. Check the audio cable connection. 2. Test the source audio output with other speakers. 3. Have the projector serviced. Having the Projector Serviced If you are unable to solve the problem, you should have the projector serviced.

  • Page 52: Hdmi Q & A

    HDMI Q & A Q. What is the difference between a “Standard” HDMI cable and a “High-Speed” HDMI cable? Recently, HDMI Licensing, LLC announced that cables would be tested as Standard or High- Speed cables. Standard (or “category 1”) HDMI cables have been tested to perform at speeds of 75Mhz or up to 2.25Gbps, which is the equivalent of a 720p/1080i signal.

  • Page 53: Specifications

    PECIFICATIONS Specifications SUPERCUBE series Model TI DMD 0.65" 1080p Display Type 1080p 1920x1080 Resolution 1.2 ~ 10 m Projection Distance 25.9" ~ 324.97" Projection Screen Size Manual Focus/Manual Zoom Projection Lens 1.5x with lens shift Zoom Ratio Vertical Keystone +/- 40 Degree...

  • Page 54: Projection Distance Vs. Projection Size

    Projection Distance vs. Projection Size Projection Distance and Size Table SUPERCUBE ROJECTION ROJECTION MAGE MAGE IDTH MAGE EIGHT ISTANCE ISTANCE FFSET IAGONAL INCH INCH INCH INCH INCH 52.3 132.8 29.4 74.7 72.7 184.6 109.3 277.6 112.1 61.0 155.0 34.3 87.2 84.8...

  • Page 55: Timing Mode Table

    Timing Mode Table HDMI OMPOSITE IGNAL ESOLUTION OMPONENT ( KH IDEO NALOG IGITAL NTSC 15.734 ○ － － － － PAL/SECAM 15.625 ○ － － － － 640 x 400 37.9 85.08 ○ ○ － － 720 x 400 31.5 70.1 ○...
  • Page 56 HDMI OMPOSITE IGNAL ESOLUTION OMPONENT ( KH IDEO NALOG IGITAL 1280 x 960 ○ ○ － － 1280 x 960 85.9 ○ ○ － － 1360 x 768 47.7 ○ ○ － － 1400 x 1050 65.3 ○ ○ － －...

  • Page 57: Projector Dimensions

    Projector Dimensions 315mm [12.4"] 85mm [3.34"] — 48 —...

  • Page 58: Regulatory Compliance

    EGULATORY OMPLIANCE FCC Warning This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
  • Page 59 SIM2 BV International s.r.l. Viale Lino Zanussi, 11 33170 Pordenone – ITALY Phone: + 39 0434 383256 Fax: +39 0434 383260 Email: info@sim2.it www.sim2.com SIM2 USA 10216 NW 47th Street Sunrise, FL 33351 Phone: +1 (954) 442 2999 Email: sales@sim2usa.com www.sim2usa.com...
