Summary of Contents for Sim2 Sirio
-

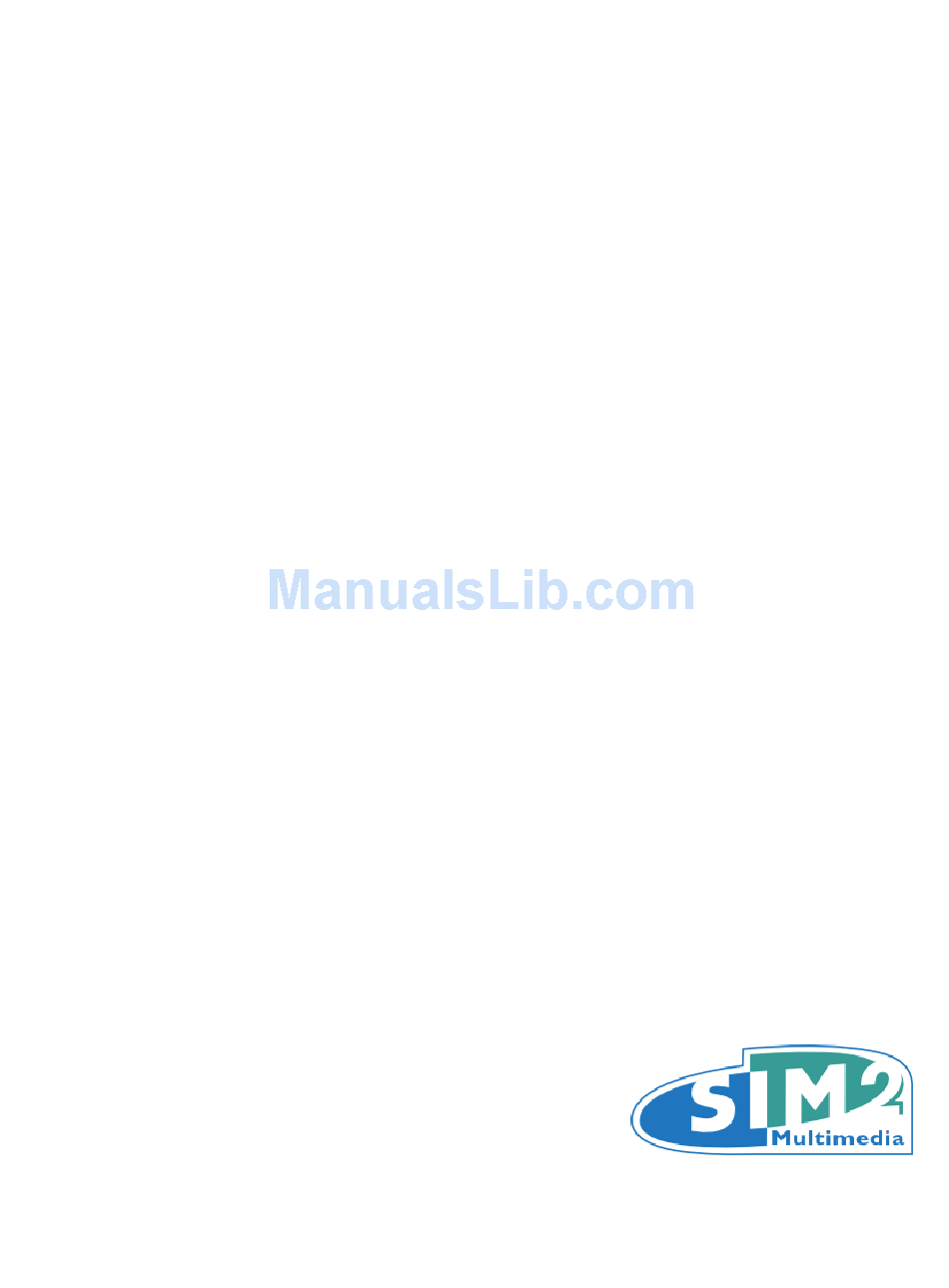

Page 1: User Guide

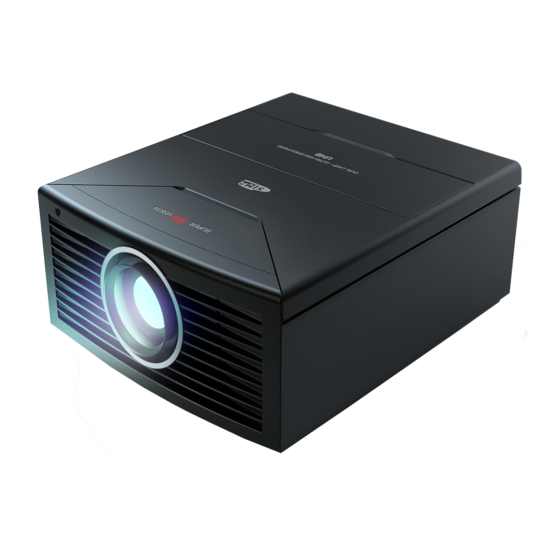

SIM2 Multimedia SIRIO User Guide... -
Page 2: Table Of Contents
Switching On and Off Chapter 4: Operation Viewing 3D Content 3D Menu Input Menu Main Menu Picture Image Setup Menu Memories Info Quick Menus Messages Chapter 5: Troubleshooting Chapter 6: Specifications Chapter 7: Projection Distances Chapter 8: Dimensions SIRIO User Guide... -
Page 3: Important Information
Inside the housing there are electrical parts carrying dangerously high voltages and parts operating at high temperature. Never open the housing. Entrust all servicing and repair work to a SIM2 Authorized Service Center. Opening the housing voids the warranty. Disconnect the appliance from the power supply The device that disconnects the projector from the mains is the power plug. - Page 4 Retain the lens plug to protect the optical components from dust and debris during transport (see page 14). Take special care regarding movement of the lens Do not place objects in the slots on the side of the lens and also ensure that vertical Important information SIRIO User Guide...
-
Page 5: Environment
• When you no longer wish to use your electrical and electronic equipment, take it to your local waste disposal facility for recycling. • You may return your old equipment to your SIM2 Authorized Dealer free of charge when you buy a new product that is equivalent or has the same functions as the old one. -
Page 6: Notice
As the optical system of the SIRIO is extremely compact and has the purpose of developing very high brightness and contrast, it is possible that a small quantity of light is visible outside of the projection area and will vary depending on the type of lens used and the zoom and shift setup. -
Page 7: Chapter 1: Introduction
Engineered to be used with large screen sizes or in ambient light room conditions, where high light output is a necessity, SIRIO uses light-tuned optical elements to maximize light output (up to 6,000 ANSI lumens) from its dual 350W lamps. -
Page 8: System Components
• LENSM4 LENS ZOOM M4 (3.67 – 6.98) • VISUSRF-BOX (8 SIM2 Visus 3D RF glasses) • VISUSRF-SYSTEM (7 SIM2 Visus 3D RF glasses and 1 RF emitter for SIM2 Visus 3D RF glasses) • VISUSRF-SYSTEM-ACC (4 SIM2 Visus 3D RF glasses and 1 RF emitter for SIM2 Visus... -
Page 9: Chapter 2: Overview
• If you are using a programmable remote control, the setup software probably allows importing of Pronto Hex codes. See SIM2 SIRIO IR Control for a list of all the projector codes in Pronto Hex format, including a number of discrete codes for: ◦... -
Page 10: Projector Keypad
Operation The SIRIO projector has two IR receivers, one on the front and one on the back of the unit. The operative range of the remote control is approximately 10 m (33 ft.). Make sure that there is nothing obstructing the infrared beam between the remote control and the IR receiver you are pointing to. -
Page 11: Connections
See “Screen” on page 29 . TRIG 3 12 V 100 mA max output, for motorized anamorphic lens position control. See “Anamorphic Lens” on page 29 . 3D Sync OUT VESA DIN-3 connector for 3D RF Emitter cable. Overview SIRIO User Guide... -
Page 12: Rf Emitter
3D RF emitter. ❶ Button Button for ON and OFF Indicating glasses status ❷ ❸ Micro USB port To charge the glasses Lens Liquid crystal shutter ❹ RF Receiver Receive RF signals from 3D Emitter ❺ Overview SIRIO User Guide... -
Page 13: Chapter 3: Installation
Power Outlets Verify that the powers outlets are grounded and preferably shielded from power surges and fluctuations. SIRIO power supply operates on any nominal line voltage between 100-240 V AC, 50-60 Hz. Cables Check planned cable lengths for video and control cables and make sure these lengths do not exceed specifications. -
Page 14: Installing The Projection Lens
Unscrew the 2 screws and lift up the metallic lens door. Pull the level up to release the lock (1) Remove the lens cap (2) Install the lens into position (1) Push the release lever down to lock the lens in place (2) Installation SIRIO User Guide... - Page 15 When carrying or moving the projector, do not handle by the lens. This may damage the lens, the chassis or other mechanical parts inside the projector. For the lens centering refer to “Projection Lens” on page 31. Installation SIRIO User Guide...
-
Page 16: Mounting
Do not over-tighten the screws. Orientation By default, the SIRIO is configured for a Front installation (projector installed upright and in front of the screen). If the projector is installed behind the screen or inverted, you can use the image orientation function of the projector (see “Orientation” on... -
Page 17: Connections
(see page 31) to shift the projected image vertically. The SIRIO provides up to 60% of vertical lens shift up. For example, with a 16:9 150 in. diagonal size screen, you can shift the image up to 1.12 m (44.4 in.) above the screen center (see “Projection Distances”... - Page 18 This connector is also the composite sync input for SCART RGBS sources. See “RGB/YPrPb” above. Control You can connect the SIRIO projector to a Personal Computer or a control system through one of the following methods: •RS-232 port, using a standard 9-pin straight serial cable •RS-232 port, using a USB to serial converter cable.
- Page 19 The glasses are shipped with the micro USB to USB Type A cable. To charge the glasses battery, plug the micro USB cable in a computer or other USB device capable of supplying power. LED will remain lit while glasses are charging. When battery is fully charged LED will go off. Installation SIRIO User Guide...
-
Page 20: Switching On And Off
Warning: Wait for the cooling fans to turn off before turning off the main power switch or unplugging the projector. Installation SIRIO User Guide... -
Page 21: Chapter 4: Operation
To watch 3D Content via Blu-ray •Switch on the SIRIO and all other relevant products such as Blu-ray player and AV receiver and ensure the correct inputs have been selected. •Insert your 3D Blu-ray disc and press play, follow the on-screen menus. -
Page 22: Menu
To Watch 3D Content via Satellite, Cable and Games Console •Switch on the SIRIO and all other relevant products such as Satellite receiver and AV receiver and ensure the correct inputs have been selected. •Select the appropriate 3D channel. •If the projector displays two distorted images side by side or one on top of each other, select the 3D menu by pressing II on the remote control. - Page 23 3D Input Format The SIRIO checks AVI infoframe data and input signal resolution in order to determine the appropriate 3D format. When automatic detection of 3D format is not possible, choose one of the following options: •(S-S) Side by Side Left and right halves of the image are separated, rescaled and displayed.
- Page 24 Normal. When Keystone is not active, its value is 0 (no correction). Table 4.2 3D Format Signal Aspect Keystone ● ● Frame Packing 1920 x 1080p @ 23.98/24 Hz Others ● Side by Side Top and Bottom Notes: 1. except Panoramic Operation SIRIO User Guide...
-
Page 25: Input Menu
•you can enter these sections only when an image is displayed •the controls in these sections only operate on the active input •when you select another input or change mode (2D/3D), all the settings in these sections are automatically saved Operation SIRIO User Guide... -
Page 26: Picture
Alternatively use a scene composed of black objects alongside other dark colored objects and try to ensure that all the objects can be separately identified. Operation SIRIO User Guide... - Page 27 Selecting Auto mode causes the deinterlacer to analyze signal characteristics and apply the correct deinterlace mode automatically. Noise Reduction This adjustment lets you choose the value of the noise reduction filter. Mode When viewing 2D contents, you can choose between two user modes: Operation SIRIO User Guide...
-
Page 28: Image
•Normal projects the image occupying the full height of the screen while maintaining the aspect ratio of the input signal. When the input signal aspect ratio is 4:3, black vertical bands are displayed on the right and left of the picture. Operation SIRIO User Guide... - Page 29 ◦Standard the white point associated to the value selected in column 1 ◦High, Medium, Low default white balance levels ◦Native the projector native white point ◦D75, D65, D50 the C standard CIE illuminants Operation SIRIO User Guide...
- Page 30 To accurately set the Primaries and White Point you will need access to specialized color measuring equipment and also the knowledge to use such equipment. Alternatively, contact the SIM2 Authorized Dealer where you purchased your product and ask them to arrange for an ISF certified calibrator to set up your projector.
-
Page 31: Setup
This adjustment compensates the distortion resulting from the angle of projection. Note: Keystone may cause artifacts in the image and may not be available when displaying specific 3D content (see Table 4.2). SIM2 recommends that you use this feature only when necessary. Projection Lens... - Page 32 Resets most projector settings to their factory presets. The settings in the following list are not reset: •Serial Number and Model name •Lamp Hours •User Memories (including Memories Names) •Source List (including Source Names) •Orientation •Zoom and Focus Operation SIRIO User Guide...
-
Page 33: Menu
Menu This menu section provides access to OSD adjustments. Language Selects the desired OSD language. The SIRIO can display the menus in English, Italian, French, German, Spanish, Swedish, Portuguese, Russian and Simplified Chinese. Source List Allows customization of the Input list. To change the status of an input: 1.highlight the input... -
Page 34: Memories
You can store and recall at a later time up to six different sets of values (Memories) per input type, so that you have customized setups for each viewing condition. Each memory saves the main image settings that are available for a given input type. Refer to Table 4.5 for details. Operation SIRIO User Guide... - Page 35 You can change the name of each memory. See “Rename” below for details. Recall To recall the settings for the current input you have previously saved in a Memory: 1.press the Memory key on the remote to display Memories menu Operation SIRIO User Guide...
-
Page 36: Info
Auto settings at any time, provided that you do not exit Memory menu by pressing Esc. Info Displays a summary of the projector settings This function is displayed by pressing Info on the remote control. Operation SIRIO User Guide... -
Page 37: Quick Menus
•Out of range. This message appears when either the resolution or the vertical/horizontal frequency of the input signal exceeds system specifications (for example a QXGA graphic signal). Operation SIRIO User Guide... -
Page 38: Troubleshooting
Wait at least 10 minutes and then turn the projector back on. •Check the Status Display for any errors. Contact your SIM2 Authorized Dealer for assistance if the error persists. •Lamp may need replacement. Contact your SIM2 Authorized Dealer for assistance. -
Page 39: Chapter 5: Troubleshooting
◦Usually re-selecting the input will resolve the problem. ◦If the problem persists then it is more than likely to be cable related. Try other cables. ◦Try bypassing other product in the system chain. For example connect the Blu-ray player direct to the projector. Troubleshooting SIRIO User Guide... -
Page 40: Chapter 6: Specifications
1 x 12 V 100 mA jack for 4:3/16:9 aspect ratio 1 x 12 V 100 mA jack for anamorphic lens driving Horizontal: 15-80 kHz Frequency Vertical: 24-30 Hz and 48-120 Hz Specifications SIRIO User Guide... - Page 41 Weight: 25 kg (55.5 lb.) approx. Operating: 10° C to 35° C Temperature Storage: -15° C to 55° C Low Voltage Directive: EN 60950-1/UL60950 Certifications EMC Directives: EN 55022, EN 55022 A1 A2, EN61000-3-2, EN61000-3-3 Specifications SIRIO User Guide...
-
Page 42: Chapter 7: Projection Distances
31' 6” 31' 10” 42' 4” 79' 9” 80' 1” 151' 7” 261.5 147.1 73.5 Due to constant product development, the calculated projection distance and value may have a margin of tollerance of ± 5% Projection Distances SIRIO User Guide... -
Page 43: Chapter 8: Dimensions
8Dimensions SIRIO dimensions in millimeters and (inches). Dimensions SIRIO User Guide... - Page 44 SIM2 USA Inc. 10216 NW 47th Street Sunrise, FL 33351 Phone: +1 (954) 442 2999 Email: sales@sim2usa.com www.sim2usa.com SIM2 BRIONVEGA Co., Ltd Room 303-304, No. 244 Liaoning Road Shanghai 200080 – CN Phone/Fax: 86 1 62881991 Email: InfoCHINA@sim2.com SIM2 UK Steinway House Worth Farm Little Horsted Nr.
