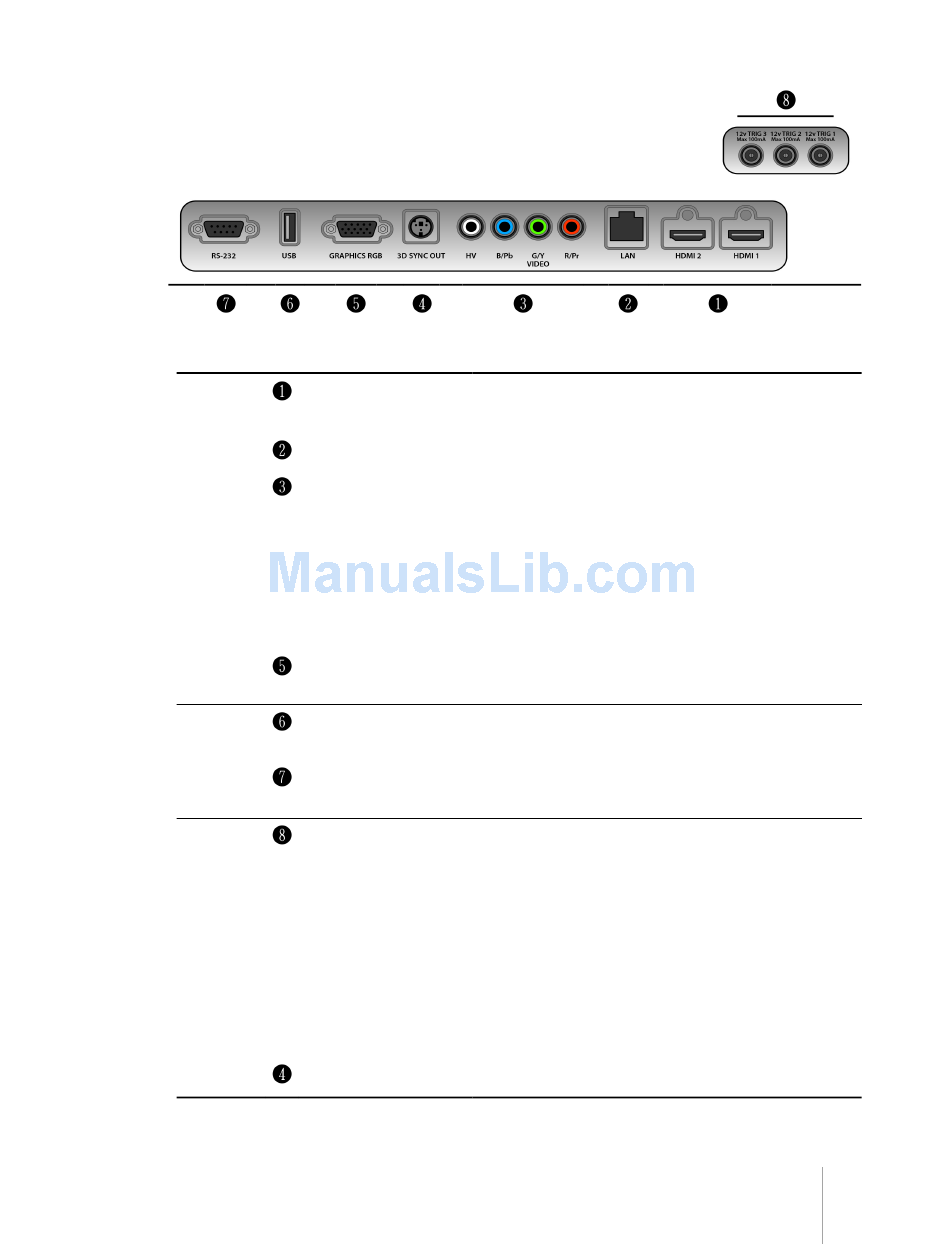

Connections

Inputs
Control/
Service
Outputs
2 Overview
HDMI 1 Accept both HDMI and DVI digital video inputs
HDMI 2 (1.4a)
LAN RJ-45 Networking Connector
Components/RGB-HV Four RCA connectors. They accept both standard
and high-definition component (YPrPb) and
RGB-HV signals. Also used as RGB input for SCART
RGBS signals.
Video Green RCA connector. Accepts composite video
signals. Also used as composite sync input for
SCART RGBS signals.
Graphics RGB One D-Sub 15-pin female connector. Accepts
component or RGB high-definition signals.
USB USB 1.1 (type A) port for serial commands and
firmware upgrade.
RS-232 RS232 (female D-Sub 9-pin) port for serial
commands and firmware upgrade.
TRIG 1 12 V 100 mA max output, for motorized screen
control. Activates when the projector is switched
on.
TRIG 2 12 V 100 mA max output, for motorized screen
masking systems control. See "Screen" on page
29 .
TRIG 3 12 V 100 mA max output, for motorized
anamorphic lens position control. See
"Anamorphic Lens" on page 29 .
3D Sync OUT VESA DIN-3 connector for 3D RF Emitter cable.
