Furuno FELCOM 250 Operator's Manual page 149

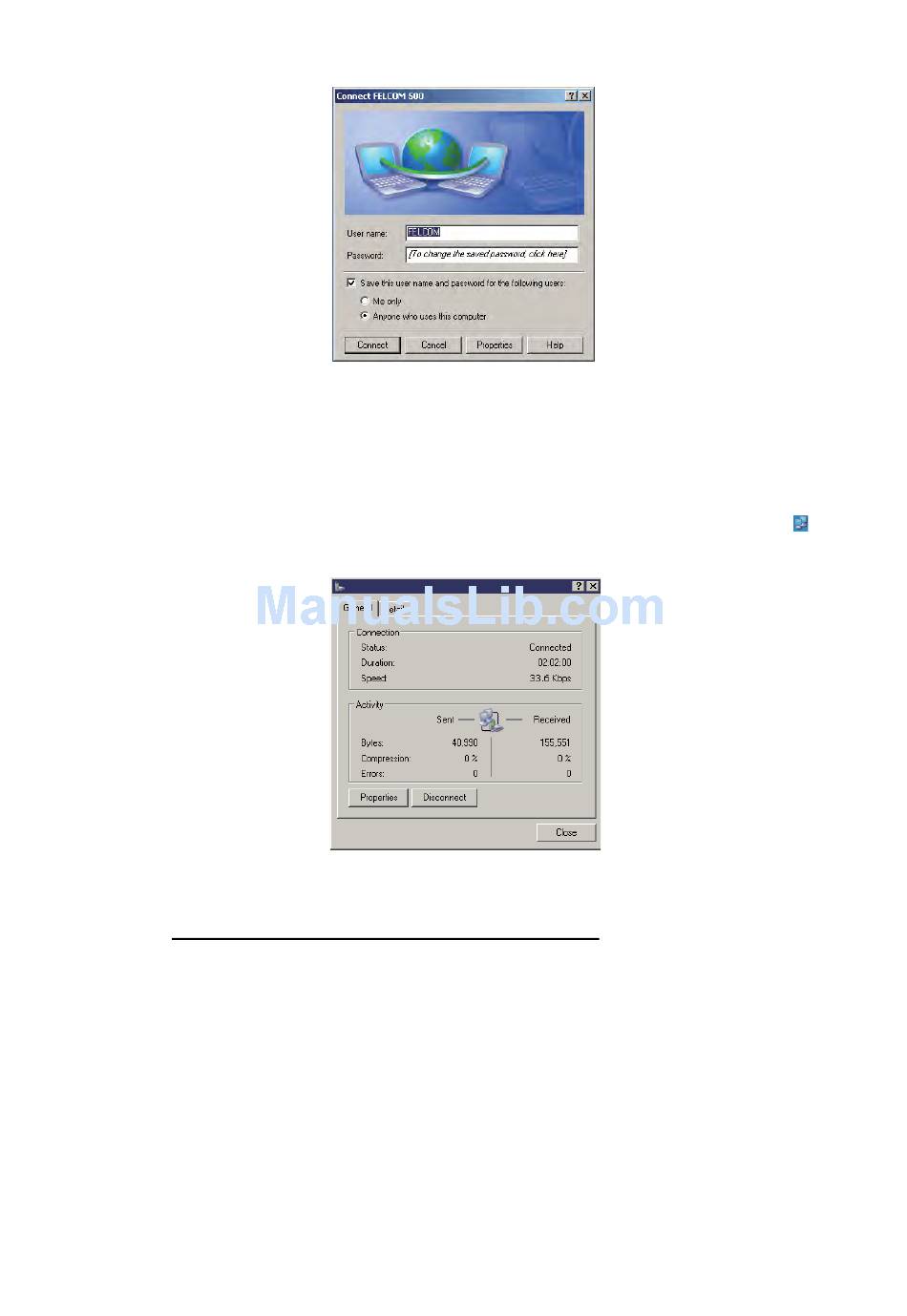

2. Click the [Connect] button to show the following dialog box.
Note: If you have registered several sessions to the Web software, enter applica-
ble user name and password to connect to desired service.
3. Click the [Connect] button to start the data connection. The task bar shows [Con-
nected to ***] (*** is the name on the icon for PPPoE connection) if you are con-
nected to the internet.
4. To disconnect the data connection, click the icon for PPPoE connection (
the task bar.
5. Click the [Disconnect] button to disconnect the data connection. Closing the ap-
plication does not disconnect the line.
How to show the PPPoE status monitor display
The PPPoE status monitor display shows the packet communication volume for the
current PPPoE session.
1. Start the Internet Explorer and connect to the internet with PPPoE as shown in the
procedure on page 6-34.
2. Enter http://192.168.254.1 in the address bar then press the [Enter] key to show
the PPPoE status monitor display.
FELCOM 500 Dial Status
6. WEB FUNCTIONS
) on
6-35
