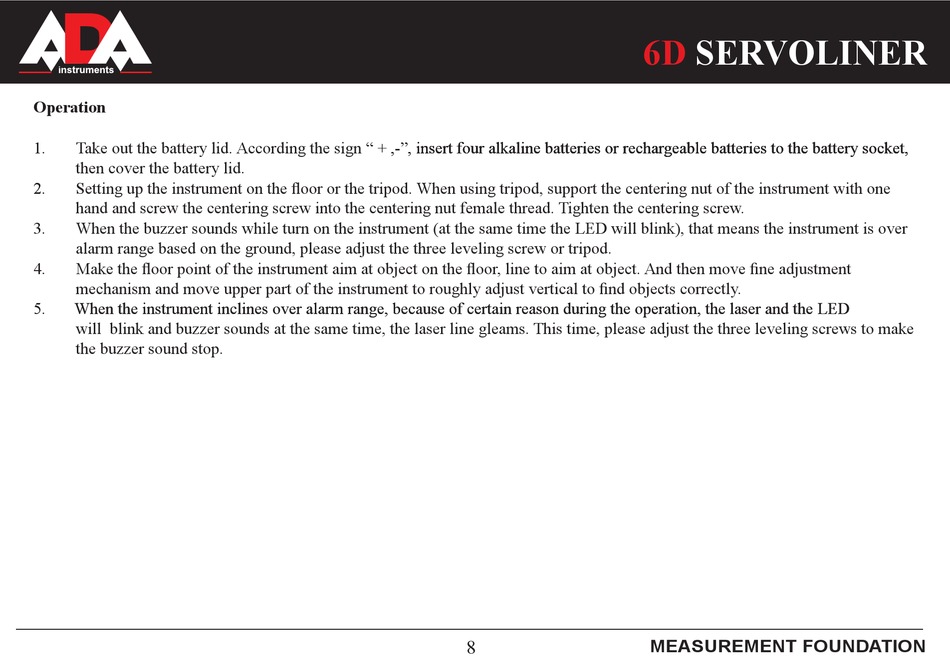

Operation

1. Take out the �attery lid. According the sign " �� �-"� insert four alkaline �atteries or rechargea�le �atteries to the �attery socket�
then cover the battery lid.
2. Setting up the instrument on the floor or the tripod. When using tripod� support the centering nut of the instrument with one
hand and screw the centering screw into the centering nut female thread. Tighten the centering screw.
3. When the buzzer sounds while turn on the instrument (at the same time the LED will blink), that means the instrument is over
alarm range �ased on the ground� please adjust the three leveling screw or tripod.
4. Make the floor point of the instrument aim at o�ject on the floor� line to aim at o�ject. And then move fine adjustment
mechanism and move upper part of the instrument to roughly adjust vertical to find o�jects correctly.
5. When the instrument inclines over alarm range, because of certain reason during the operation, the laser and the LED When the instrument inclines over alarm range, because of certain reason during the operation, the laser and the LED
will �link and �uzzer sounds at the same time� the laser line gleams. This time� please adjust the three leveling screws to make
the buzzer sound stop.
" �� �-"� insert four alkaline �atteries or rechargea�le �atteries to the �attery socket� insert four alkaline batteries or rechargeable batteries to the battery socket,
