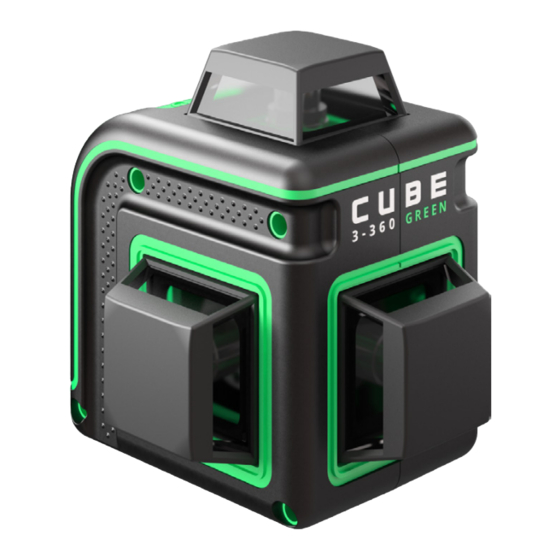

- Page 1 OPERATING MANUAL CUBE 3-360 GREEN Line Laser Manufacturer: Adainstruments Address: www.adainstruments.com...
- Page 2 English Horizontal Line L L i i n n e e...
-
Page 3: Specifications
SET WITHOUT GIVING PRIOR WARNING. APPLICATION Line laser ADA CUBE 3-360 Green is designed to check the horizontal and vertical position of the surfaces of the elements of building structures and also to transfer the angle of inclination of the structural part to similar parts during construction and installation works. -
Page 4: Laser Lines
• Do not use instrument in explosive environment. OPERATION Cube 3-360 Green is a reliable and convenient line laser. It will be irreplace- able instrument for many years. 1. Before use, remove battery compartment cover. Insert three batteries into battery compartment with proper polarity, then put the cover back. -
Page 5: To Check Plumb
English 2. Set the compensator locking grip (5) into ON position. Horizontal beam is ON. If the switch is ON, that means the power is on and the compensator is working. If the switch (5) is in intermediate position, that means the power is opened,the compensation is still locked, but it will not warn if you issue the slope. - Page 6 English please, contact with seller to calibrate the laser. PRODUCT LIFE Product life of the tool is 7 years. The battery and the tool should never be placed in municipal waste. Date of production, manufacturer’s contact information, country of origin are indicated on the product sticker. CARE AND CLEANING Please handle line laser with care.
-
Page 7: Laser Classification
English LASER CLASSIFICATION The instrument is a laser class 2 laser product accortding to DIN IEC 60825-1:2007. It is allowed to use unit without further safety precautions. WARRANTY This product is warranted by the manufacturer to the original purchaser to be free from defects in material and workmanship under normal use for a period of two (2) years from the date of purchase. - Page 8 English bility for any damage, and loss of profits caused by usage other than ex- plained in the operating manual. The manufacturer, or its representatives, assumes no responsibility for damage caused by wrong movement or action due to connecting with oth- er products.
- Page 9 ADA International Group Ltd., No.6 Building, Hanjiang West Road #128, Changzhou New District, Jiangsu, China Made In China adainstruments.com...
