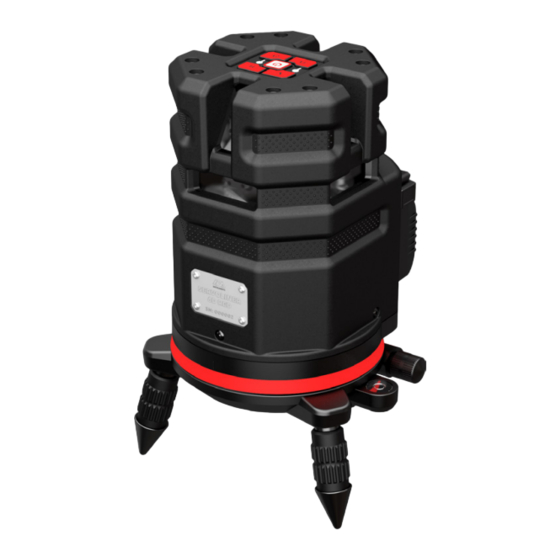

- Page 1 OPERATING MANUAL 6D SERVOLINER / 6D SERVOLINER GREEN Line Laser adainstruments.com...
- Page 2 English х х...
-
Page 3: Specifications
SET WITHOUT GIVING PRIOR WARNING. APPLICATION Line laser ADA 6D SERVOLINER / ADA 6D SERVOLINER GREEN is designed to check the horizontal and vertical position of the surfaces of the elements of building structures and also to transfer the angle of inclination of the structural part to similar parts during construction and installation works. -
Page 4: Functional Description
English FUNCTIONAL DESCRIPTION - 4 vertical lines (V), 4 horizontal lines (H) (360º), plumb down; - The line laser is designed for operation indoor and outdoor. - Electronic compensator for the faster self-leveling ±3º; - The line laser begins to blink automatically, if the deviation from horizontal plane is more than ±3º;... -
Page 5: Operation
English KEYPAD Horizontal switch (H) Power switch On/Off (Power LED) Vertical switch (V) Detector LED Detector mode Self-leveling mode Self-leveling off LED OPERATION Li-battery or battery adapter AA can be used for operation with line laser. If using a battery adapter AA, install batteries in it. Open the battery compartment cover. - Page 6 English Set up the line laser on the floor or the tripod. When using tripod, screw the tripod screw into the centering hole. Use screw-adapter to set a line laser on the mounts with bases. Level the line laser with the bubble level with the help of adjustable legs (7) or tripod. Press button (2) to switch on the line laser.
-
Page 7: Manual Mode
English MANUAL MODE 1. Switch the line laser ON. Auto leveling function is activated. Press but- ton (6) to switch on the auto manual mode. LED indicator (7) will be ON constantly. 2. It is possible to set the inclination of the laser beams along the axis X and Y in the range of ±3º. -
Page 8: Product Life
English TO CHECK LEVEL Choose a wall and set laser 5M away from the wall. mark cross point on the wall. Turn the line laser so that the beam is displaced approximately 2.5m to the left. Horizontal line must be in the “accuracy” range (see specif.) at the same height with the cross point. -
Page 9: Laser Classification
English • After line laser has been dropped or hit. Please check the accuracy; • Large fluctuation of temperature: if instrument will beused in cold areas after it has been stored in warm areas (or the other way round) please wait some minutes before carrying out measurements. -
Page 10: Warranty
English WARRANTY This product is warranted by the manufacturer to the original purchaser to be free from defects in material and workmanship under normal use for a period of two (2) years from the date of purchase. During the warranty pe- riod, and upon proof of purchase, the product will be repaired or replaced (with the same or similar model at manufactures option), without charge for either parts of labour. - Page 11 English The manufacturer, or its representatives, assumes no responsibility for any damage, and loss of profits caused by usage other thsn explained in the users’ manual. The manufacturer, or its representatives, assumes no responsibility for damage caused by wrong movement or action due to connecting with oth- er products.
-
Page 12: Warranty Card
English WARRANTY CARD Name and model of the product __________________________________________ Serial number___________________________Date of sale______________________ Name of commercial organization ________________________________________ stamp of commercial organization Warranty period for the instrument explotation is 24 months after the date of original retail purchase. During this warranty period the owner of the product has the right for free repair of his instrument in case of manufacturing defects. - Page 13 ADA International Group Ltd., No.6 Building, Hanjiang West Road #128, Changzhou New District, Jiangsu, China Made In China adainstruments.com...
