Summary of Contents for ADA INSTRUMENTS CUBE 2-360

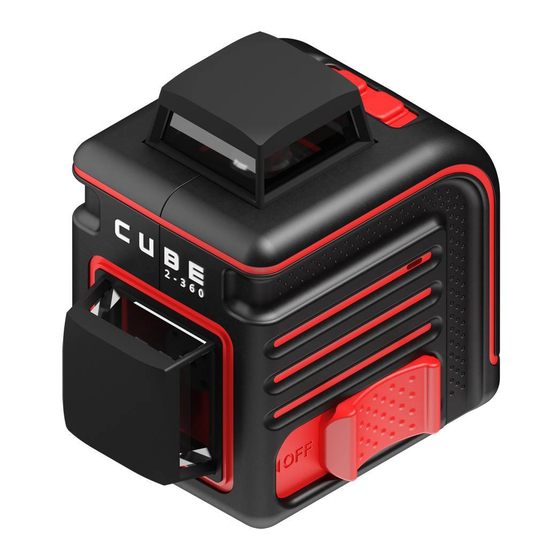

- Page 1 MEASUREMENT FOUNDATION Operating manual Laser level Model: CUBE 2-360 Manufacturer: ADAINSTRUMENTS Address: WWW.ADAINSTRUMENTS.COM...
-
Page 2: Table Of Contents
CUBE 2-360 Table of contents 1. Cautions ............... 3 . -
Page 3: Cautions
CUBE 2-360 1. CAUTIONS Laser level model - is an up-to-date functional and multi-prism device designed for indoor and ADA CUBE -360 outdoor performance. The device emits: one horizontal laser line (beam scan angle of 360°) one vertical laser line (beam scan angle of 360°);... - Page 4 CUBE 2-360 2.2. FEATURES 1. Laser lines on/off . Indoor/outdoor operating mode 3. Battery compartment 4. Tripod mount 1/4’’ 5. Compensator switch (ON/X/OFF) 6. Vertical laser window 7. Horizontal laser window...
- Page 5 CUBE 2-360 2.3. SPECIFICATIONS Laser Horizontal line 360°/vertical line 360° Light sources laser diodes with laser emission wave length of 635 nm Laser safety class Class , <1mW Accuracy ±3 mm/10 m Self-leveling range ±4° Operating range with/without receiver...
-
Page 6: Safety Requirements And Care
CUBE 2-360 3. SAFETY REQUIREMENTS AND CARE Follow safety requirements! Don’t face and stare at laser beam! Laser level is an accurate Instrument, which should be stored and used with care. Avoid shaking and vibrations! Store the Instrument and It’s accessories only In the carrying case. - Page 7 CUBE 2-360 polarity, the put the cover back. . Set the compensator locking grip 5 into ON position, two laser beams will be on. If the switch is ON,that means the power is on and the compensator is working. If the switch 5 is in intermediate position, that means the power is opened,the compensation is still locked, but it will not warn if you issue the slope.
- Page 8 CUBE 2-360 To check the accuracy of line laser level To check the accuracy of line laser level (slope of plane) Set up the instrument between two walls, the distance is 5m.Turn on the Line Laser, and mark the point of cross laser line on the wall. Rotate the instrument by 180° and mark the point of cross laser line on the wall again.
- Page 9 CUBE 2-360 To check level Choose a wall and set laser 5m away from the wall. Turn on the laser and cross laser line is marked A on the wall. Find another point M on the horizontal line, the distance is around 2.5m.
-
Page 10: Application
CUBE 2-360 5. APPLICATION 6. SAFETY PRECAUTION... - Page 11 CUBE 2-360 CARE AND CLEANING Please handle measuring instrument with care. Clean with soft cloth only after any use. If necessary damp cloth with some water. If instrument is wet clean and dry it carefully. Pack it up only if it is perfectly dry. Transport in original container/case only.
-
Page 12: Warranty
CUBE 2-360 LASER CLASSIFICATION The instrument is a laser class laser product accortding to DIN IEC 6085-1:007. It is allowed to use unit without further safety precautions. SAFETY INSTRUCTIONS Please follow up instructions given in operators’ manual. Do not stare into beam. Laser beam can lead to eye injury (even from greater distances). -
Page 13: Exceptions From Responsibility
CUBE 2-360 During the warranty period, and upon proof of purchase, the product will be repaired or replaced (with the same or similar model at manufactures option), without charge for either parts of labour. In case of a defect please contact the dealer where you originally purchased this product. The warranty will not apply to this product if it has been misused, abused or altered. - Page 14 WARRANTY DOESN’T EXTEND TO FOLLOWING CASES: 1. If the standard or serial product number will be changed, erased, removed or wil be unreadable. . Periodic maintenance, repair or changing parts as a result of their normal runout. 3. All adaptations and modifications with the purpose of improvement and expansion of normal sphere of product ap- plication, mentioned in the service instruction, without tentative written agreement of the expert provider.
- Page 15 WARRANTY CARD Name and model of the product ________________________________________________ Serial number ________________date of sale_______________________ Name of commercial organization _____________________stamp of commercial organization Warranty period for the instrument explotation is 4 months after the date of original retail purchase. During this warranty period the owner of the product has the right for free repair of his instrument in case of manufacturing defects. Warranty is valid only with original warranty card, fully and clear filled (stamp or mark of thr seller is obligatory).
-
Page 16: Appendix 1- "Certificate Of Acceptance And Sale
Certificate of acceptance and sale __________________________________________________________________________ __________________________________________________________________________ ___________________________________________________________№_____________ name and model of the instrument Corresponds to ______________________________________________________________ designation of standard and technical requirements Data of issue _______________________________________________________________ Stamp of quality control department Price Sold ___________________________________ Date of sale ______________________ name of commercial establishment...
