ELECTRICAL CONNECTIONS

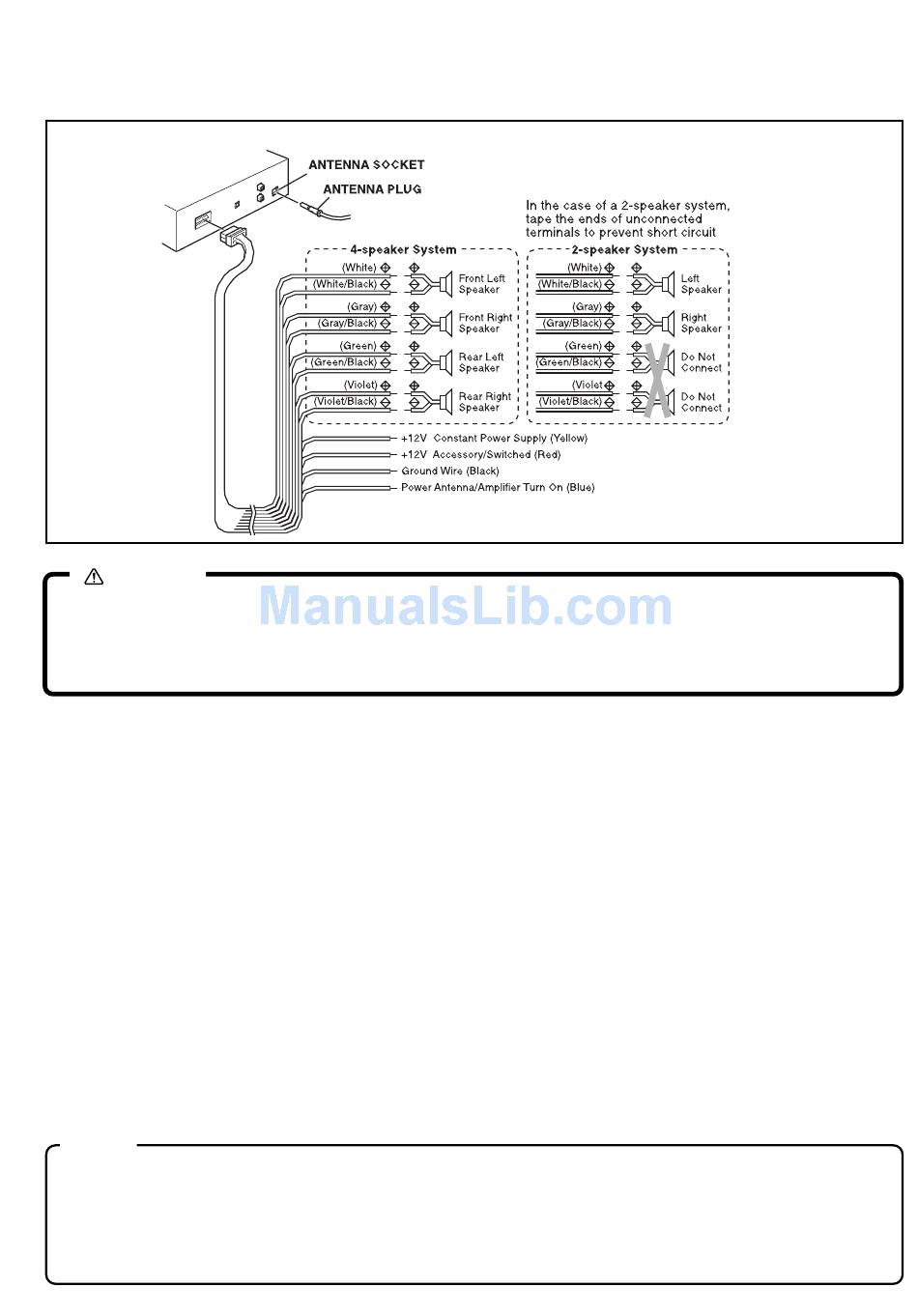

WIRING
CAUTION
• DO NOT connect any speaker wires to the metal body or chassis of the vehicle.
• DO NOT connect the speaker common (–) wires to each other.
• Connect each speaker wire directly to each speaker terminal.
• All speaker common (–) wires must remain floating.
1
Antenna socket
• Insert the plug from the antenna installed in your vehicle into this socket. (If your vehicle has a dual
antenna system, a dual antenna to single antenna cable adaptor may be required.)
2
+ 12V Constant Power Supply (Yellow)
• Connect this wire to the +12V power terminal which receives power continuously.
3
+12V Accessory/Switched (Red)
• Connect this wire to the terminal which receives power while the ignition switch is ON or in the ACCES-
SORY position.
• If the ignition switch does not have on ACC position, connect this wire to a +12V power terminal which
receives power continuously. (Same as item 2.)
4
Ground wire (Black)
• Connect this wire to the vehicle chassis.
5
Power Antenna/Amplifier Turn On (Blue)
• Connect this wire to the control terminal of a Power Antenna or an external amplifier.
• When not using a Power Antenna or an external amplifier, this wire is not connected.
Notes
• When using a two-speaker installation, the Green, Green/Black, Violet, Violet/
Black wires, which are used for a four-speaker installation, are not used.
The ends of these wires must be covered with electrical tape to prevent them
from shorting to the unit or the vehicle chassis.
• When using a two-speaker installation, set the FADER control to the center
position.
GB–24
