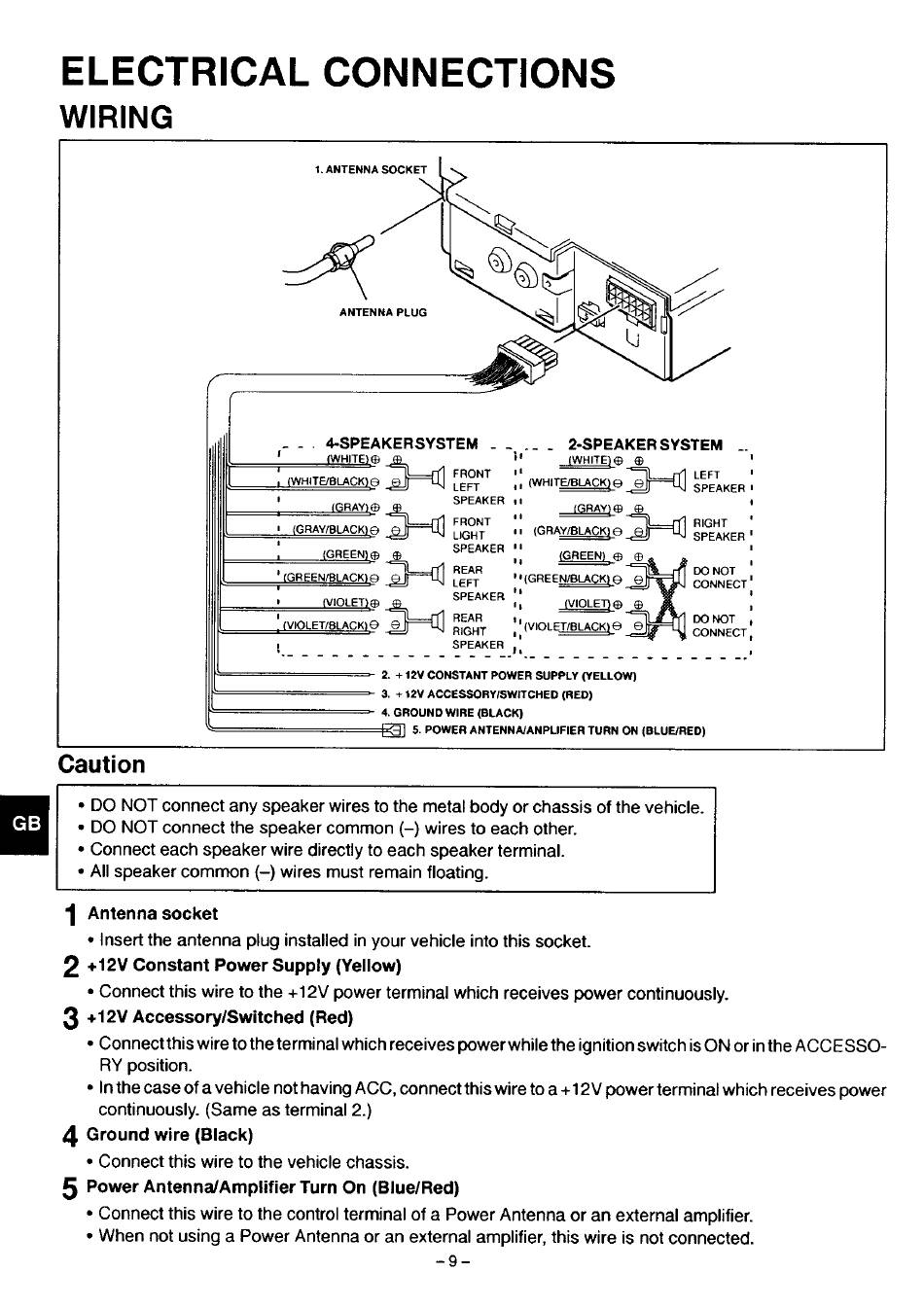

ELECTRICAL
CONNECTIONS
WIRING
,
,
,
,
-
. .
. DO NOT connect any speaker wires to the metal body or chassis of the vehicle.
c DO NOT connect the speaker common (—)wires to each other.
Connect each speaker wire directly to each speaker terminal.
All speaker common (–) wires must remain floating.
1 Antenna socket
Insert the antenna plug installed in your vehicle into this socket.
z
+12V Constant Power Supply (Yellow)
Connect this wire to the + 12V power terminal which receives power continuously.
s
+12V Accessory/Switched
(Red)
Connectthis
wire totheterminal
which receives power while the ignition switch is ON or in the ACCESSO-
RY position.
In the case of a vehicle not having ACC, connect this wire to a + 12V power terminal which receives power
continuously.
(Same as terminal 2.)
d Ground
wire (Black)
Connect this wire to the vehicle chassis.
s
Power Antenna/Amplifier
Turn On (Blue/Red)
Connect this wire to the control terminal of a Power Antenna or an external amplifier.
When not using a Power Antenna or an external amplifier, this wire is not connected.
-9-
