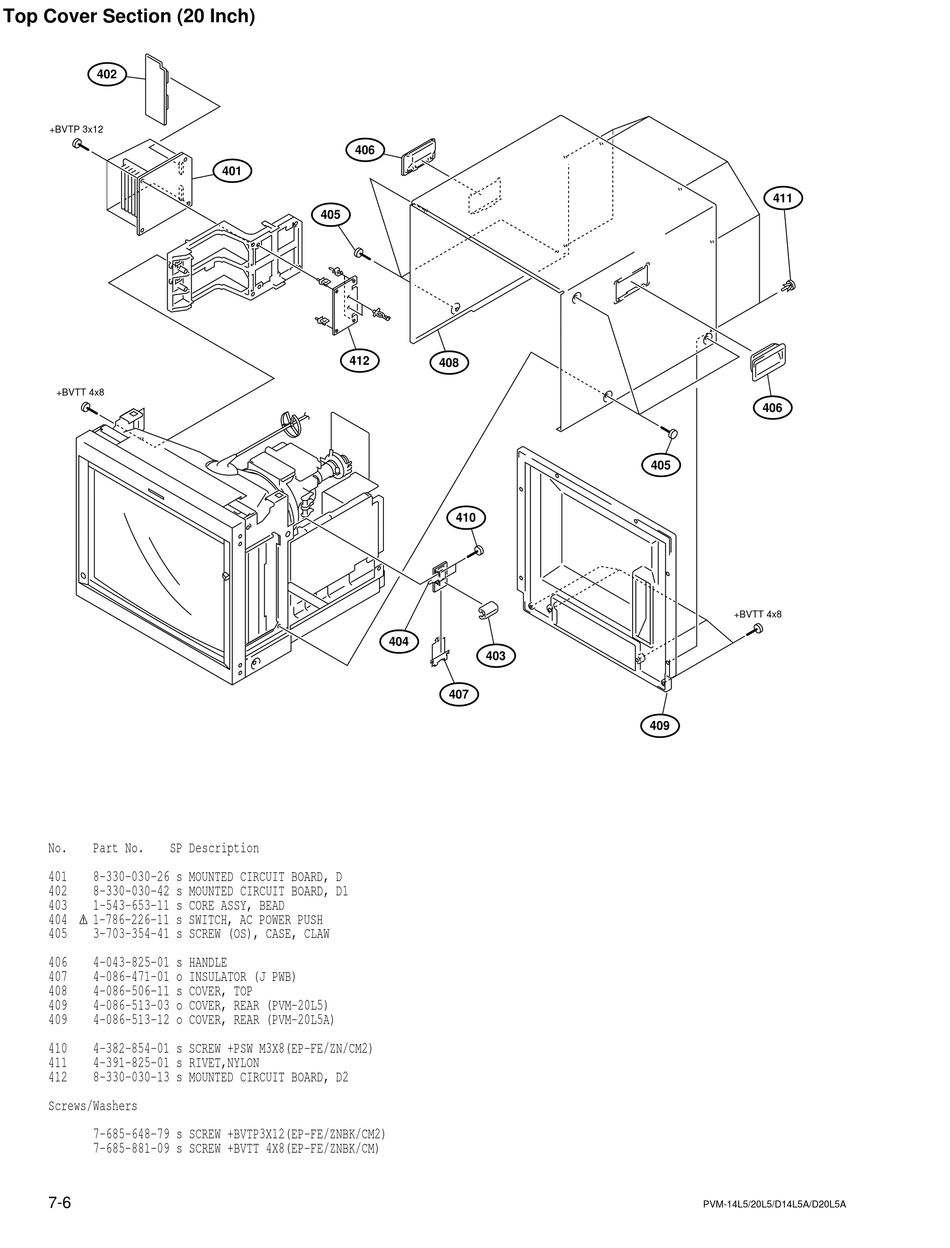

Top Cover Section (20 Inch)
402
+BVTP 3x12
+BVTT 4x8
No.
Part No.
SP Description
401
8-330-030-26 s MOUNTED CIRCUIT BOARD, D
402
8-330-030-42 s MOUNTED CIRCUIT BOARD, D1
403
1-543-653-11 s CORE ASSY, BEAD
404
!
1-786-226-11 s SWITCH, AC POWER PUSH
405
3-703-354-41 s SCREW (OS), CASE, CLAW
406
4-043-825-01 s HANDLE
407
4-086-471-01 o INSULATOR (J PWB)
408
4-086-506-11 s COVER, TOP
409
4-086-513-03 o COVER, REAR (PVM-20L5)
409
4-086-513-12 o COVER, REAR (PVM-20L5A)
410
4-382-854-01 s SCREW +PSW M3X8(EP-FE/ZN/CM2)
411
4-391-825-01 s RIVET,NYLON
412
8-330-030-13 s MOUNTED CIRCUIT BOARD, D2
Screws/Washers
7-685-648-79 s SCREW +BVTP3X12(EP-FE/ZNBK/CM2)
7-685-881-09 s SCREW +BVTT 4X8(EP-FE/ZNBK/CM)
7-6
406
401
405
412
404
408
410
403
407
411
406
405
+BVTT 4x8
409
PVM-14L5/20L5/D14L5A/D20L5A
