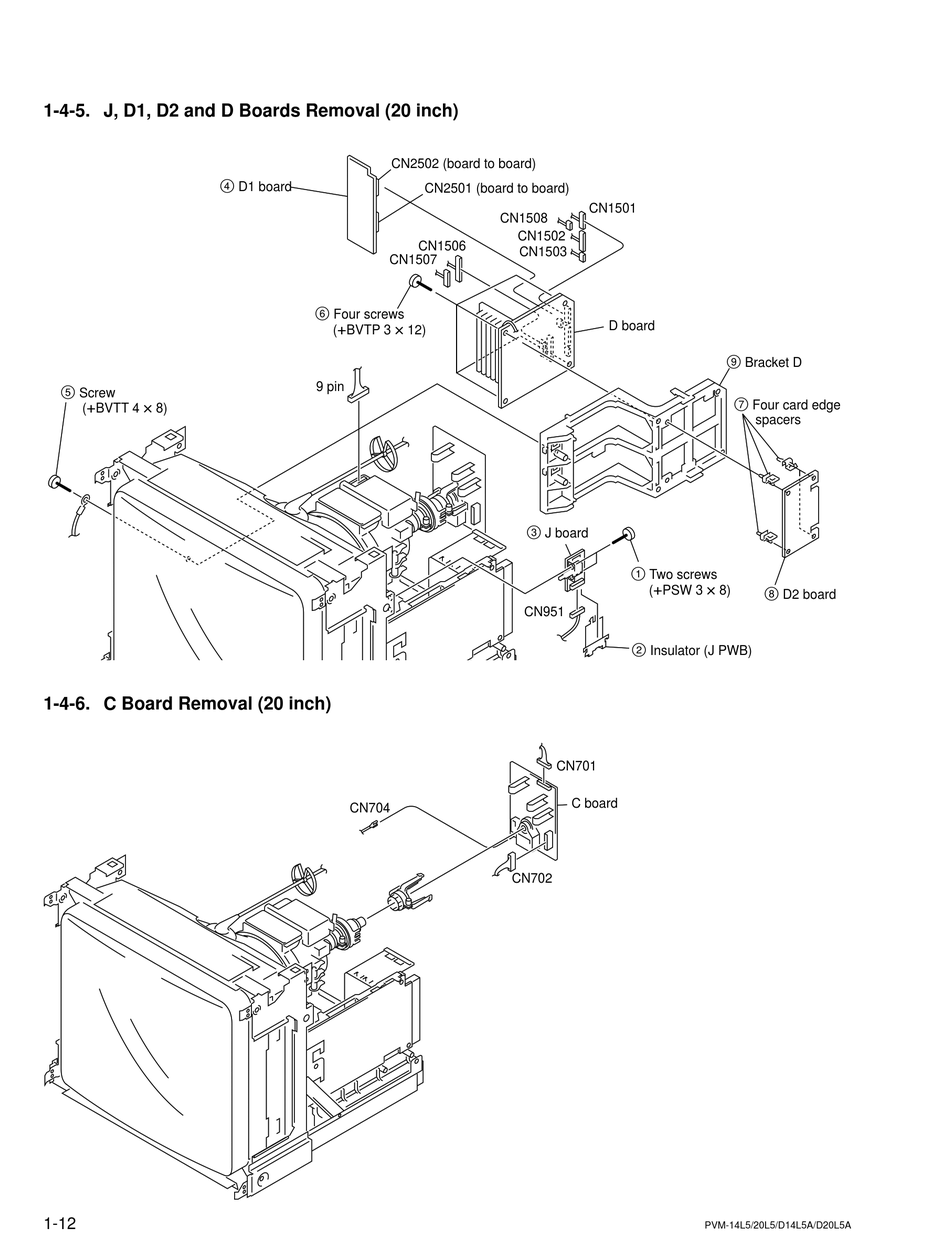

1-4-5. J, D1, D2 and D Boards Removal (20 inch)
CN2502 (board to board)
4 D1 board
CN2501 (board to board)
CN1501
CN1508
CN1502
CN1506
CN1503
CN1507
6 Four screws
D board
(+BVTP 3 x 12)
9 Bracket D
9 pin
5 Screw
7 Four card edge
(+BVTT 4 x 8)
spacers
3 J board
1 Two screws
(+PSW 3 x 8)
8 D2 board
CN951
2 Insulator (J PWB)
1-4-6. C Board Removal (20 inch)
CN701
C board
CN704
CN702
1-12
PVM-14L5/20L5/D14L5A/D20L5A
