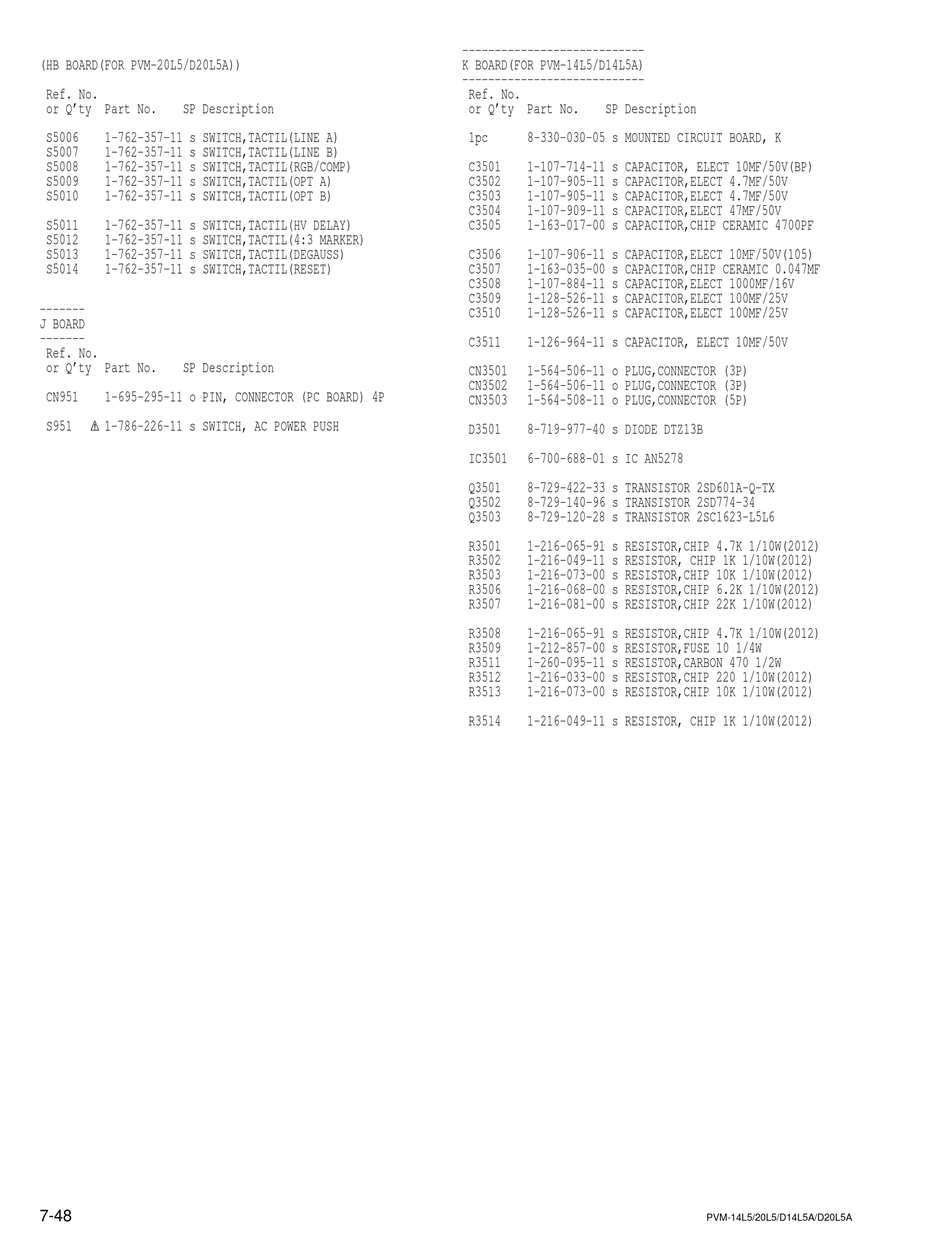

(HB BOARD(FOR PVM-20L5/D20L5A))
Ref. No.
or Q'ty Part No.
SP Description
S5006
1-762-357-11 s SWITCH,TACTIL(LINE A)
S5007
1-762-357-11 s SWITCH,TACTIL(LINE B)
S5008
1-762-357-11 s SWITCH,TACTIL(RGB/COMP)
S5009
1-762-357-11 s SWITCH,TACTIL(OPT A)
S5010
1-762-357-11 s SWITCH,TACTIL(OPT B)
S5011
1-762-357-11 s SWITCH,TACTIL(HV DELAY)
S5012
1-762-357-11 s SWITCH,TACTIL(4:3 MARKER)
S5013
1-762-357-11 s SWITCH,TACTIL(DEGAUSS)
S5014
1-762-357-11 s SWITCH,TACTIL(RESET)
-------
J BOARD
-------
Ref. No.
or Q'ty Part No.
SP Description
CN951
1-695-295-11 o PIN, CONNECTOR (PC BOARD) 4P
S951
1-786-226-11 s SWITCH, AC POWER PUSH
!
7-48
----------------------------
K BOARD(FOR PVM-14L5/D14L5A)
----------------------------
Ref. No.
or Q'ty Part No.
SP Description
1pc
8-330-030-05 s MOUNTED CIRCUIT BOARD, K
C3501
1-107-714-11 s CAPACITOR, ELECT 10MF/50V(BP)
C3502
1-107-905-11 s CAPACITOR,ELECT 4.7MF/50V
C3503
1-107-905-11 s CAPACITOR,ELECT 4.7MF/50V
C3504
1-107-909-11 s CAPACITOR,ELECT 47MF/50V
C3505
1-163-017-00 s CAPACITOR,CHIP CERAMIC 4700PF
C3506
1-107-906-11 s CAPACITOR,ELECT 10MF/50V(105)
C3507
1-163-035-00 s CAPACITOR,CHIP CERAMIC 0.047MF
C3508
1-107-884-11 s CAPACITOR,ELECT 1000MF/16V
C3509
1-128-526-11 s CAPACITOR,ELECT 100MF/25V
C3510
1-128-526-11 s CAPACITOR,ELECT 100MF/25V
C3511
1-126-964-11 s CAPACITOR, ELECT 10MF/50V
CN3501
1-564-506-11 o PLUG,CONNECTOR (3P)
CN3502
1-564-506-11 o PLUG,CONNECTOR (3P)
CN3503
1-564-508-11 o PLUG,CONNECTOR (5P)
D3501
8-719-977-40 s DIODE DTZ13B
IC3501
6-700-688-01 s IC AN5278
Q3501
8-729-422-33 s TRANSISTOR 2SD601A-Q-TX
Q3502
8-729-140-96 s TRANSISTOR 2SD774-34
Q3503
8-729-120-28 s TRANSISTOR 2SC1623-L5L6
R3501
1-216-065-91 s RESISTOR,CHIP 4.7K 1/10W(2012)
R3502
1-216-049-11 s RESISTOR, CHIP 1K 1/10W(2012)
R3503
1-216-073-00 s RESISTOR,CHIP 10K 1/10W(2012)
R3506
1-216-068-00 s RESISTOR,CHIP 6.2K 1/10W(2012)
R3507
1-216-081-00 s RESISTOR,CHIP 22K 1/10W(2012)
R3508
1-216-065-91 s RESISTOR,CHIP 4.7K 1/10W(2012)
R3509
1-212-857-00 s RESISTOR,FUSE 10 1/4W
R3511
1-260-095-11 s RESISTOR,CARBON 470 1/2W
R3512
1-216-033-00 s RESISTOR,CHIP 220 1/10W(2012)
R3513
1-216-073-00 s RESISTOR,CHIP 10K 1/10W(2012)
R3514
1-216-049-11 s RESISTOR, CHIP 1K 1/10W(2012)
PVM-14L5/20L5/D14L5A/D20L5A
