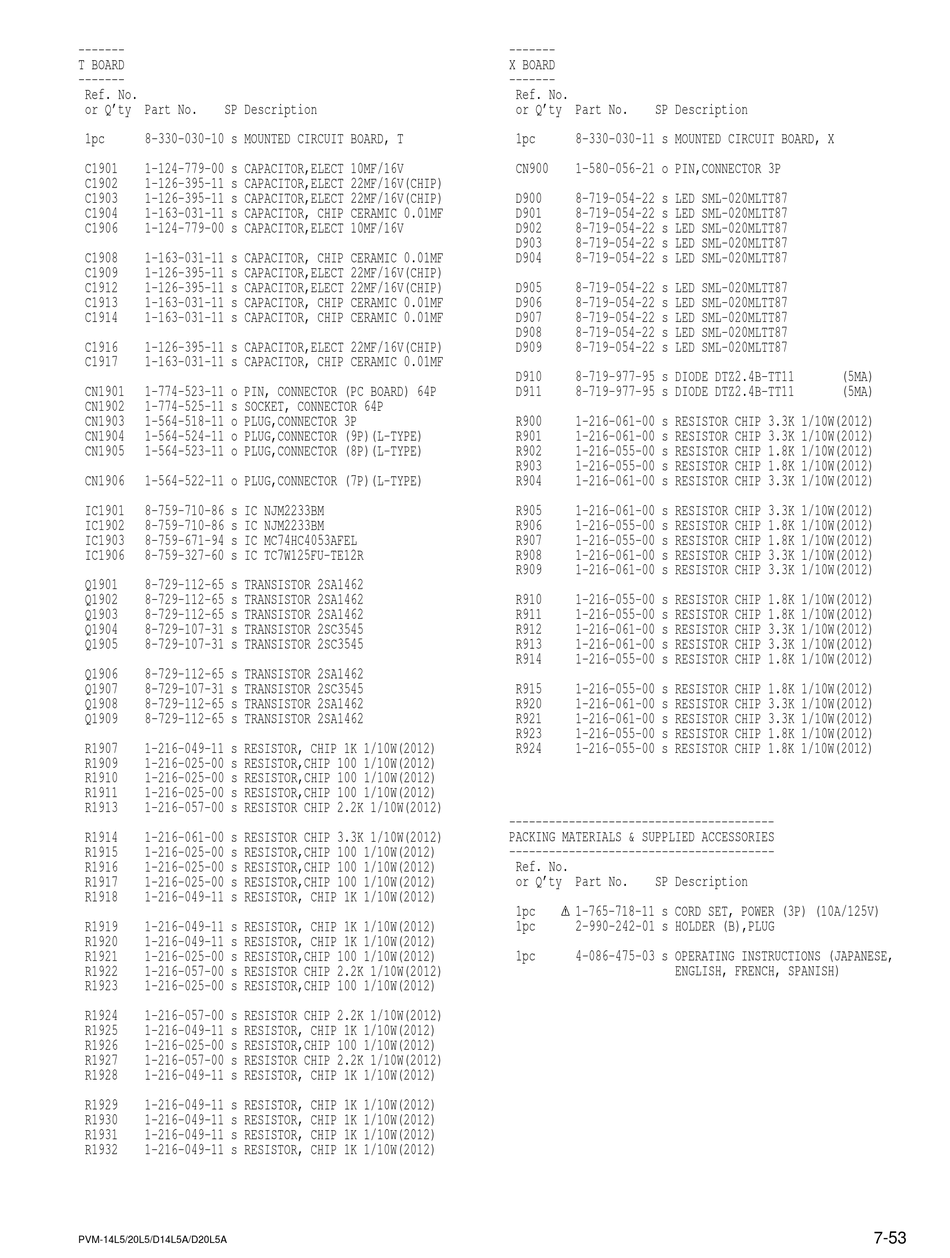

Sony TRINITRON PVM-14L5 Service Manual Page 127

Color video monitor.
Hide thumbs

Advertisement

-------
T BOARD
-------
Ref. No.
or Q'ty Part No.
SP Description
1pc
8-330-030-10 s MOUNTED CIRCUIT BOARD, T
C1901
1-124-779-00 s CAPACITOR,ELECT 10MF/16V
C1902
1-126-395-11 s CAPACITOR,ELECT 22MF/16V(CHIP)
C1903
1-126-395-11 s CAPACITOR,ELECT 22MF/16V(CHIP)
C1904
1-163-031-11 s CAPACITOR, CHIP CERAMIC 0.01MF
C1906
1-124-779-00 s CAPACITOR,ELECT 10MF/16V
C1908
1-163-031-11 s CAPACITOR, CHIP CERAMIC 0.01MF
C1909
1-126-395-11 s CAPACITOR,ELECT 22MF/16V(CHIP)
C1912
1-126-395-11 s CAPACITOR,ELECT 22MF/16V(CHIP)
C1913
1-163-031-11 s CAPACITOR, CHIP CERAMIC 0.01MF
C1914
1-163-031-11 s CAPACITOR, CHIP CERAMIC 0.01MF
C1916
1-126-395-11 s CAPACITOR,ELECT 22MF/16V(CHIP)
C1917
1-163-031-11 s CAPACITOR, CHIP CERAMIC 0.01MF
CN1901
1-774-523-11 o PIN, CONNECTOR (PC BOARD) 64P
CN1902
1-774-525-11 s SOCKET, CONNECTOR 64P
CN1903
1-564-518-11 o PLUG,CONNECTOR 3P
CN1904
1-564-524-11 o PLUG,CONNECTOR (9P)(L-TYPE)
CN1905
1-564-523-11 o PLUG,CONNECTOR (8P)(L-TYPE)
CN1906
1-564-522-11 o PLUG,CONNECTOR (7P)(L-TYPE)
IC1901
8-759-710-86 s IC NJM2233BM
IC1902
8-759-710-86 s IC NJM2233BM
IC1903
8-759-671-94 s IC MC74HC4053AFEL
IC1906
8-759-327-60 s IC TC7W125FU-TE12R
Q1901
8-729-112-65 s TRANSISTOR 2SA1462
Q1902
8-729-112-65 s TRANSISTOR 2SA1462
Q1903
8-729-112-65 s TRANSISTOR 2SA1462
Q1904
8-729-107-31 s TRANSISTOR 2SC3545
Q1905
8-729-107-31 s TRANSISTOR 2SC3545
Q1906
8-729-112-65 s TRANSISTOR 2SA1462
Q1907
8-729-107-31 s TRANSISTOR 2SC3545
Q1908
8-729-112-65 s TRANSISTOR 2SA1462
Q1909
8-729-112-65 s TRANSISTOR 2SA1462
R1907
1-216-049-11 s RESISTOR, CHIP 1K 1/10W(2012)
R1909
1-216-025-00 s RESISTOR,CHIP 100 1/10W(2012)
R1910
1-216-025-00 s RESISTOR,CHIP 100 1/10W(2012)
R1911
1-216-025-00 s RESISTOR,CHIP 100 1/10W(2012)
R1913
1-216-057-00 s RESISTOR CHIP 2.2K 1/10W(2012)
R1914
1-216-061-00 s RESISTOR CHIP 3.3K 1/10W(2012)
R1915
1-216-025-00 s RESISTOR,CHIP 100 1/10W(2012)
R1916
1-216-025-00 s RESISTOR,CHIP 100 1/10W(2012)
R1917
1-216-025-00 s RESISTOR,CHIP 100 1/10W(2012)
R1918
1-216-049-11 s RESISTOR, CHIP 1K 1/10W(2012)
R1919
1-216-049-11 s RESISTOR, CHIP 1K 1/10W(2012)
R1920
1-216-049-11 s RESISTOR, CHIP 1K 1/10W(2012)
R1921
1-216-025-00 s RESISTOR,CHIP 100 1/10W(2012)
R1922
1-216-057-00 s RESISTOR CHIP 2.2K 1/10W(2012)
R1923
1-216-025-00 s RESISTOR,CHIP 100 1/10W(2012)
R1924
1-216-057-00 s RESISTOR CHIP 2.2K 1/10W(2012)
R1925
1-216-049-11 s RESISTOR, CHIP 1K 1/10W(2012)
R1926
1-216-025-00 s RESISTOR,CHIP 100 1/10W(2012)
R1927
1-216-057-00 s RESISTOR CHIP 2.2K 1/10W(2012)
R1928
1-216-049-11 s RESISTOR, CHIP 1K 1/10W(2012)
R1929
1-216-049-11 s RESISTOR, CHIP 1K 1/10W(2012)
R1930
1-216-049-11 s RESISTOR, CHIP 1K 1/10W(2012)
R1931
1-216-049-11 s RESISTOR, CHIP 1K 1/10W(2012)
R1932
1-216-049-11 s RESISTOR, CHIP 1K 1/10W(2012)
PVM-14L5/20L5/D14L5A/D20L5A
-------
X BOARD
-------
Ref. No.
or Q'ty Part No.
SP Description
1pc
8-330-030-11 s MOUNTED CIRCUIT BOARD, X
CN900
1-580-056-21 o PIN,CONNECTOR 3P
D900
8-719-054-22 s LED SML-020MLTT87
D901
8-719-054-22 s LED SML-020MLTT87
D902
8-719-054-22 s LED SML-020MLTT87
D903
8-719-054-22 s LED SML-020MLTT87
D904
8-719-054-22 s LED SML-020MLTT87
D905
8-719-054-22 s LED SML-020MLTT87
D906
8-719-054-22 s LED SML-020MLTT87
D907
8-719-054-22 s LED SML-020MLTT87
D908
8-719-054-22 s LED SML-020MLTT87
D909
8-719-054-22 s LED SML-020MLTT87
D910
8-719-977-95 s DIODE DTZ2.4B-TT11
D911
8-719-977-95 s DIODE DTZ2.4B-TT11
R900
1-216-061-00 s RESISTOR CHIP 3.3K 1/10W(2012)
R901
1-216-061-00 s RESISTOR CHIP 3.3K 1/10W(2012)
R902
1-216-055-00 s RESISTOR CHIP 1.8K 1/10W(2012)
R903
1-216-055-00 s RESISTOR CHIP 1.8K 1/10W(2012)
R904
1-216-061-00 s RESISTOR CHIP 3.3K 1/10W(2012)
R905
1-216-061-00 s RESISTOR CHIP 3.3K 1/10W(2012)
R906
1-216-055-00 s RESISTOR CHIP 1.8K 1/10W(2012)
R907
1-216-055-00 s RESISTOR CHIP 1.8K 1/10W(2012)
R908
1-216-061-00 s RESISTOR CHIP 3.3K 1/10W(2012)
R909
1-216-061-00 s RESISTOR CHIP 3.3K 1/10W(2012)
R910
1-216-055-00 s RESISTOR CHIP 1.8K 1/10W(2012)
R911
1-216-055-00 s RESISTOR CHIP 1.8K 1/10W(2012)
R912
1-216-061-00 s RESISTOR CHIP 3.3K 1/10W(2012)
R913
1-216-061-00 s RESISTOR CHIP 3.3K 1/10W(2012)
R914
1-216-055-00 s RESISTOR CHIP 1.8K 1/10W(2012)
R915
1-216-055-00 s RESISTOR CHIP 1.8K 1/10W(2012)
R920
1-216-061-00 s RESISTOR CHIP 3.3K 1/10W(2012)
R921
1-216-061-00 s RESISTOR CHIP 3.3K 1/10W(2012)
R923
1-216-055-00 s RESISTOR CHIP 1.8K 1/10W(2012)
R924
1-216-055-00 s RESISTOR CHIP 1.8K 1/10W(2012)
----------------------------------------
PACKING MATERIALS & SUPPLIED ACCESSORIES
----------------------------------------
Ref. No.
or Q'ty Part No.
SP Description
1pc
1-765-718-11 s CORD SET, POWER (3P) (10A/125V)
!
1pc
2-990-242-01 s HOLDER (B),PLUG
1pc
4-086-475-03 s OPERATING INSTRUCTIONS (JAPANESE,
ENGLISH, FRENCH, SPANISH)
(5MA)
(5MA)
7-53
