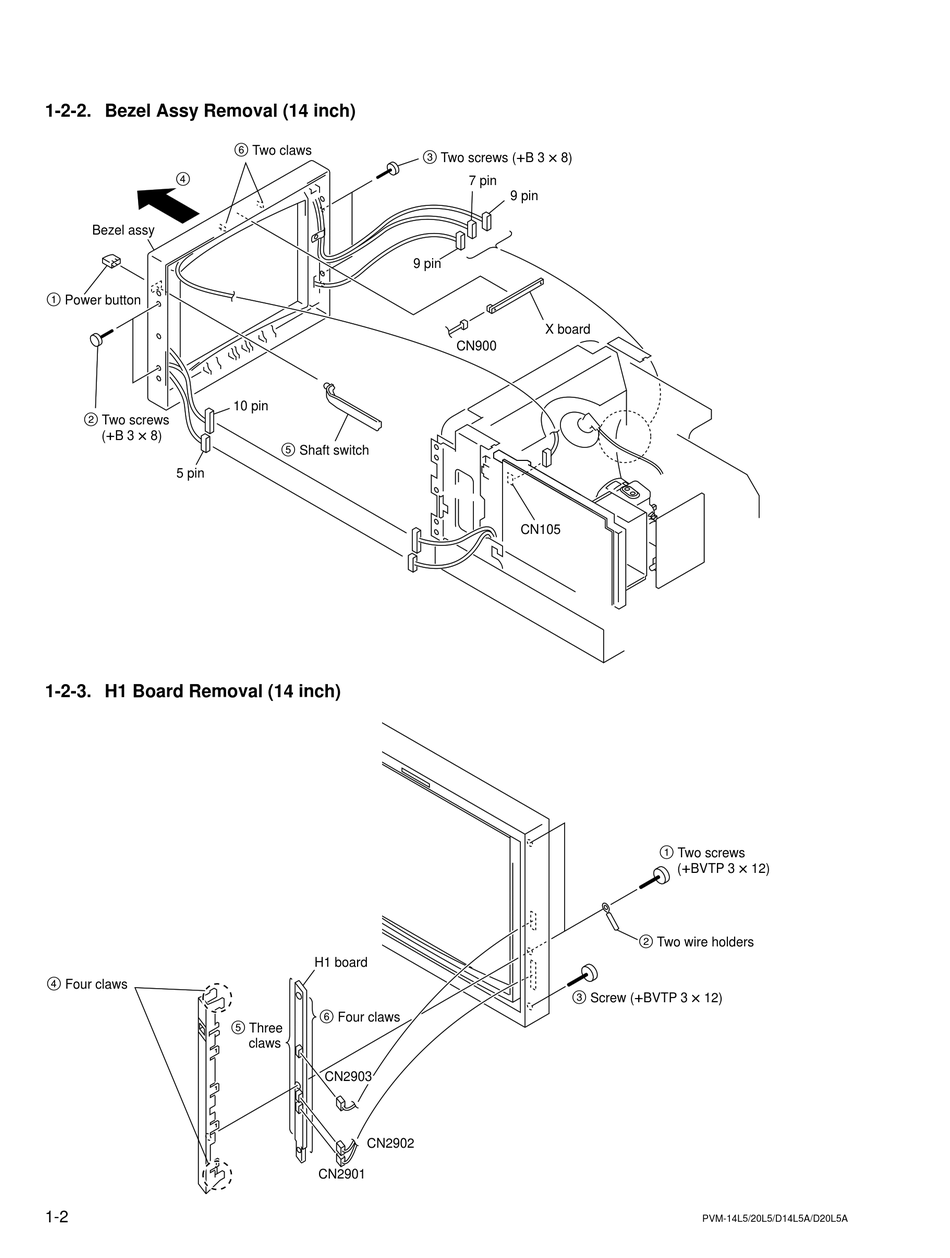

1-2-2. Bezel Assy Removal (14 inch)

4
Bezel assy
1 Power button
2 Two screws
(+B 3 x 8)
5 pin

1-2-3. H1 Board Removal (14 inch)

4 Four claws
1-2
6 Two claws
10 pin
5 Shaft switch
H1 board
6 Four claws
5 Three
claws
CN2903
CN2902
CN2901
3 Two screws (+B 3 x 8)
7 pin
9 pin
9 pin
X board
CN900
CN105
3 Screw (+BVTP 3 x 12)
1 Two screws
(+BVTP 3 x 12)
2 Two wire holders
PVM-14L5/20L5/D14L5A/D20L5A
