Sony TRINITRON PVM-14L5 Service Manual Page 105

Color video monitor.
Hide thumbs

Advertisement

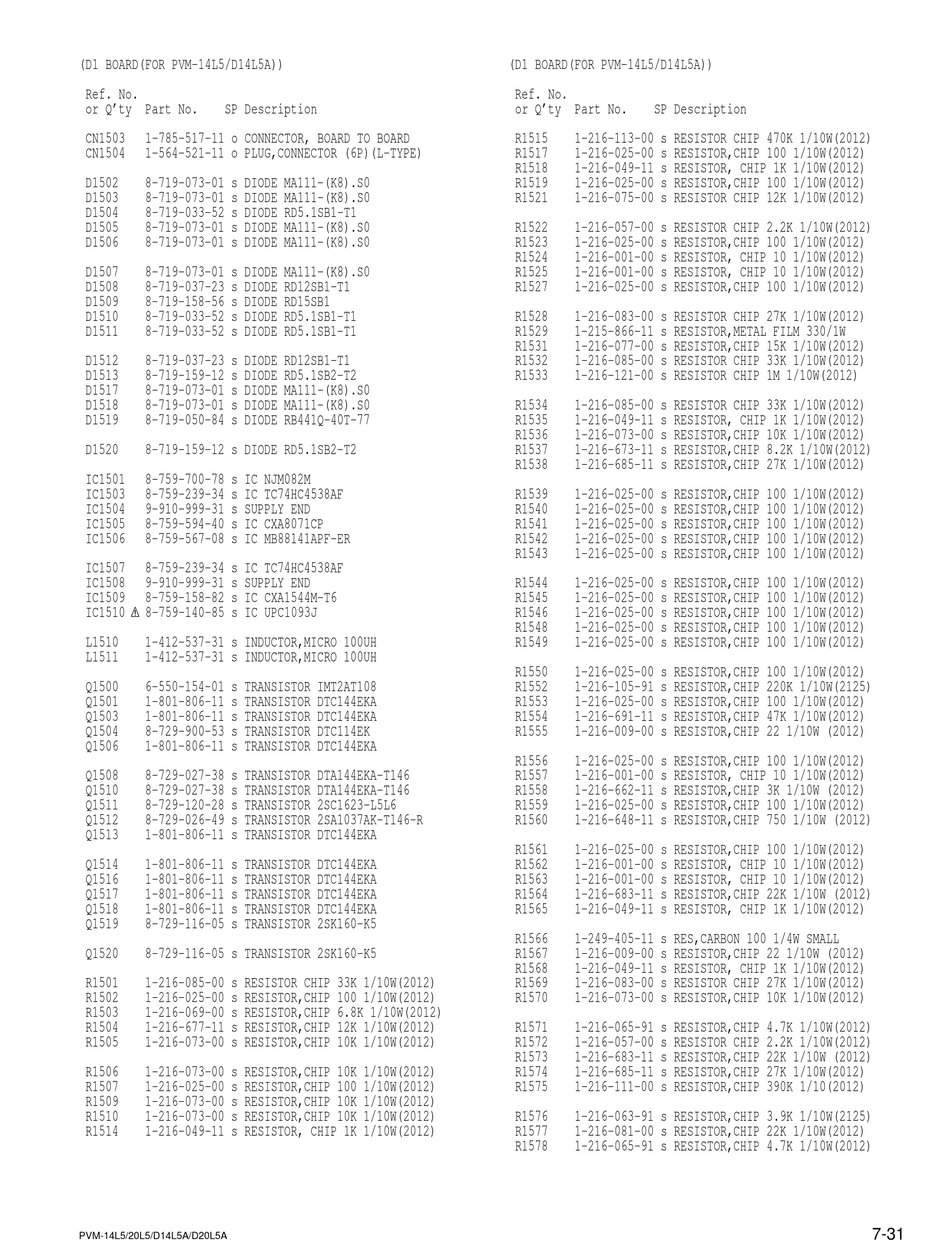

(D1 BOARD(FOR PVM-14L5/D14L5A))
Ref. No.
or Q'ty Part No.
SP Description
CN1503
1-785-517-11 o CONNECTOR, BOARD TO BOARD
CN1504
1-564-521-11 o PLUG,CONNECTOR (6P)(L-TYPE)
D1502
8-719-073-01 s DIODE MA111-(K8).S0
D1503
8-719-073-01 s DIODE MA111-(K8).S0
D1504
8-719-033-52 s DIODE RD5.1SB1-T1
D1505
8-719-073-01 s DIODE MA111-(K8).S0
D1506
8-719-073-01 s DIODE MA111-(K8).S0
D1507
8-719-073-01 s DIODE MA111-(K8).S0
D1508
8-719-037-23 s DIODE RD12SB1-T1
D1509
8-719-158-56 s DIODE RD15SB1
D1510
8-719-033-52 s DIODE RD5.1SB1-T1
D1511
8-719-033-52 s DIODE RD5.1SB1-T1
D1512
8-719-037-23 s DIODE RD12SB1-T1
D1513
8-719-159-12 s DIODE RD5.1SB2-T2
D1517
8-719-073-01 s DIODE MA111-(K8).S0
D1518
8-719-073-01 s DIODE MA111-(K8).S0
D1519
8-719-050-84 s DIODE RB441Q-40T-77
D1520
8-719-159-12 s DIODE RD5.1SB2-T2
IC1501
8-759-700-78 s IC NJM082M
IC1503
8-759-239-34 s IC TC74HC4538AF
IC1504
9-910-999-31 s SUPPLY END
IC1505
8-759-594-40 s IC CXA8071CP
IC1506
8-759-567-08 s IC MB88141APF-ER
IC1507
8-759-239-34 s IC TC74HC4538AF
IC1508
9-910-999-31 s SUPPLY END
IC1509
8-759-158-82 s IC CXA1544M-T6
IC1510
!
8-759-140-85 s IC UPC1093J
L1510
1-412-537-31 s INDUCTOR,MICRO 100UH
L1511
1-412-537-31 s INDUCTOR,MICRO 100UH
Q1500
6-550-154-01 s TRANSISTOR IMT2AT108
Q1501
1-801-806-11 s TRANSISTOR DTC144EKA
Q1503
1-801-806-11 s TRANSISTOR DTC144EKA
Q1504
8-729-900-53 s TRANSISTOR DTC114EK
Q1506
1-801-806-11 s TRANSISTOR DTC144EKA
Q1508
8-729-027-38 s TRANSISTOR DTA144EKA-T146
Q1510
8-729-027-38 s TRANSISTOR DTA144EKA-T146
Q1511
8-729-120-28 s TRANSISTOR 2SC1623-L5L6
Q1512
8-729-026-49 s TRANSISTOR 2SA1037AK-T146-R
Q1513
1-801-806-11 s TRANSISTOR DTC144EKA
Q1514
1-801-806-11 s TRANSISTOR DTC144EKA
Q1516
1-801-806-11 s TRANSISTOR DTC144EKA
Q1517
1-801-806-11 s TRANSISTOR DTC144EKA
Q1518
1-801-806-11 s TRANSISTOR DTC144EKA
Q1519
8-729-116-05 s TRANSISTOR 2SK160-K5
Q1520
8-729-116-05 s TRANSISTOR 2SK160-K5
R1501
1-216-085-00 s RESISTOR CHIP 33K 1/10W(2012)
R1502
1-216-025-00 s RESISTOR,CHIP 100 1/10W(2012)
R1503
1-216-069-00 s RESISTOR,CHIP 6.8K 1/10W(2012)
R1504
1-216-677-11 s RESISTOR,CHIP 12K 1/10W(2012)
R1505
1-216-073-00 s RESISTOR,CHIP 10K 1/10W(2012)
R1506
1-216-073-00 s RESISTOR,CHIP 10K 1/10W(2012)
R1507
1-216-025-00 s RESISTOR,CHIP 100 1/10W(2012)
R1509
1-216-073-00 s RESISTOR,CHIP 10K 1/10W(2012)
R1510
1-216-073-00 s RESISTOR,CHIP 10K 1/10W(2012)
R1514
1-216-049-11 s RESISTOR, CHIP 1K 1/10W(2012)
PVM-14L5/20L5/D14L5A/D20L5A
(D1 BOARD(FOR PVM-14L5/D14L5A))
Ref. No.
or Q'ty Part No.
SP Description
R1515
1-216-113-00 s RESISTOR CHIP 470K 1/10W(2012)
R1517
1-216-025-00 s RESISTOR,CHIP 100 1/10W(2012)
R1518
1-216-049-11 s RESISTOR, CHIP 1K 1/10W(2012)
R1519
1-216-025-00 s RESISTOR,CHIP 100 1/10W(2012)
R1521
1-216-075-00 s RESISTOR CHIP 12K 1/10W(2012)
R1522
1-216-057-00 s RESISTOR CHIP 2.2K 1/10W(2012)
R1523
1-216-025-00 s RESISTOR,CHIP 100 1/10W(2012)
R1524
1-216-001-00 s RESISTOR, CHIP 10 1/10W(2012)
R1525
1-216-001-00 s RESISTOR, CHIP 10 1/10W(2012)
R1527
1-216-025-00 s RESISTOR,CHIP 100 1/10W(2012)
R1528
1-216-083-00 s RESISTOR CHIP 27K 1/10W(2012)
R1529
1-215-866-11 s RESISTOR,METAL FILM 330/1W
R1531
1-216-077-00 s RESISTOR,CHIP 15K 1/10W(2012)
R1532
1-216-085-00 s RESISTOR CHIP 33K 1/10W(2012)
R1533
1-216-121-00 s RESISTOR CHIP 1M 1/10W(2012)
R1534
1-216-085-00 s RESISTOR CHIP 33K 1/10W(2012)
R1535
1-216-049-11 s RESISTOR, CHIP 1K 1/10W(2012)
R1536
1-216-073-00 s RESISTOR,CHIP 10K 1/10W(2012)
R1537
1-216-673-11 s RESISTOR,CHIP 8.2K 1/10W(2012)
R1538
1-216-685-11 s RESISTOR,CHIP 27K 1/10W(2012)
R1539
1-216-025-00 s RESISTOR,CHIP 100 1/10W(2012)
R1540
1-216-025-00 s RESISTOR,CHIP 100 1/10W(2012)
R1541
1-216-025-00 s RESISTOR,CHIP 100 1/10W(2012)
R1542
1-216-025-00 s RESISTOR,CHIP 100 1/10W(2012)
R1543
1-216-025-00 s RESISTOR,CHIP 100 1/10W(2012)
R1544
1-216-025-00 s RESISTOR,CHIP 100 1/10W(2012)
R1545
1-216-025-00 s RESISTOR,CHIP 100 1/10W(2012)
R1546
1-216-025-00 s RESISTOR,CHIP 100 1/10W(2012)
R1548
1-216-025-00 s RESISTOR,CHIP 100 1/10W(2012)
R1549
1-216-025-00 s RESISTOR,CHIP 100 1/10W(2012)
R1550
1-216-025-00 s RESISTOR,CHIP 100 1/10W(2012)
R1552
1-216-105-91 s RESISTOR,CHIP 220K 1/10W(2125)
R1553
1-216-025-00 s RESISTOR,CHIP 100 1/10W(2012)
R1554
1-216-691-11 s RESISTOR,CHIP 47K 1/10W(2012)
R1555
1-216-009-00 s RESISTOR,CHIP 22 1/10W (2012)
R1556
1-216-025-00 s RESISTOR,CHIP 100 1/10W(2012)
R1557
1-216-001-00 s RESISTOR, CHIP 10 1/10W(2012)
R1558
1-216-662-11 s RESISTOR,CHIP 3K 1/10W (2012)
R1559
1-216-025-00 s RESISTOR,CHIP 100 1/10W(2012)
R1560
1-216-648-11 s RESISTOR,CHIP 750 1/10W (2012)
R1561
1-216-025-00 s RESISTOR,CHIP 100 1/10W(2012)
R1562
1-216-001-00 s RESISTOR, CHIP 10 1/10W(2012)
R1563
1-216-001-00 s RESISTOR, CHIP 10 1/10W(2012)
R1564
1-216-683-11 s RESISTOR,CHIP 22K 1/10W (2012)
R1565
1-216-049-11 s RESISTOR, CHIP 1K 1/10W(2012)
R1566
1-249-405-11 s RES,CARBON 100 1/4W SMALL
R1567
1-216-009-00 s RESISTOR,CHIP 22 1/10W (2012)
R1568
1-216-049-11 s RESISTOR, CHIP 1K 1/10W(2012)
R1569
1-216-083-00 s RESISTOR CHIP 27K 1/10W(2012)
R1570
1-216-073-00 s RESISTOR,CHIP 10K 1/10W(2012)
R1571
1-216-065-91 s RESISTOR,CHIP 4.7K 1/10W(2012)
R1572
1-216-057-00 s RESISTOR CHIP 2.2K 1/10W(2012)
R1573
1-216-683-11 s RESISTOR,CHIP 22K 1/10W (2012)
R1574
1-216-685-11 s RESISTOR,CHIP 27K 1/10W(2012)
R1575
1-216-111-00 s RESISTOR,CHIP 390K 1/10(2012)
R1576
1-216-063-91 s RESISTOR,CHIP 3.9K 1/10W(2125)
R1577
1-216-081-00 s RESISTOR,CHIP 22K 1/10W(2012)
R1578
1-216-065-91 s RESISTOR,CHIP 4.7K 1/10W(2012)
7-31
