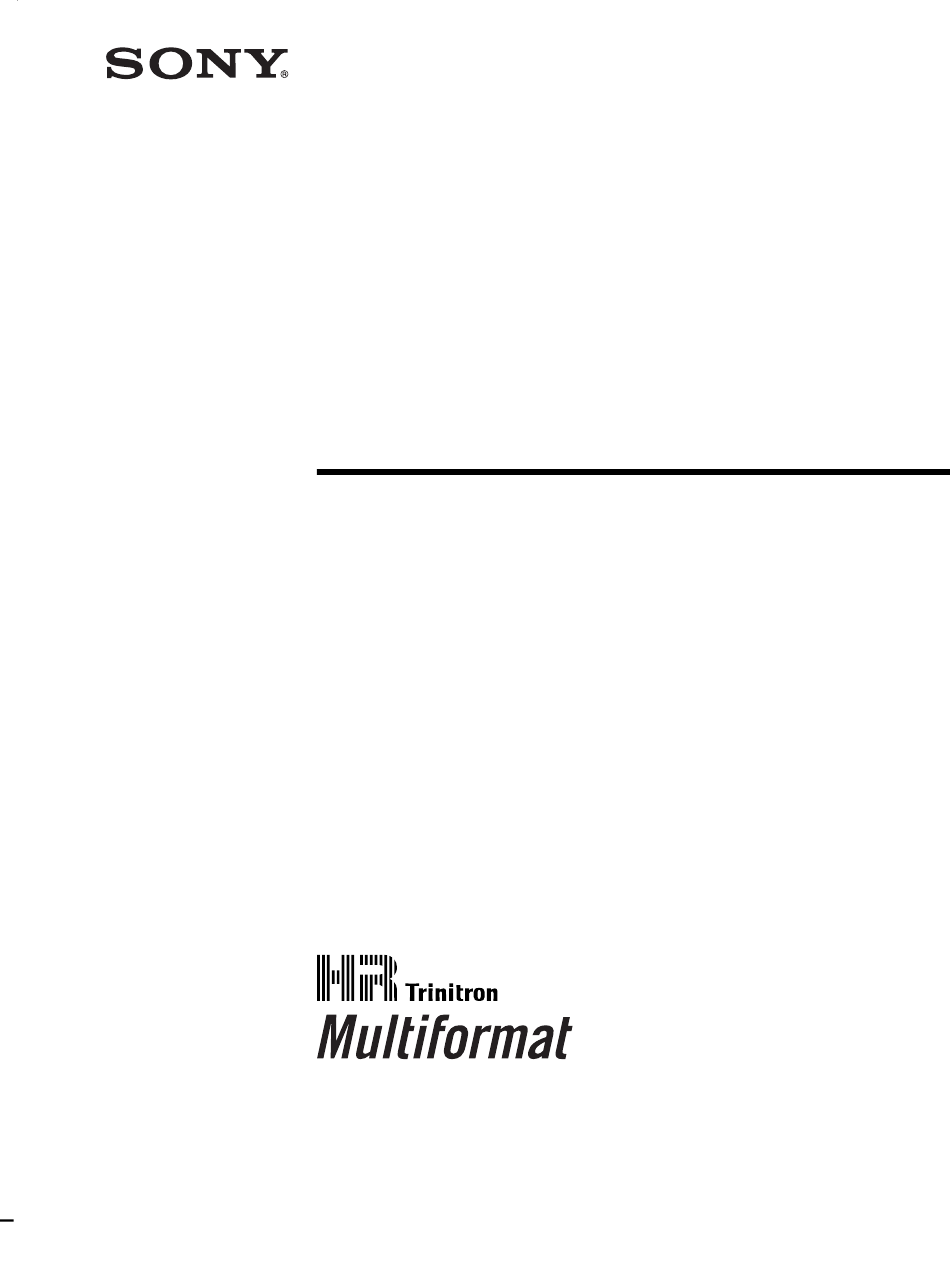

Trinitron
Color Video Monitor
Operating Instructions
Before operating the unit, please read this manual
thoroughly and retain it for future reference.
PVM-D14L5A
PVM-D20L5A
 2002 Sony Corporation
®
4-089-510-12 (1)
FR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Trinitron PVM-D14L5A and is the answer not in the manual?

Questions and answers

Summary of Contents for Sony Trinitron PVM-D14L5A

  • Page 1 4-089-510-12 (1) Trinitron ® Color Video Monitor Operating Instructions Before operating the unit, please read this manual thoroughly and retain it for future reference. PVM-D14L5A PVM-D20L5A  2002 Sony Corporation...
  • Page 2 Do not open the cabinet. Refer servicing to qualified personnel only. In the event of a malfunction or when maintenance is necessary, consult an authorized Sony dealer. ATTENTION – When the product is installed in a rack: a) Elevated operating ambient temperature...
  • Page 3: Precaution

    • Disconnect the power cord from the AC outlet by If you have any questions about this unit, contact your grasping the plug, not by pulling the cord. authorized Sony dealer. • The socket-outlet shall be installed near the equipment and shall be easily accessible.
  • Page 4: Table Of Contents

    Table of contents Precaution ................3 Features ................5 Connections ............... 7 How to Connect the AC Power Cord ........7 How to Connect a Cable to a BNC Connector......7 Location and Function of Parts and Controls ....8 Control Panels ................. 8 Rear Panel ................
  • Page 5: Features

    These are caused by an internal test signal, COMP input switch button. rather than the input signal. Horizontal/vertical delay mode The horizontal and vertical sync signals can be monitored simultaneously in the H/V delay mode.......................................... 1) “Trinitron” is a registered trademark of Sony Corporation.
  • Page 6 Features Internal Caption Vision (Closed Caption) Decoder When the image signals with caption vision signals are input, the English subtitles are superimposed and displayed on the screen. You can select the caption ON/OFF and the caption type in the menu. Auto/manual degaussing The CRT is automatically degaussed when the power is turned on.
  • Page 7: Connections

    Connections To remove the AC power cord How to Connect the AC Power Cord Pull out the AC plug holder while pressing the lock levers. Connect the AC power cord (supplied) to the AC IN socket on the rear panel and to a wall outlet. How to Connect a Cable to a BNC Connector Connect a coaxial cable with the BNC plugs to the...
  • Page 8: Location And Function Of Parts And Controls

    Location and Function of Parts and Controls Location and Function of Parts and Controls Control Panels LINE LINE CONTROL RGB/ COMP OPTION VOLUME OPTION SYNC CONTRAST UNDER SCAN PHASE 16:9 BLUE ONLY MONO CHROMA DELAY MARKER BRIGHT DEGAUSS MENU RESET DOWN ENTER 1 POWER switch ( )
  • Page 9 9 UP button ql UNDER SCAN button Down button Press this button (light on) for underscanning. Use these buttons to select an item from a menu or The display size is reduced by approximately 5% so adjust the values. If the menu is not displayed, you can that four corners of the raster are visible.
  • Page 10: Rear Panel

    Location and Function of Parts and Controls Rear Panel AC IN LINE A LINE B PARALLEL REMOTE OPTION AUDIO INPUT RGB/COMPONENT SERIAL REMOTE VIDEO VIDEO SYNC AUDIO AUDIO AUDIO Y/C IN (4-pin mini-DIN) 1 Option slot Connect to the Y/C separate output of a VCR, You can insert an option board into this option slot.
  • Page 11 4 LINE B connectors To monitor the component signal Line input connectors for the composite video and Connect to the component signal outputs of a Sony audio signals and their loop-through output connectors. Betacam video camera, etc. To monitor the input signal through these connectors, press the LINE B select button on the front panel.
  • Page 12 Location and Function of Parts and Controls 6 EXT SYNC (external sync) connectors 9 SERIAL REMOTE connector (D-sub 9 pins) Press the EXT SYNC button on the front panel (the indicator lights in amber) to use the sync signal SERIAL REMOTE IN through this connector.
  • Page 13: Selecting The Menu Language

    Selecting the Menu Language You can select one of six languages (English, German, French, Italian, Spanish, Japanese) for displaying the menu and other on-screen displays. The factory setting is ENGLISH (English). MENU 3,4,5 DOWN ENTER Press the UP or DOWN button to select Press the POWER switch to turn on the monitor.
  • Page 14: Using The Menu

    Using the Menu The monitor is equipped with an on-screen menu for When changing the setting: making various adjustments and settings such as Press the UP or DOWN button to change the picture control, input setting, set setting change, etc. setting.
  • Page 15: Display List

    Display List STATUS menu S T A T U S F O R M A T C O M P O N E N T 1 0 8 0 / 6 0 I C O L O R T E M P D 6 5 C O M P L E V E L...
  • Page 16 Display List USER CONFIG 1/2, 2/2 menu (USER CONFIG 1/2 menu) (USER CONFIG 2/2 menu) U S E R C O N F I G 1 / 2 U S E R C O N F I G 2 / 2 ·...
  • Page 17: Status Menu

    COLOR TEMP/BAL STATUS Menu Menu The COLOR TEMP/BAL menu is used for adjusting The STATUS menu is used to display the current the picture white balance. status of the monitor. The following items are You need to use the measurement instrument to adjust displayed: the white balance.
  • Page 18: User Control 1/2, 2/2 Menu

    USER CONTROL 1/2, 2/2 Menu The USER CONTROL 1/2, 2/2 menu is used for SUB CONTROL adjusting the picture. Items that cannot be adjusted depending on the input You can finely adjust the adjustment range of buttons signal are displayed in blue. on the right-side of the front panel;...
  • Page 19: User Config 1/2, 2/2 Menu

    USER CONFIG 1/2, 2/2 Menu You can select a language, RGB and component. CAPTION The settings in parentheses [ ] are factory settings. Select the caption display mode from among the followings: RGB/COMP SEL OFF, CAPTION 1, CAPTION 2, TEXT 1 and TEXT 2. To monitor the signal fed through the RGB/ [OFF] COMPONENT connectors, set the RGB or COMP...
  • Page 20: Remote 1/2 Parallel Menu

    REMOTE 1/2 PARALLEL Menu Select the PARALLEL REMOTE connector pins for GROUP ADDRESS which you want to change the function. Set the monitor group address number. You can set You can assign various functions to 1 to 4 pins and 6 within 0 to 99.
  • Page 21: Option Config Menu

    OPTION CONFIG Menu Sets the option boards installed in the rear. Depending When installing the optional board BKM- on the installed board, the displayed screen may differ. 155DV: If no board is installed, the item settings are not O P T I O N C O N F I G displayed.
  • Page 22: Key Protect Menu

    KEY PROTECT Menu Troubleshooting You can lock the settings so that they cannot be This section may help you isolate the cause of a changed by an unauthorized user. problem and as a result, eliminate the need to contact Select OFF or ON. technical support.
  • Page 23: Specifications

    Specifications General System Frame Total lines Active lines Scanning Aspect System rate Standard per frame per frame format ratio (Hz) 575/50I (PAL) 2:1 Interlace 16:9/4:3 ITU 601 480/60I (NTSC) 2:1 Interlace 16:9/4:3 ITU 601 576/50P Progressive 16:9/4:3 — 480/60P Progressive 16:9/4:3 SMPTE 293M 1080/50I...
  • Page 24 Specifications Externally synchronized input Video signal BNC type (1) 0.3 to 8 Vp-p ± bipolarity ternary or negative Frequency response polarity binary 575/50I, 480/60I component inputs: 50 Hz to 10 MHz, (0 dB/–3 dB) Optional AUDIO input RGB inputs: Pin jack (2) –5 dBu 47 kΩ or 48 Hz to 24 MHz, (0 dB/ –3 dB) higher Aperture compensation...
  • Page 25 Operating conditions Pin assignment Temperature 0°C to 35°C (32°F to 95°F) Y/C IN connector (4-pin mini-DIN) Humidity 30% to 85% (no condensation) Pressure 700 hPa to 1060 hPa Storage and transport conditions Temperature –10°C to 40°C (14°F to 104°F) Humidity 0% to 90% Pin No.
  • Page 26 Specifications Dimensions PVM-D14L5A Rear Front 280 (11 345.6 (13 260 (10 Side 424 (16 280 (11 φ 16 ( 240 (9 83.9 (3 260 (10 Unit: mm (inches)
  • Page 27 PVM-D20L5A Front Rear 406 (16) 340 (13 452.2 (17 Side 406 (16) 500 (19 φ 16 ( 46.2 340 (13 340 (13 Unit: mm (inches)
  • Page 28 Printed in Japan...
