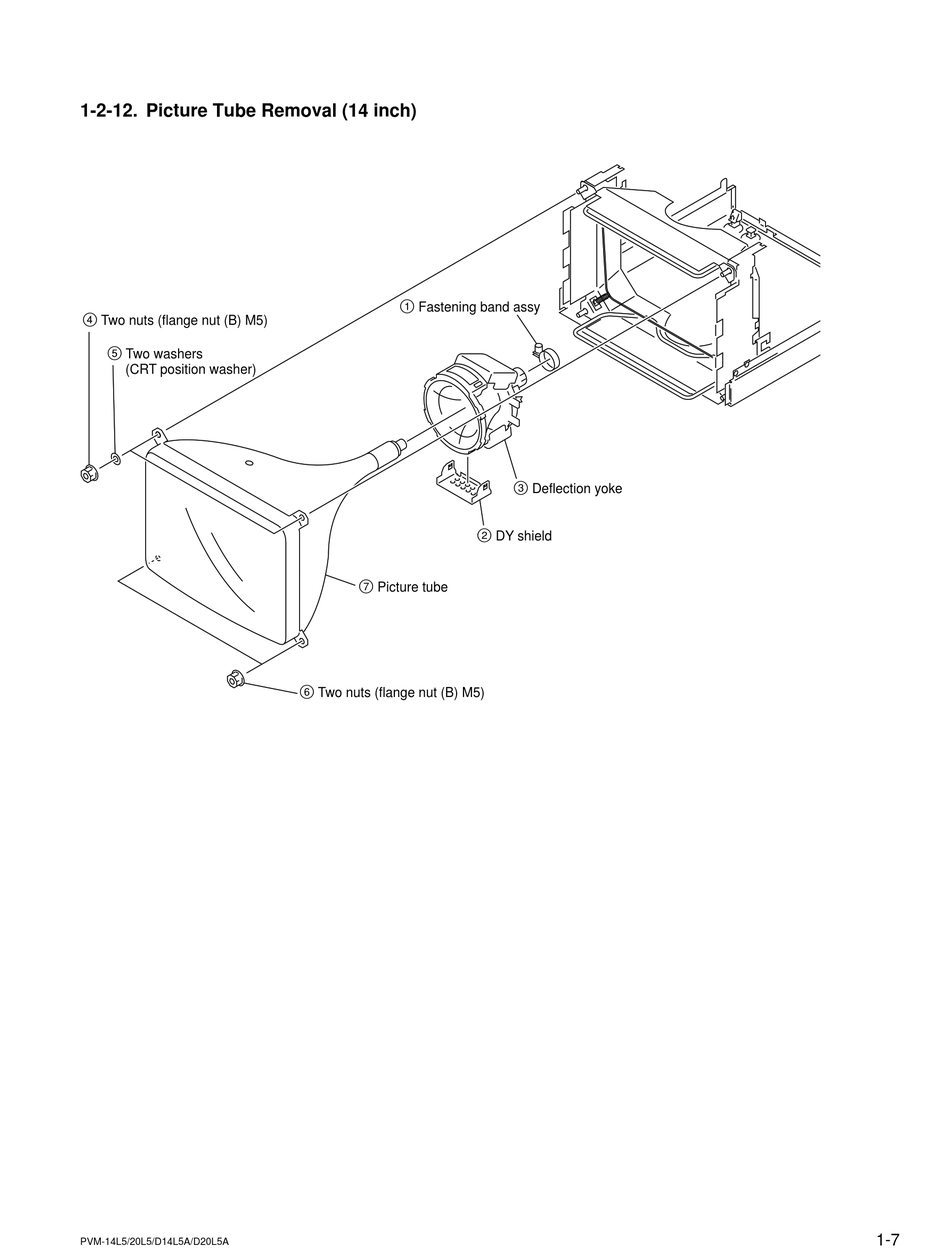

1-2-12. Picture Tube Removal (14 inch)

1 Fastening band assy
4 Two nuts (flange nut (B) M5)
5 Two washers
(CRT position washer)
3 Deflection yoke
2 DY shield
7 Picture tube
6 Two nuts (flange nut (B) M5)
1-7
PVM-14L5/20L5/D14L5A/D20L5A
