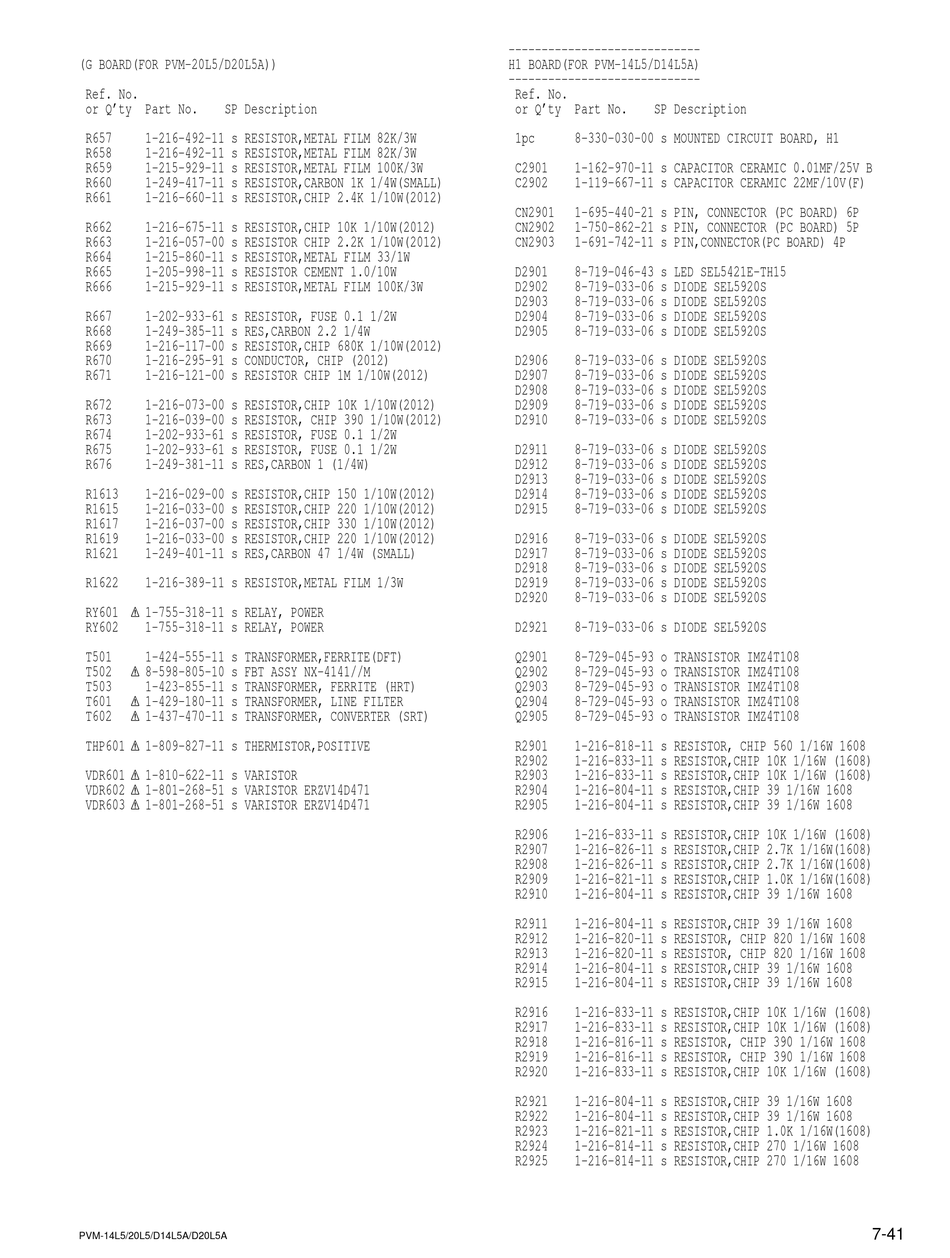

(G BOARD(FOR PVM-20L5/D20L5A))
Ref. No.
or Q'ty Part No.
SP Description
R657
1-216-492-11 s RESISTOR,METAL FILM 82K/3W
R658
1-216-492-11 s RESISTOR,METAL FILM 82K/3W
R659
1-215-929-11 s RESISTOR,METAL FILM 100K/3W
R660
1-249-417-11 s RESISTOR,CARBON 1K 1/4W(SMALL)
R661
1-216-660-11 s RESISTOR,CHIP 2.4K 1/10W(2012)
R662
1-216-675-11 s RESISTOR,CHIP 10K 1/10W(2012)
R663
1-216-057-00 s RESISTOR CHIP 2.2K 1/10W(2012)
R664
1-215-860-11 s RESISTOR,METAL FILM 33/1W
R665
1-205-998-11 s RESISTOR CEMENT 1.0/10W
R666
1-215-929-11 s RESISTOR,METAL FILM 100K/3W
R667
1-202-933-61 s RESISTOR, FUSE 0.1 1/2W
R668
1-249-385-11 s RES,CARBON 2.2 1/4W
R669
1-216-117-00 s RESISTOR,CHIP 680K 1/10W(2012)
R670
1-216-295-91 s CONDUCTOR, CHIP (2012)
R671
1-216-121-00 s RESISTOR CHIP 1M 1/10W(2012)
R672
1-216-073-00 s RESISTOR,CHIP 10K 1/10W(2012)
R673
1-216-039-00 s RESISTOR, CHIP 390 1/10W(2012)
R674
1-202-933-61 s RESISTOR, FUSE 0.1 1/2W
R675
1-202-933-61 s RESISTOR, FUSE 0.1 1/2W
R676
1-249-381-11 s RES,CARBON 1 (1/4W)
R1613
1-216-029-00 s RESISTOR,CHIP 150 1/10W(2012)
R1615
1-216-033-00 s RESISTOR,CHIP 220 1/10W(2012)
R1617
1-216-037-00 s RESISTOR,CHIP 330 1/10W(2012)
R1619
1-216-033-00 s RESISTOR,CHIP 220 1/10W(2012)
R1621
1-249-401-11 s RES,CARBON 47 1/4W (SMALL)
R1622
1-216-389-11 s RESISTOR,METAL FILM 1/3W
RY601
!
1-755-318-11 s RELAY, POWER
RY602
1-755-318-11 s RELAY, POWER
T501
1-424-555-11 s TRANSFORMER,FERRITE(DFT)
T502
8-598-805-10 s FBT ASSY NX-4141//M
!
T503
1-423-855-11 s TRANSFORMER, FERRITE (HRT)
T601
1-429-180-11 s TRANSFORMER, LINE FILTER
!
T602
1-437-470-11 s TRANSFORMER, CONVERTER (SRT)
!
THP601
1-809-827-11 s THERMISTOR,POSITIVE
!
VDR601
1-810-622-11 s VARISTOR
!
VDR602
!
1-801-268-51 s VARISTOR ERZV14D471
VDR603
!
1-801-268-51 s VARISTOR ERZV14D471
PVM-14L5/20L5/D14L5A/D20L5A
-----------------------------
H1 BOARD(FOR PVM-14L5/D14L5A)
-----------------------------
Ref. No.
or Q'ty Part No.
SP Description
1pc
8-330-030-00 s MOUNTED CIRCUIT BOARD, H1
C2901
1-162-970-11 s CAPACITOR CERAMIC 0.01MF/25V B
C2902
1-119-667-11 s CAPACITOR CERAMIC 22MF/10V(F)
CN2901
1-695-440-21 s PIN, CONNECTOR (PC BOARD) 6P
CN2902
1-750-862-21 s PIN, CONNECTOR (PC BOARD) 5P
CN2903
1-691-742-11 s PIN,CONNECTOR(PC BOARD) 4P
D2901
8-719-046-43 s LED SEL5421E-TH15
D2902
8-719-033-06 s DIODE SEL5920S
D2903
8-719-033-06 s DIODE SEL5920S
D2904
8-719-033-06 s DIODE SEL5920S
D2905
8-719-033-06 s DIODE SEL5920S
D2906
8-719-033-06 s DIODE SEL5920S
D2907
8-719-033-06 s DIODE SEL5920S
D2908
8-719-033-06 s DIODE SEL5920S
D2909
8-719-033-06 s DIODE SEL5920S
D2910
8-719-033-06 s DIODE SEL5920S
D2911
8-719-033-06 s DIODE SEL5920S
D2912
8-719-033-06 s DIODE SEL5920S
D2913
8-719-033-06 s DIODE SEL5920S
D2914
8-719-033-06 s DIODE SEL5920S
D2915
8-719-033-06 s DIODE SEL5920S
D2916
8-719-033-06 s DIODE SEL5920S
D2917
8-719-033-06 s DIODE SEL5920S
D2918
8-719-033-06 s DIODE SEL5920S
D2919
8-719-033-06 s DIODE SEL5920S
D2920
8-719-033-06 s DIODE SEL5920S
D2921
8-719-033-06 s DIODE SEL5920S
Q2901
8-729-045-93 o TRANSISTOR IMZ4T108
Q2902
8-729-045-93 o TRANSISTOR IMZ4T108
Q2903
8-729-045-93 o TRANSISTOR IMZ4T108
Q2904
8-729-045-93 o TRANSISTOR IMZ4T108
Q2905
8-729-045-93 o TRANSISTOR IMZ4T108
R2901
1-216-818-11 s RESISTOR, CHIP 560 1/16W 1608
R2902
1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R2903
1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R2904
1-216-804-11 s RESISTOR,CHIP 39 1/16W 1608
R2905
1-216-804-11 s RESISTOR,CHIP 39 1/16W 1608
R2906
1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R2907
1-216-826-11 s RESISTOR,CHIP 2.7K 1/16W(1608)
R2908
1-216-826-11 s RESISTOR,CHIP 2.7K 1/16W(1608)
R2909
1-216-821-11 s RESISTOR,CHIP 1.0K 1/16W(1608)
R2910
1-216-804-11 s RESISTOR,CHIP 39 1/16W 1608
R2911
1-216-804-11 s RESISTOR,CHIP 39 1/16W 1608
R2912
1-216-820-11 s RESISTOR, CHIP 820 1/16W 1608
R2913
1-216-820-11 s RESISTOR, CHIP 820 1/16W 1608
R2914
1-216-804-11 s RESISTOR,CHIP 39 1/16W 1608
R2915
1-216-804-11 s RESISTOR,CHIP 39 1/16W 1608
R2916
1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R2917
1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R2918
1-216-816-11 s RESISTOR, CHIP 390 1/16W 1608
R2919
1-216-816-11 s RESISTOR, CHIP 390 1/16W 1608
R2920
1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R2921
1-216-804-11 s RESISTOR,CHIP 39 1/16W 1608
R2922
1-216-804-11 s RESISTOR,CHIP 39 1/16W 1608
R2923
1-216-821-11 s RESISTOR,CHIP 1.0K 1/16W(1608)
R2924
1-216-814-11 s RESISTOR,CHIP 270 1/16W 1608
R2925
1-216-814-11 s RESISTOR,CHIP 270 1/16W 1608
7-41
