3.1

Connectors

Connectors are connected the CPU board with other parts of the system. Loose or improper
connection might cause problems. Make sure all connectors are properly and firmly
connected before your turn on the system.
3.1.1

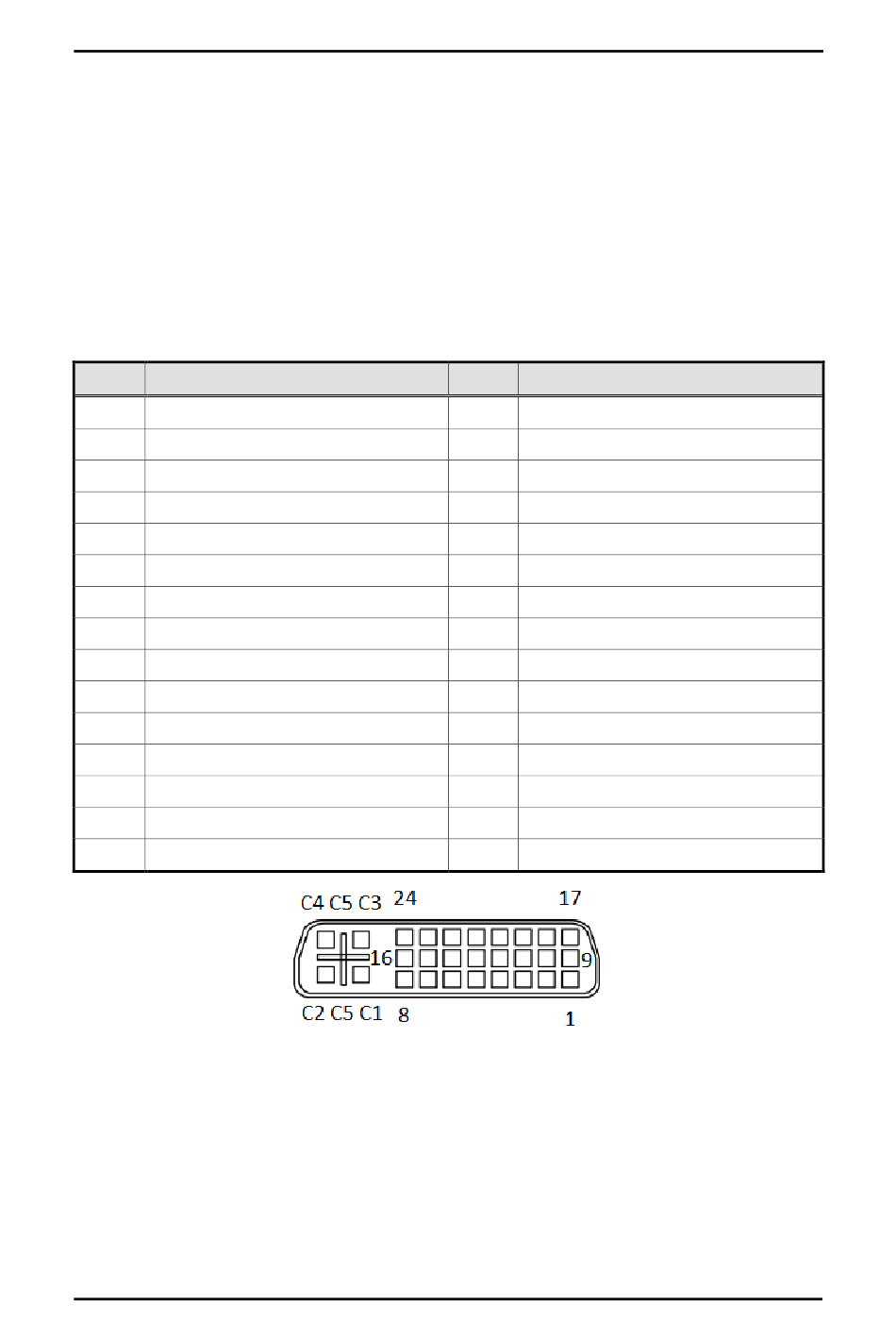

DVI / VGA / CANBUS Connector

DVI-I
Pin Signal
1 TMDS Data 2-
3 GND
5 CRT_SPD_Data
7 DVI_SPD_Data
9 TMDS Data 1-
11 GND
13 N.C.
15 GND
17 TMDS Data 0-
19 GND
21 N.C
23 TMDS Clock+
C1 Analog RED
C3 Analog Blue
C5 GND
Connector
tBOX324-894-FL Series User's Manual
Pin Signal
2 TMDS Data 2+
4 CRT_SPD_Clock
6 DVI_SPD_Clock
8 Analog Vsync
10 TMDS Data 1+
12 N.C
14 +5V
16 Hot Plug Detect
18 TMDS Data 0+
20 N.C
22 GND
24 TMDS Clock-
C2 Analog Green
C4 Analog Hsync
