2.3 Electric Installation

This subsection describes how to connect
Network (LAN) and how to connect supply voltage and the electric lock.

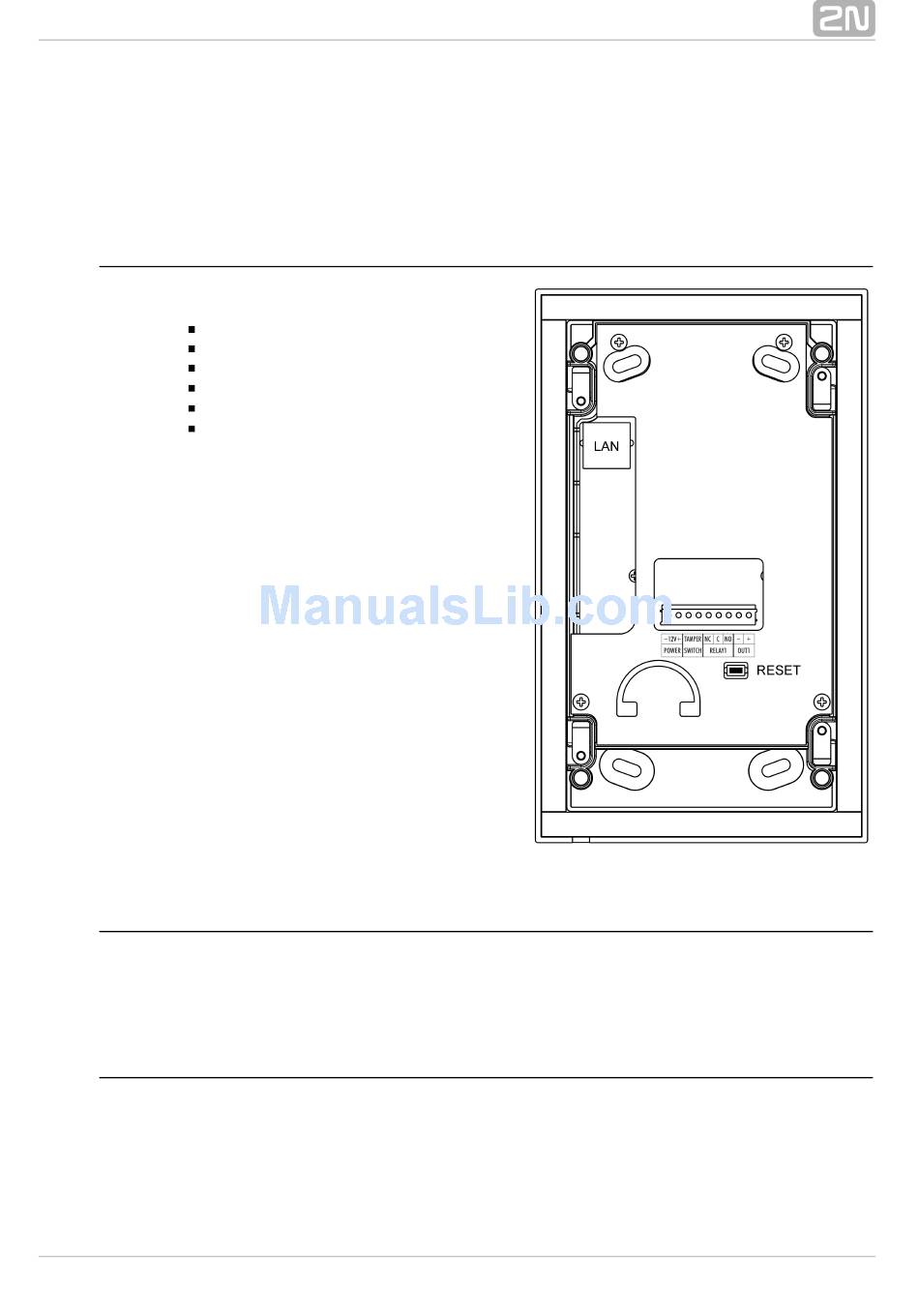

PCB Connectors
Description of Connectors
LAN – LAN connector
OUT1 – Active switched output
RELAY1 – Relay NO/NC contacts
TAMPER – Tamper switch
POWER – Power input
RESET – RESET button
LAN Connection
®
2N Helios IP Uni is connected to the LAN via a RJ-45 terminated (connector LAN)
UTP/STP cable (of category Cat 5e or higher). The system is equipped with the
Auto-MDIX function and so both the straight and crossed cable versions can be used
External Power Supply Connection
®
2N Helios IP Uni can be fed either from an external 12 V / 2 A DC power supply or
from the LAN equipped with the PoE 802.3af supporting network elements.
®
