Summary of Contents for New Rock Technologies NRP1000

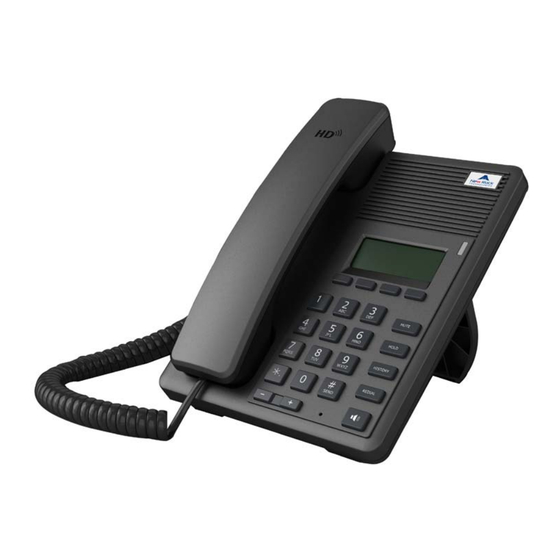

- Page 1 New Rock Technologies, Inc. NRP1000 Series IP Phone User Manual NRP1000 NRP1000/P http://www.newrocktech.com/index_E.asp Email: gs@newrocktech.com MSN: newrock.gs@hotmail.com Skype: newrock.gs...
-
Page 2: Safety Notices
Safety Notices Please read the following safety notices before installing or using this phone. They are crucial for the safe and reliable operation of the device. Please use an external power supply that is included in the package. Other power supplies may cause damage to the phone, affect the behavior or induce noise. -
Page 3: Table Of Contents
Contents 1 Introduction ..............................1-1 1.1 Appearance of an IP Phone ..........................1-1 1.2 Icon Description ..............................1-2 1.3 LED Indicator ..............................1-3 1.4 Hardware Specifications ............................ 1-3 1.5 Character Mapping Table ..........................1-4 2 Initial Connection and Settings ........................ - Page 4 5.1 Configuration Introduction ..........................5-1 5.1.1 Configuration Methods..........................5-1 5.1.2 Password Configuration .......................... 5-1 5.2 Setting the NRP1000/P through a Web Browser ....................5-1 5.3 Basic Configuration ............................5-2 5.3.1 Status ..............................5-2 5.3.2 Wizard ..............................5-3 ...
- Page 5 5.8.2 Syslog ..............................5-48 5.8.3 Config ..............................5-50 5.8.4 Update ..............................5-50 5.8.5 Access ..............................5-52 5.8.6 Reboot ..............................5-53 5.9 Security ................................5-54 5.9.1 Web Filter ............................. 5-54 5.9.2 Firewall ..............................5-54 ...
- Page 6 Contents of Figure Figure 1-1 Appearance of an IP Phone ........................1-1 Figure 5-1 Login interface ............................5-2 Figure 5-2 Status interface ............................5-2 Figure 5-3 Wizard interface ............................5-3 Figure 5-4 Static IP settings interface ........................5-4 ...
- Page 7 Contents of Table Table 1-1 Keypad description ..........................1-1 Table 1-2 Connection port description ........................1-2 Table 1-3 Icon description ............................1-2 Table 1-4 Power Indication LED ..........................1-3 Table 1-5 Hardware specification ..........................1-3 ...
-
Page 9: Introduction
NRP1000 Series IP Phone User Manual Introduction 1.1 Appearance of an IP Phone Figure 1-1 Appearance of an IP Phone Table 1-1 Keypad description Name Description Executes different functions with different softkeys, such as Soft key 1/2/3/4 /DND/Menu/Del/Redial/Send/ PBook Quit/Answer/Reject/Hold/Transfer/Conf and so on. -
Page 10: Icon Description
User Manual NRP1000 Series IP Phone Name Description Digital Inputs the phone number or numbers. keyboard Table 1-2 Connection port description Port Name Description Power interface Input: 5V AC, 1A 10/100M self-adaptive Ethernet interface for network connection 10/100M for PC connection... -
Page 11: Led Indicator
NRP1000 Series IP Phone User Manual Icon Description Missed call Call forward 1.3 LED Indicator Table 1-4 Power Indication LED LED Status Description Steady red The power connection is established/there is a missed call (the power indicator is on). Slow blinking red There is an incoming call. -
Page 12: Character Mapping Table
User Manual NRP1000 Series IP Phone 1.5 Character Mapping Table Table 1-6 Mapping relation between the keypad and character Keypad Character Keypad Character 7 P Q R S p q r s 2 A B C a b c 8 T U V t u v... -
Page 13: Initial Connection And Settings
ADSL is used, you need to set the network mod to PPPOE. With a substitute broadband router NRP1000/P itself has the broadband routing capability. As long as the WAN port of the NRP1000/P is properly connected to the broadband modem and the LAN port of the NRP1000/P is connected to your computer or other devices with Internet capability, you can access the Internet. -
Page 14: Connecting To The Power Outlet
The factory network mode of the NRP1000/P is DHCP, allowing the NRP1000/P to access the network as long as there is a DHCP server. If there is no DHCP server available, you need to change the network mode of the NRP1000/P to Static IP or PPPoE according to the network type. - Page 15 Step5 Press Back six times to return to the stand-by screen. Step6 Check the status. If the screen shows “Negotiating…”, the NRP1000/P is trying to access the PPPoE Server; if the screen shows an IP address, the PPPoE mode takes effect.
-
Page 17: Phone Function
Pick up the handset and hear dial tone, you can start dialing. After entering the destination number, press the [#] key, NRP1000 can immediately start connecting with each other. When you hear the beep ... beep ... long beep, the other phone started ringing, until the other party pick up the handset or use the speakerphone (time of the call is displayed on the screen), you can start talking. -
Page 18: Dnd
User Manual NRP1000 Series IP Phone key to answer the call If a headset is connected, press the Headset key. If you are on a call currently, press the answer softkey. During the conversation, you can alternate between Headset, Handset and Speaker phone by pressing the corresponding buttons or picking up the handset. -
Page 19: Call Transfer
NRP1000 Series IP Phone User Manual 3.1.7 Call Transfer Blind Transfer During conversion, you can press the Transf key, enter the number to transfer to, and press "#" to transfer the current call to a third party. After the transfer, you are disconnected with the caller. Note that you cannot select the SIP line when the call transfer is enabled. -
Page 20: Application
User Manual NRP1000 Series IP Phone 3.2.4 Application Press Menu > Applications > Enter > SMS > Enter. Use the navigation keys to select and read messages in the Inbox/Outbox. After checking a message, you can press Reply to reply it. Use the 2aB softkey to select an input method. -
Page 21: Other Functions
NRP1000 Series IP Phone User Manual 3.3 Other Functions 3.3.1 Auto Handdown Press Menu > Features > Enter > Auto Handdown > Enter. Enable the auto handdown function using the navigation keys . Set the time to play the alert tone (in seconds) and press Save. -
Page 22: Power Light
User Manual NRP1000 Series IP Phone 3.3.6 Power Light Press Menu > Features > Enter > Power Light > Enter. Switch on or off the power light using the navigation keys 3.3.7 Hide DTMF Press Menu > Features > Enter > Hide DTMF > Enter. -
Page 23: Phone Settings
NRP1000 Series IP Phone User Manual Phone Settings 4.1 Basic Settings 4.1.1 Keyboard Press Menu > Settings > Enter > Basic Settings > Enter > Keyboard > Enter. You can set the DSS key settings, Programmable keys, Desktop Long Pressed, Soft Key as needed. -
Page 24: Language
User Manual NRP1000 Series IP Phone 4.1.7 Language Press Menu > Settings > Enter > Basic Settings > Enter > Language > Enter. Choose the language using the navigation keys. The default two languages are English and Chinese. -
Page 25: Web Page Setting
NRP1000 Series IP Phone User Manual Web Page Setting 5.1 Configuration Introduction 5.1.1 Configuration Methods Users with different using habits can configure the NRP1000/P by means of: Phone keypad Web browser (recommended) Telnet with CLI command 5.1.2 Password Configuration The browser and command lines of the phone can be set in either of the two modes: guest mode and administrator mode. -
Page 26: Basic Configuration
User Manual NRP1000 Series IP Phone Figure 5-1 Login interface After configuring the IP phone, you need click Save in the config tag of Maintenance to save your modification. Otherwise, the phone restores the configuration before modification after reboot. 5.3 Basic Configuration 5.3.1 Status... -
Page 27: Wizard
Figure 5-3 Wizard interface The connection mode of the phone varies with the network condition. You need to select a proper mode according to the real world situation. The NRP1000/P provides three network connection modes: Static IP: If your ISP server provides you a static IP address, you can choose this mode, and fill in the corresponding information including the static IP address, subnet mask, network gateway, and DNS. -
Page 28: Figure 5-4 Static Ip Settings Interface
User Manual NRP1000 Series IP Phone Figure 5-4 Static IP settings interface Table 5-2 Static IP settings parameters Name Description IP Address Inputs the IP address distributed to you. Subnet Mask Inputs the subnet mask distributed to you. IP Gateway Inputs the gateway address distributed to you. -
Page 29: Figure 5-6 Pppoe Settings Interface
NRP1000 Series IP Phone User Manual Name Explanation Authentication Inputs the password for SIP registration. Password SIP User Inputs the phone number registered to the SIP server. Enable Enable/disable registration. Registration Click Next to display detailed configuration information just set. -
Page 30: Call Log
User Manual NRP1000 Series IP Phone Table 5-4 PPPoE settings parameters Name Description Inputs the name of a PPPoE server. If the PPPOE service provider has no special Server Name requirements , you can use the default value. User Inputs your ADSL account. -
Page 31: Language
NRP1000 Series IP Phone User Manual 5.3.4 Language Figure 5-8 Language setting interface Table 5-6 Language parameters setting Name Description Language Sets the language of the phone. The default language is English. Sets the greeting words to be displayed on LCD screen. -
Page 32: Network
User Manual NRP1000 Series IP Phone 5.4 Network 5.4.1 WAN Figure 5-9 WAN setting interface Table 5-7 WAN parameters setting Name Description WAN Status Active IP Address Specifies the current IP address of the phone. Current Subnet Specifies the subnet mask of the phone. -
Page 33: Lan
NRP1000 Series IP Phone User Manual Name Description Indicates whether to enable the DHCP mode. If you choose this mode, the phone can DHCP obtain the network-related information automatically from the DHCP server automatically, and no action is required. Indicates whether to enable PPPoE mode. If you choose this mode, you need to input PPPoE the ADSL account and password. -
Page 34: Qos & Vlan
5.4.3 QoS & VLAN The NRP1000/P supports 802.1Q/P and DiffServ configurations. The VLAN function can be divided into Voice VLAN and Data VLAN by VLAN IDs. If Data VLAN is configured, signaling, voice streams, and other data streams are tagged with different VLAN IDs to make the VLAN application more flexible. -
Page 35: Service Port
NRP1000 Series IP Phone User Manual Name Description Enable LLDP Enables the LLDP function. Package Specifies the interval at which LLDP packets are sent, in seconds. The default value is Interval(1-3600) Enables the LLDP Learn function. If enabled, the phone can automatically learn values Enable Learning of the QoS, VLAN ID, and 802.1p from the switch. -
Page 36: Table 5-10 Service Port Parameters Setting
User Manual NRP1000 Series IP Phone Table 5-10 Service port parameters setting Name Description Service Port Settings Web Server Type Sets a web service protocol. The value can be HTTP or HTTPS. Sets a Web browser port. The default port number is 80. To increase the system safety, you are recommended to change the port to a non-80 standard port, and save the configuration. -
Page 37: Dhcp Server
NRP1000 Series IP Phone User Manual 5.4.5 DHCP Server Figure 5-13 DHCP server setting interface Table 5-11 DHCP server parameters setting Name Description Lists the IP address and MAC address allocated through DHCP. If the LAN port of the DHCP Client... -
Page 38: Time&Date
User Manual NRP1000 Series IP Phone Name Description Subnet Mask Sets the subnet mask of the lease table. IP Gateway Sets the default IP gateway of the lease table. DNS Server Sets the default IP address of the DNS server of the lease table. Click Add to add Address entries to the lease table. -
Page 39: Figure 5-14 Time&Date Setting Interface
NRP1000 Series IP Phone User Manual Figure 5-14 TIME&DATE setting interface Table 5-12 TIME&DATE parameters setting Name Description Simple Network Time Protocol (SNTP) Settings Enable SNTP Enables SNTP. Enable DHCP Enables DHCP Time so that the phone will automatically synchronize the standard Time time. -
Page 40: Voip
User Manual NRP1000 Series IP Phone Name Description Offset Sets the variety length. Month Sets the start and end month. Week Sets the start and end week. Sets the start and end day. Hour Sets the start and end hours. -
Page 41: Figure 5-15 Sip Setting Interface
NRP1000 Series IP Phone User Manual Figure 5-15 SIP setting interface New Rock Technologies, Inc. 5-17... -
Page 42: Table 5-13 Sip Parameters Setting
User Manual NRP1000 Series IP Phone Table 5-13 SIP parameters setting Name Description SIP Line In this part, you can choose one of the four SIP lines and configure a SIP account for it. Basic Settings Status Indicates whether the phone is registered to the SIP server. Available values include Applied and Unapplied. - Page 43 NRP1000 Series IP Phone User Manual Name Description Specifies the IP address of a proxy server. (Usually, the SIP service provider provides a server with configurations of the proxy server and registration server being identical. Proxy Server If configurations (such as the IP address) of the proxy server and registration server are Address different, you need to make modifications as needed.
- Page 44 User Manual NRP1000 Series IP Phone Name Description Enable Session Set Enable/Disable Session Timer, whether support RFC4028.It will refresh the SIP Timer sessions. Session Timeout Sets the session timeout period. Subscribe Enables the phone to subscribe the peer status or voice messages..
- Page 45 NRP1000 Series IP Phone User Manual Name Description Keep Alive Sets the interval at which the phone sends a message to check whether the server Interval operates normally. User Agent Enables a user agent. DTMF Type Sets the DTMF sending mode. The value can be:...
-
Page 46: Iax2
User Manual NRP1000 Series IP Phone Name Description Click to talk Enables the click to Talk function. This function needs application support of the software. SIP Global Settings Enables the phone to strictly check the Branch field in the received SIP message. If the... -
Page 47: Stun
NRP1000 Series IP Phone User Manual Table 5-14 IAX2 parameters setting Name Description Status Indicates whether the phone has been registered to the IAX2 server. The value can be Applied or Unapplied. Server Address Specifies the IP address of the IAX2 server. The value can be in the form of domain name. -
Page 48: Figure 5-17 Stun Setting Interface
User Manual NRP1000 Series IP Phone Figure 5-17 Stun setting interface Table 5-15 Stun parameters setting Name Description Simple Traversal of UDP through NATs (STUN) Settings STUN NAT Shows STUN NAT Transverse estimation, true means STUN can penetrate NAT, Traversal while False means not. -
Page 49: Dial Peer
NRP1000 Series IP Phone User Manual 5.5.4 Dial Peer This function offers you a flexible dial mode, allowing you to make phone calls through Internet or based on a dial peer table. For example, if you know the mapping relationship between the number (156) and IP address (192.168.1.119) of a peer, and want to call him in P2P mode, you can dial 156 to make... -
Page 50: Figure 5-18 Dial Peer Interface
User Manual NRP1000 Series IP Phone Figure 5-18 Dial peer interface Table 5-16 Dialpeer parameters setting Name Description Adds an outgoing number. The outgoing number can be set in two modes: full Phone Number matching or prefix matching. In full matching mode the phone will make a call unless... - Page 51 NRP1000 Series IP Phone User Manual 8T indicates that if the phone is configured with a SIP2 server and has been registered to the server, all users attempting to make phone calls through the SIP2 server need to add 8 before the phone number...
-
Page 52: Table 5-17 Examples Of Different Alias Application
User Manual NRP1000 Series IP Phone 0.0.0.2: indicates that this rule takes effect only for calls on SIP line 2. 0.0.0.x: indicates that this rule takes effect only for calls on SIP line x. 0.0.0.0: indicates that this rule takes effect for calls on all SIP lines. -
Page 53: Phone
NRP1000 Series IP Phone User Manual Set by web Description Example If your dialed phone number starts with When you dial “147”, your set phone number. The phone will the number that the send out your dialed phone number SIP1 server receives adding suffix number. -
Page 54: Feature
User Manual NRP1000 Series IP Phone Name Description Tone Standard Sets the tone standard. Handset Volume Sets the sound volume of the handset. Default Ring Sets a default ring tone. Type Speakerphone Sets the sound volume of the speaker. volume... -
Page 55: Figure 5-20 Feature Setting Interface
NRP1000 Series IP Phone User Manual Figure 5-20 Feature setting interface New Rock Technologies, Inc. 5-31... -
Page 56: Table 5-19 Feature Parameters Setting
User Manual NRP1000 Series IP Phone Table 5-19 Feature parameters setting Name Description DND (Do Not Enables the phone to reject any incoming call and prompt the caller that the phone is Disturb) busy. The outgoing call of the phone is not affected. - Page 57 NRP1000 Series IP Phone User Manual Name Description Auto Redial Sets the auto redial times of the phone. Times Hide DTMF Specifies the hide DTMF mode. Ring From Enables Ring From Handset by selecting it, the phone plays ring tone from handset.
-
Page 58: Dial Plan
User Manual NRP1000 Series IP Phone Name Description Block out Sets the Add/Delete Limit List. Please input the prefix of the phone numbers that you forbid the phone to dial. For example, if you want to forbid to dial the phones with prefix 001, you need to input 001 in the blank of limit list, and then you cannot dial any of these phone numbers with prefix 001. -
Page 59: Figure 5-21 Dial Plan Setting Interface
NRP1000 Series IP Phone User Manual Figure 5-21 Dial plan setting interface Table 5-20 Dial plan parameters setting Name Description Basic Setting Press "#" to Send Indicates that you need to press # after dialing a number. Dial Fixed Length Indicates that the phone will automatically call out after the number with a specified length is dialed. -
Page 60: Contact
User Manual NRP1000 Series IP Phone Name Description Below is user-defined digital map rule: [] Specifies a range that will match digit. May be a range, a list of ranges separated by commas, or a list of digits. * Match any single digit that is dialed. -
Page 61: Figure 5-22 Contact Setting Interface
NRP1000 Series IP Phone User Manual Figure 5-22 Contact setting interface Table 5-21 Contact parameters setting Name Description Phonebook Table Name Displays the number of the incoming call in the form of contact name on the LCD screen. Shows the detail of the current phonebook. - Page 62 User Manual NRP1000 Series IP Phone Name Description Office Number Specifies the office number. Mobile Number Specifies the mobile number. Other Number Specifies the other number. Ring Type Specifies a ring type for the incoming calls. Line Specifies the sip line for each number.
-
Page 63: Remote Contact
NRP1000 Series IP Phone User Manual 5.6.5 Remote Contact Figure 5-23 Rremote Contact setting interface In this page, you can configure an address for the XML phonebook address. After that, you can directly access the corresponding remote phonebook after pressing the remote contact key on the phone. -
Page 64: Web Dial
User Manual NRP1000 Series IP Phone 5.6.6 Web Dial This function enables you to make a call through the Web page. After inputting the phone number and select a line, you can call out by clicking Dial. To terminate a call, click Hangup. - Page 65 NRP1000 Series IP Phone User Manual Value format IP:Port，the IP address of multicast is range from 224.0.0.0 to 239.255.255.255,port is greater than 1024 If multicast codec is G722, the LCD screen will displays "HD", which means the phone is sending...
-
Page 66: Function Key
User Manual NRP1000 Series IP Phone Enable Page Priority Page priority determines the phone how to handle the newly received multicast RTP stream when in a multicast session. Enabled page priority, the phone will automatically ignore the low priority multicast RTP stream and receive the high priority multicast RTP stream and hold the current multicast session;... -
Page 67: Ext Key
NRP1000 Series IP Phone User Manual Table 5-23 Function Key parameters setting Name Description Screen Configuration Contrast Sets the contrast of the screen. Enable Backlight Turns the backlight on or off. Line Key Settings In this part, you can set the Line: select Auto, SIP1, SIP2 or IAX2 in function key type. After you set it, you pick up handset or hands-free, press this function key, and then you can use the corresponding SIP line. -
Page 68: Sofykey
User Manual NRP1000 Series IP Phone Figure 5-27 EXT KEY interface 5.7.3 Sofykey You can configure different functions for each softkey in the screen interface. 5-44 www.newrocktech.com... -
Page 69: Figure 5-28 Softkey Setting Interface
NRP1000 Series IP Phone User Manual Figure 5-28 Softkey setting interface New Rock Technologies, Inc. 5-45... -
Page 70: Maintenance
5.8.1 Auto Provision Figure 5-29 Auto provision setting interface The NRP1000/P supports PnP, DHCP, and Phone Flash to obtain the parameters. After PnP, DHCP, and Phone Flash are all deployed, the terminal goes through the following process to obtain the server address and other parameters when it boots up: ... -
Page 71: Table 5-24 Auto Provision Parameters Setting
NRP1000 Series IP Phone User Manual Table 5-24 Auto provision parameters setting Field name Explanation Auto Update Setting Current Config Specifies the version of the current configuration file. If the version of the CFG Version configuration file downloaded is the same as same as that of the running one, the system does not enable auto provision. -
Page 72: Syslog
User Manual NRP1000 Series IP Phone Field name Explanation Specifies different update modes: Update Mode 1. Disable 2. Update after reboot 3. Update at time interval TR069 Settings Enable TR069 Enables TR069. ACS Server Type Specifies the type of an ACS server. -
Page 73: Figure 5-30 Syslog Setting Interface
NRP1000 Series IP Phone User Manual Figure 5-30 Syslog setting interface Table 5-25 Syslog parameters setting Name Description Syslog Settings Server Address Specifies the IP address or domain name of the Syslog server. Server Port Specifies the port of the Syslog server. -
Page 74: Config
User Manual NRP1000 Series IP Phone 5.8.3 Config Figure 5-31 Config setting interface Table 5-26 Congif parameters setting Name Description Save Saves the current configuration. Configuration Note: You can save all changes of configurations. Click the Save button, all changes of configuration will be saved, and become effective immediately. -
Page 75: Figure 5-32 Update Setting Interface
NRP1000 Series IP Phone User Manual Figure 5-32 Update setting interface Table 5-27 Update parameters setting Name Description Web Update Updates the Web page. You can click the Browse button, find out the configuration file saved before or provided by manufacturer, and download the configuration file to Web Update the phone Alternatively, you can download the update system file of the phone . -
Page 76: Access
User Manual NRP1000 Series IP Phone Name Description Type Specifies the update type. The value can be: 1. Application update: downloads the system update file. 2. Config file export: uploads the configuration file to the FTP/TFTP server, name and save it. -
Page 77: Reboot
NRP1000 Series IP Phone User Manual Table 5-28 Access parameters setting Name Description Keyboard Sets the password for entering the setting menu of the phone through the phone‘s key Password board. The password is digit. Keyboard Lock Settings User Sets the account user name. -
Page 78: Security
User Manual NRP1000 Series IP Phone 5.9 Security 5.9.1 Web Filter Figure 5-35 Web filter interface In this page, you can configure devices in a certain IP address segment to access the MMI of the phone for configuration and management. -
Page 79: Figure 5-36 Firewall Setting Interface
NRP1000 Series IP Phone User Manual Figure 5-36 Firewall setting interface Table 5-30 Firewall parameters setting Name Description Firewall Type Enable Input Enables the application of input rules on the firewall. Rules Enable Output Enables the application of output rules on the firewall. -
Page 80: Nat
User Manual NRP1000 Series IP Phone Name Description Deletes an input or output rule as needed. 5.9.3 NAT NAT Settings Net Address Translation (NAT) is an IP address translation (IP address mapping) protocol. It is used to transform the private IP address and port to public IP address and port. -
Page 81: Vpn
NRP1000 Series IP Phone User Manual Name Description Application Layer Gateway (ALG) Settings PPTP ALG Enables/disables point-to-point tunneling protocol (PPTP) ALG. By default, PPTP ALG is enabled. NAT Table Option Transfer Type Specifies the type of the protocol for NAT mapping, TCP or UDP... -
Page 82: Security
User Manual NRP1000 Series IP Phone Name Description Selects L2TP. You can choose only one for current state. After you select it, you’d better save the configuration and reboot your phone. Enable VPN Enable or disable VPN. Layer 2 Tunneling Protocol (L2TP) VPN Server Specifies the IP address of a VPN L2TP server. -
Page 83: Logout
NRP1000 Series IP Phone User Manual 5.10 Logout You can quit the Web page by clicking Logout. For the next access, you need to input the username and password again. Figure 5-40 Logout setting interface New Rock Technologies, Inc. 5-59... -
Page 85: Appendix
NRP1000 Series IP Phone User Manual Appendix 6.1 Voice Features The NRP1000/P can provide the following voice features: Two SIP servers SIP 2.0 (RFC 3261) and the corresponding RFCs IAX2 Multiple call queuing IAX2 line key-based call ... -
Page 86: Network Features
QoS with DiffServ Network tools including ping, trace route, and telnet client 6.3 Maintenance and Management The NRP1000/P can provide the following maintenance and management functions: Application update in POST mode Web, Telnet and keypad management ...
