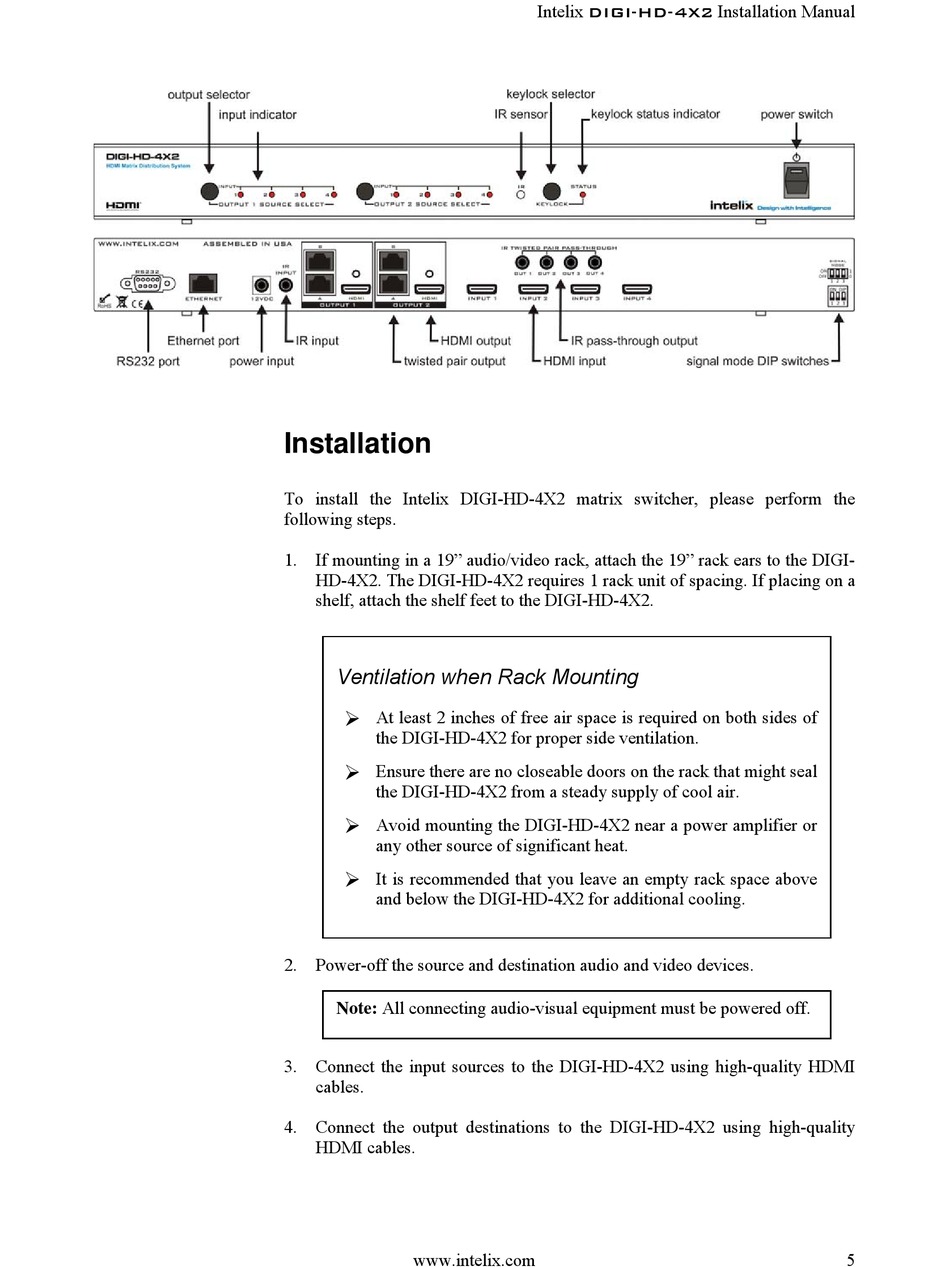

Installation

To install the Intelix DIGI-HD-4X2 matrix switcher, please perform the
following steps.
1. If mounting in a 19" audio/video rack, attach the 19" rack ears to the DIGI-
HD-4X2. The DIGI-HD-4X2 requires 1 rack unit of spacing. If placing on a
shelf, attach the shelf feet to the DIGI-HD-4X2.
Ventilation when Rack Mounting

At least 2 inches of free air space is required on both sides of
the DIGI-HD-4X2 for proper side ventilation.

Ensure there are no closeable doors on the rack that might seal
the DIGI-HD-4X2 from a steady supply of cool air.
 Avoid mounting the DIGI-HD-4X2 near a power amplifier or
any other source of significant heat.
 It is recommended that you leave an empty rack space above
and below the DIGI-HD-4X2 for additional cooling.
2. Power-off the source and destination audio and video devices.
Note: All connecting audio-visual equipment must be powered off.
3. Connect the input sources to the DIGI-HD-4X2 using high-quality HDMI
cables.
4. Connect the output destinations to the DIGI-HD-4X2 using high-quality
HDMI cables.
