Intelix DIGI-HD-4X2 Installation Manual
18

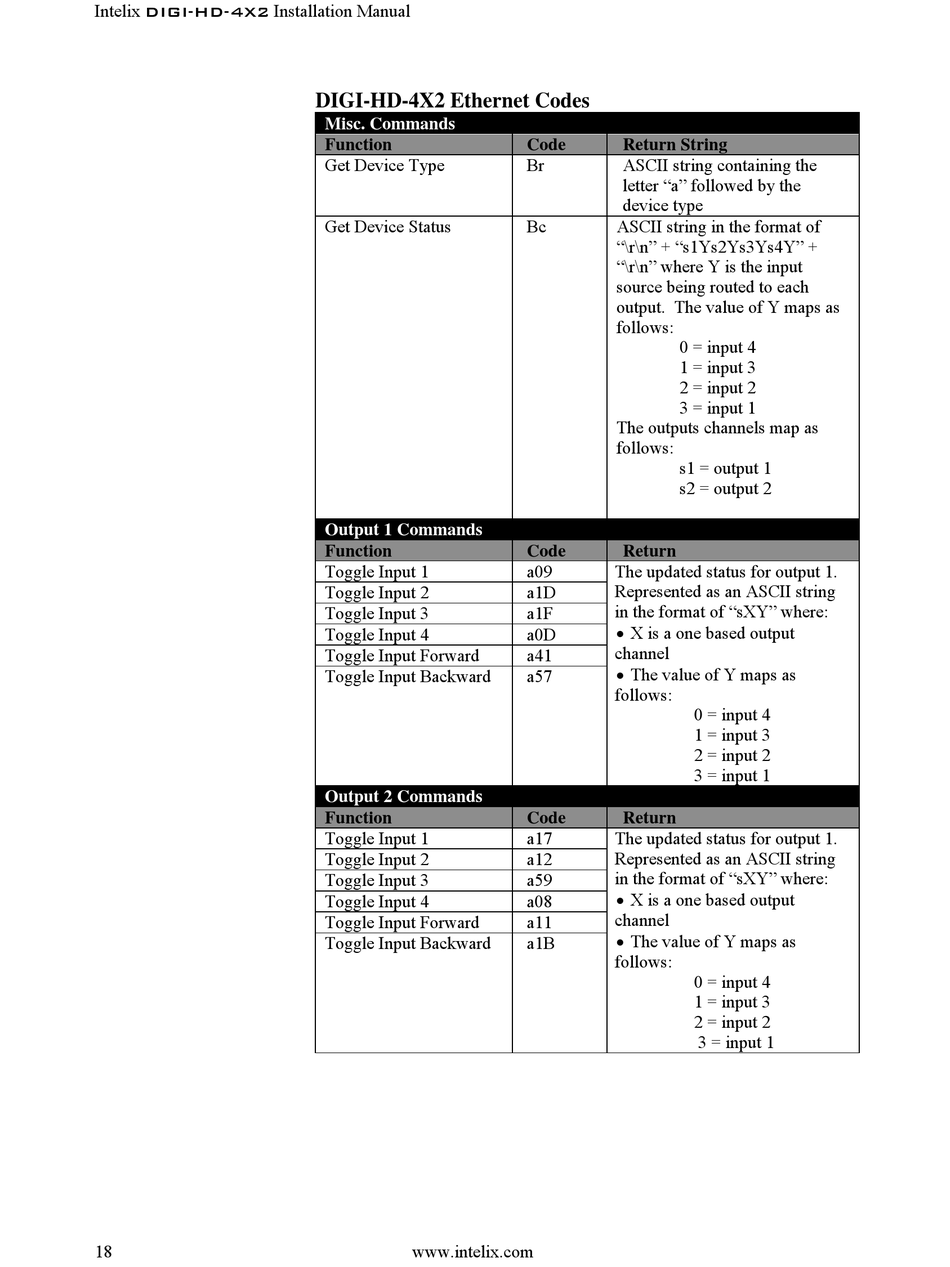

DIGI-HD-4X2 Ethernet Codes
Misc. Commands
Function
Get Device Type
Get Device Status
Output 1 Commands
Function
Toggle Input 1
Toggle Input 2
Toggle Input 3
Toggle Input 4
Toggle Input Forward
Toggle Input Backward
Output 2 Commands
Function
Toggle Input 1
Toggle Input 2
Toggle Input 3
Toggle Input 4
Toggle Input Forward
Toggle Input Backward
www.intelix.com
Code Return String
Br ASCII string containing the
letter "a" followed by the
device type
Bc ASCII string in the format of
"\r\n" + "s1Ys2Ys3Ys4Y" +
"\r\n" where Y is the input
source being routed to each
output. The value of Y maps as
follows:
0 = input 4
1 = input 3
2 = input 2
3 = input 1
The outputs channels map as
follows:
s1 = output 1
s2 = output 2
Code Return
a09 The updated status for output 1.
Represented as an ASCII string
a1D
in the format of "sXY" where:
a1F
 X is a one based output
a0D
channel
a41
 The value of Y maps as
a57
follows:
0 = input 4
1 = input 3
2 = input 2
3 = input 1
Code Return
a17 The updated status for output 1.
Represented as an ASCII string
a12
in the format of "sXY" where:
a59
 X is a one based output
a08
channel
a11
 The value of Y maps as
a1B
follows:
0 = input 4
1 = input 3
2 = input 2
3 = input 1
