Intelix DIGI-HD-4X2 Installation Manual
6

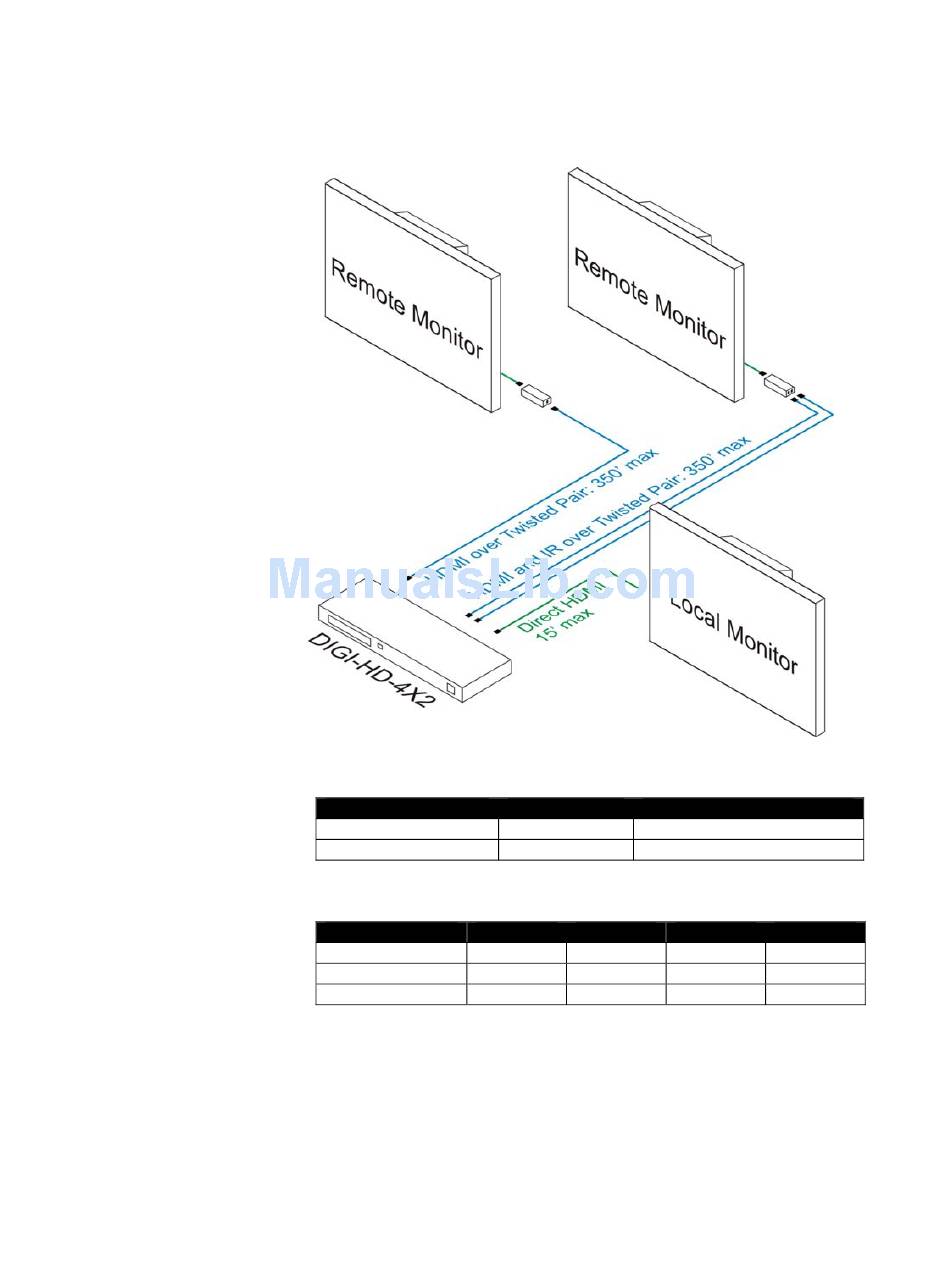

5. For long distance destinations, connect one or two twisted pair cables per
run to the DIGI-HD-4X2 (twisted pair receivers sold separately).
Recommended Twisted Pair Receivers
DIGI-HD-UHR2-R
DIGI-HD-IR2-R
Recommended Twisted Pair Distances
Cat 6 (low-skew)
Cat 6
Cat 5e
6. Connect the included 12 VDC power supply to the DIGI-HD-4X2.
7. If controlling remotely, connect RS232, Ethernet, or IR control cables.
8. Power-on the DIGI-HD-4X2.
9. Power-on the source and destination audio and video devices.
www.intelix.com
Signals
Twisted Pair Cables Required
HDMI
HDMI and IR
1080p
1080i
150'
300'
110'
220'
100'
200'
1
2
720p
480i/p
300'
350'
220'
220'
200'
200'
