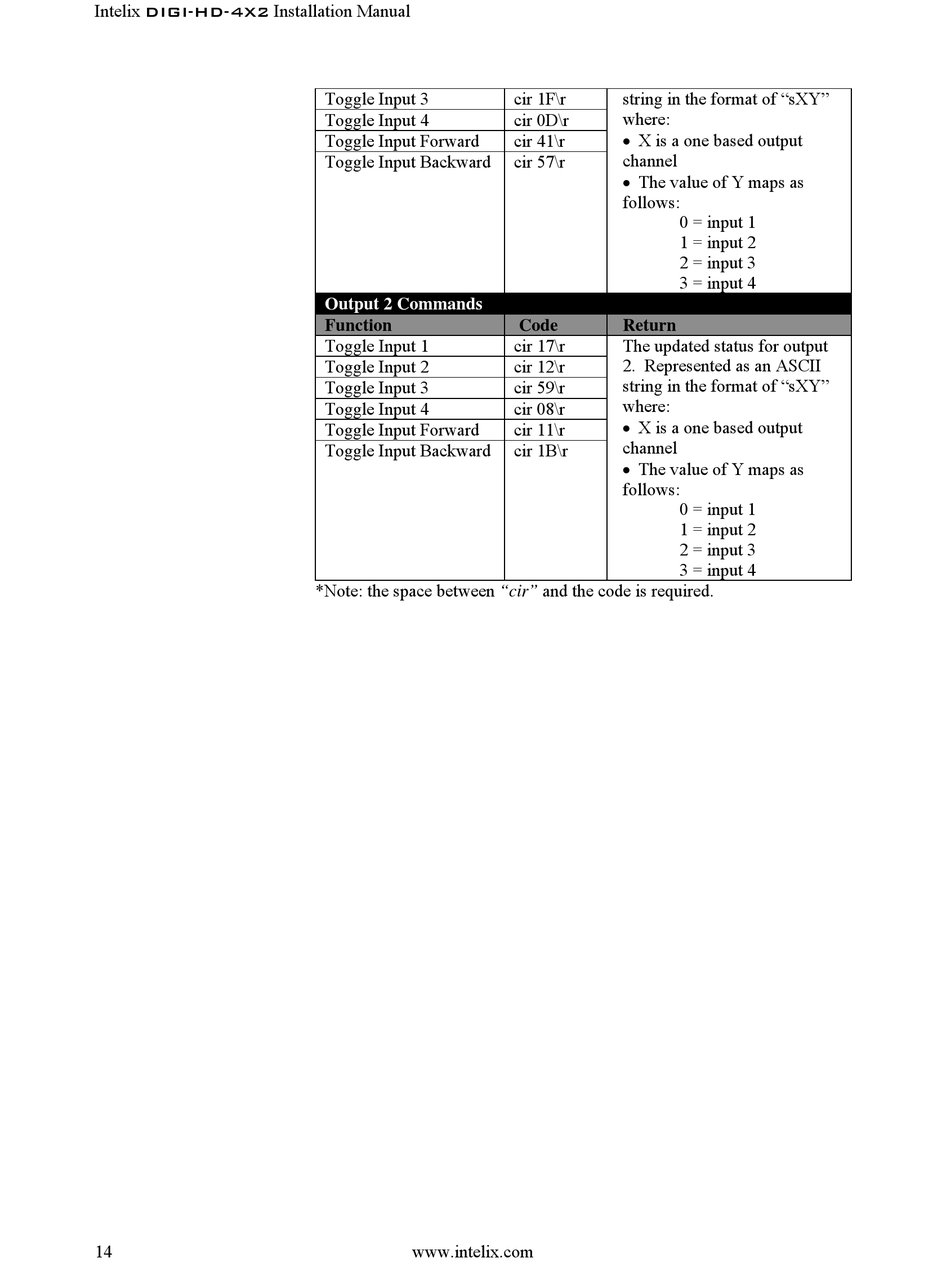

Toggle Input 3
Toggle Input 4
Toggle Input Forward
Toggle Input Backward
Output 2 Commands
Function
Toggle Input 1
Toggle Input 2
Toggle Input 3
Toggle Input 4
Toggle Input Forward
Toggle Input Backward
*Note: the space between "cir" and the code is required.
www.intelix.com
cir 1F\r string in the format of "sXY"
where:
cir 0D\r
 X is a one based output
cir 41\r
channel
cir 57\r
 The value of Y maps as
follows:
0 = input 1
1 = input 2
2 = input 3
3 = input 4
Code Return
cir 17\r The updated status for output
2. Represented as an ASCII
cir 12\r
string in the format of "sXY"
cir 59\r
where:
cir 08\r
 X is a one based output
cir 11\r
channel
cir 1B\r
 The value of Y maps as
follows:
0 = input 1
1 = input 2
2 = input 3
3 = input 4
