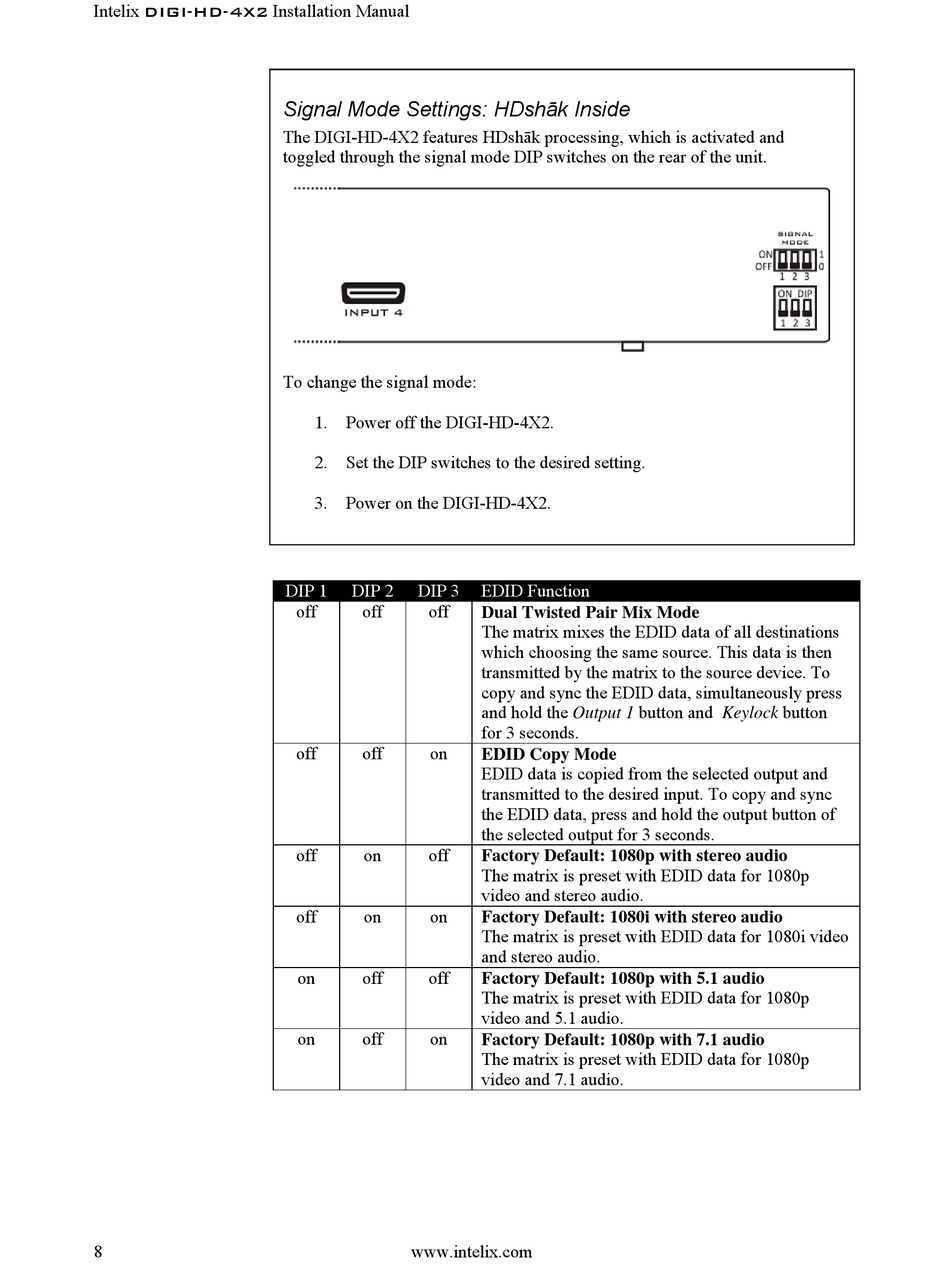

Intelix DIGI-HD-4X2 Installation Manual page 8

Intelix DIGI-HD-4X2 Installation Manual
8
Signal Mode Settings: HDshāk Inside
The DIGI-HD-4X2 features HDshāk processing, which is activated and
toggled through the signal mode DIP switches on the rear of the unit.
Note: The DIGI-HD-4X2 features on-board memory. Settings are
stored during power off and restored during power on.
To change the signal mode:
1. Power off the DIGI-HD-4X2.
2. Set the DIP switches to the desired setting.
3. Power on the DIGI-HD-4X2.
DIP 1 DIP 2 DIP 3
off off off
off off on
off on off
off on on
on off off
on off on
www.intelix.com
EDID Function
Dual Twisted Pair Mix Mode
The matrix mixes the EDID data of all destinations
which choosing the same source. This data is then
transmitted by the matrix to the source device. To
copy and sync the EDID data, simultaneously press
and hold the Output 1 button and Keylock button
for 3 seconds.
EDID Copy Mode
EDID data is copied from the selected output and
transmitted to the desired input. To copy and sync
the EDID data, press and hold the output button of
the selected output for 3 seconds.
Factory Default: 1080p with stereo audio
The matrix is preset with EDID data for 1080p
video and stereo audio.
Factory Default: 1080i with stereo audio
The matrix is preset with EDID data for 1080i video
and stereo audio.
Factory Default: 1080p with 5.1 audio
The matrix is preset with EDID data for 1080p
video and 5.1 audio.
Factory Default: 1080p with 7.1 audio
The matrix is preset with EDID data for 1080p
video and 7.1 audio.
