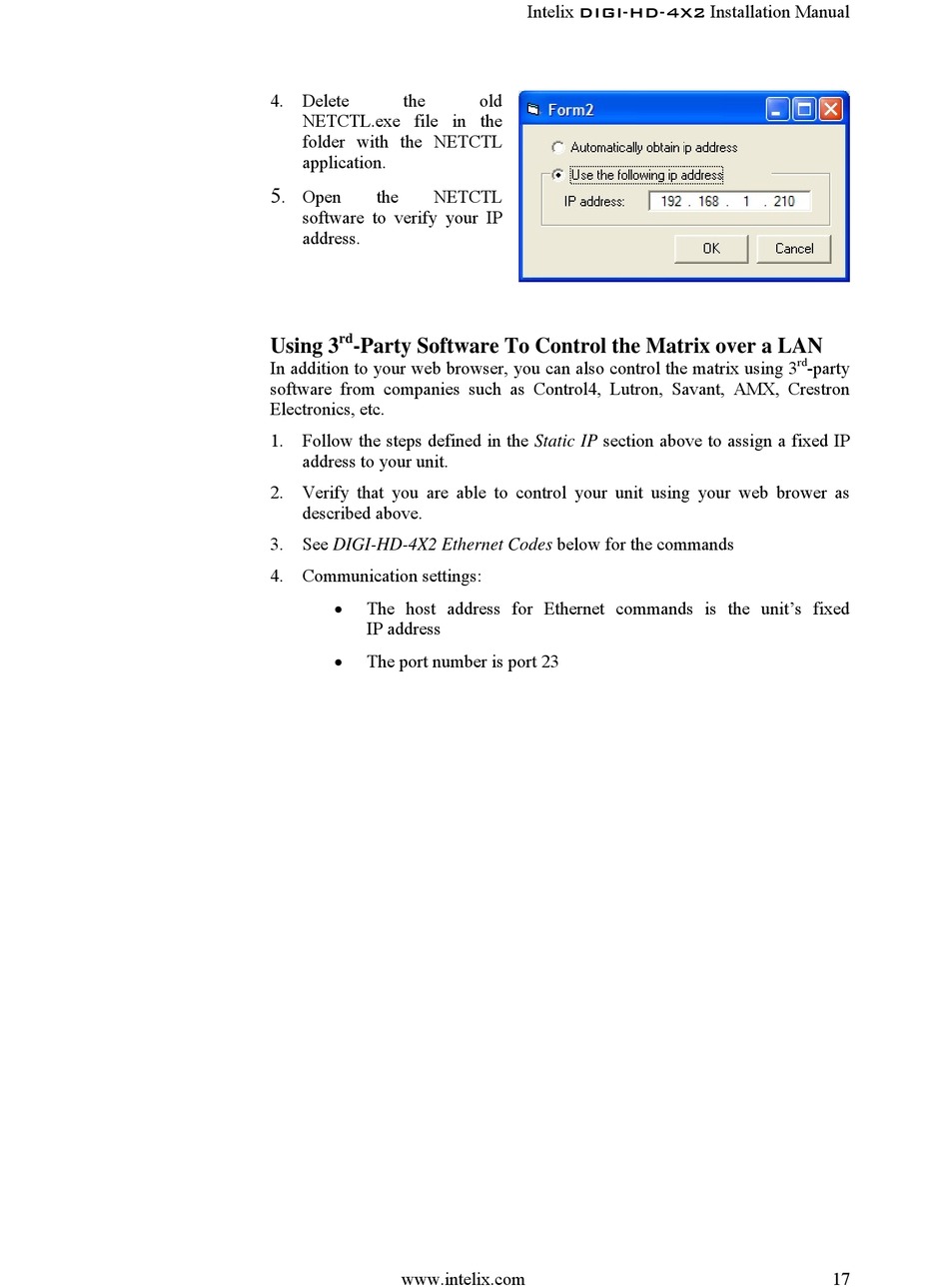

Intelix DIGI-HD-4X2 Installation Manual page 17

4. Delete the
NETCTL.exe file in the
folder with the NETCTL
application.
5.
Open the NETCTL
software to verify your IP
address.
rd
Using 3 -Party Software To Control the Matrix over a LAN
In addition to your web browser, you can also control the matrix using 3
software from companies such as Control4, Lutron, Savant, AMX, Crestron
Electronics, etc.
1. Follow the steps defined in the Static IP section above to assign a fixed IP
address to your unit.
2. Verify that you are able to control your unit using your web brower as
described above.
3. See DIGI-HD-4X2 Ethernet Codes below for the commands
4. Communication settings:

The host address for Ethernet commands is the unit's fixed
IP address

The port number is port 23
www.intelix.com
Intelix DIGI-HD-4X2 Installation Manual
old
rd
-party
17
