Intelix DIGI-HD-4X2 Installation Manual page 7

Twisted Pair Settings
The DIGI-HD-4X2 is compatible with both single twisted pair extenders
(DIGI-HD-UHR2-R) and double twisted pair extenders (DIGI-HD-IR2-R).
The different modes of operation are toggled through front panel key
strokes.
1. The default setting of the DIGI-HD-4X2 is double twisted pair
mode.

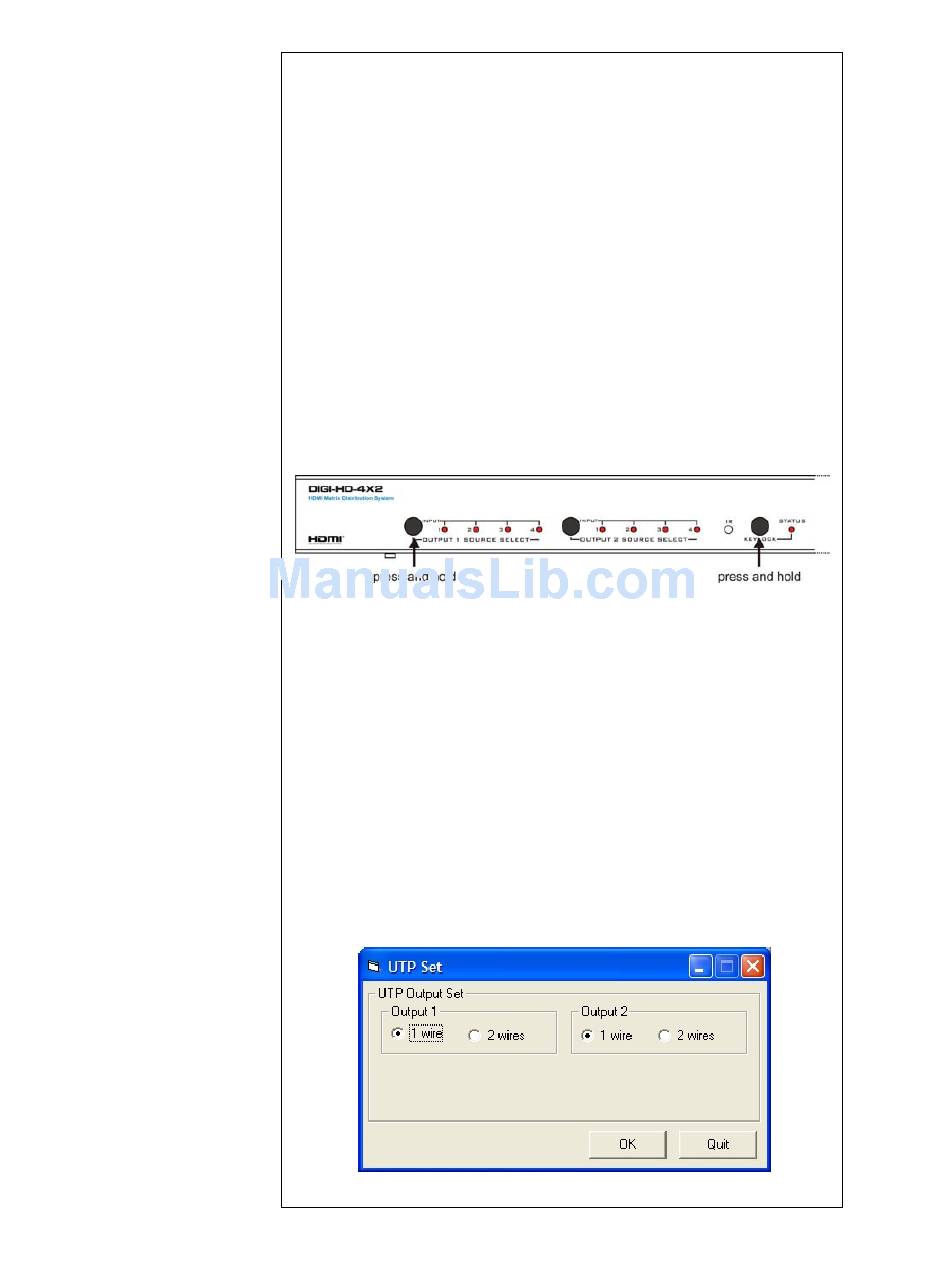

2. To switch the matrix into single twisted pair mode,
simultaneously press and hold the Output 3 button and Keylock
button for 3 seconds. The front panel LEDs will flash when the
mode is engaged.
3. To switch the matrix back into double twisted pair mode,
simultaneously press and hold the Output 3 button and Keylock
button for 3 seconds. The front panel LEDs will flash when the
mode is engaged.
Alternatively, the different modes of operation are toggled through Intelix
NetCtl software. Please visit Intelix's online technical library to download
the latest version of the software:
http://www.intelix.com/tech_library/software.htm.
1. Download and install NetCtl on your computer.
2. Launch the utility and verify you are connected to the matrix.
3. Select the UTP Set button.
4. Select which outputs you wish to toggle.
5. Select OK to enable the changes.
6. Select Quit to exit the window.
