Intelix DIGI-HD-4X2 Installation Manual
16

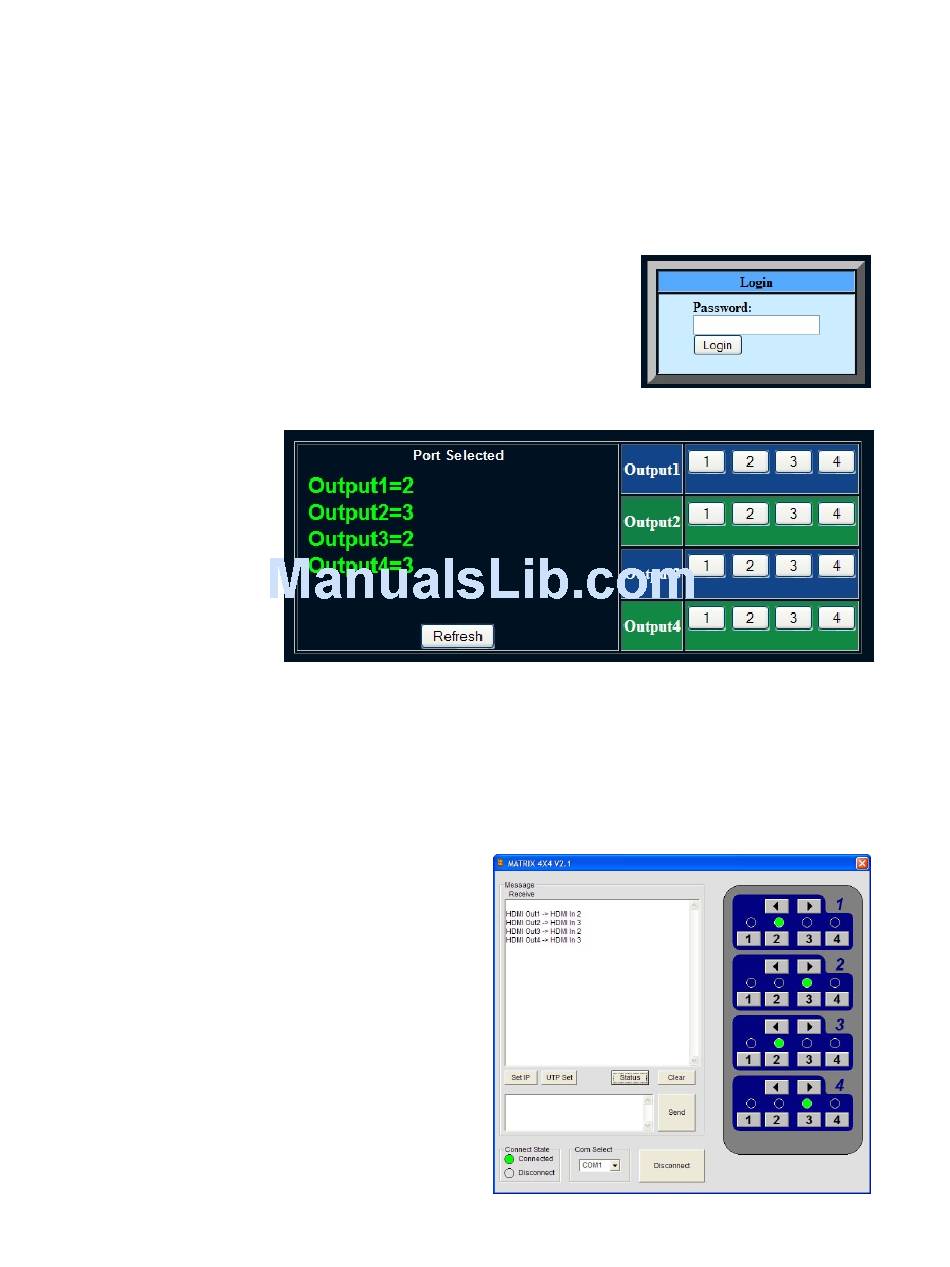

3. Click the Search button if no IP address is present. This will search the
LAN for all Intelix DigiCat Series HDMI products.
4. Note the IP address of the matrix.
5. Open your web browser.
6. In the address field, enter the IP address of the desired matrix.
7. The default password for the DIGI-HD-
4X2 is ten zeros (0000000000).
8. A welcome screen will launch, followed by
the Intelix Web Control Application.
Static IP
As a DHCP enabled device, the DIGI-HD-4X2 will automatically receive an IP
address. However, control systems require that devices have a fixed IP address
on the network. Using the COMCTL utility, you can assign a static IP address to
the DIGI-HD-4X2.
1. Open the COMCTL
software and verify
you are connected to
the matrix by pressing
the Status button.
2. Press the
Set IP
button.
3. Define your IP
address and press OK.
After 10 to 15
seconds, your IP
address will be set.
