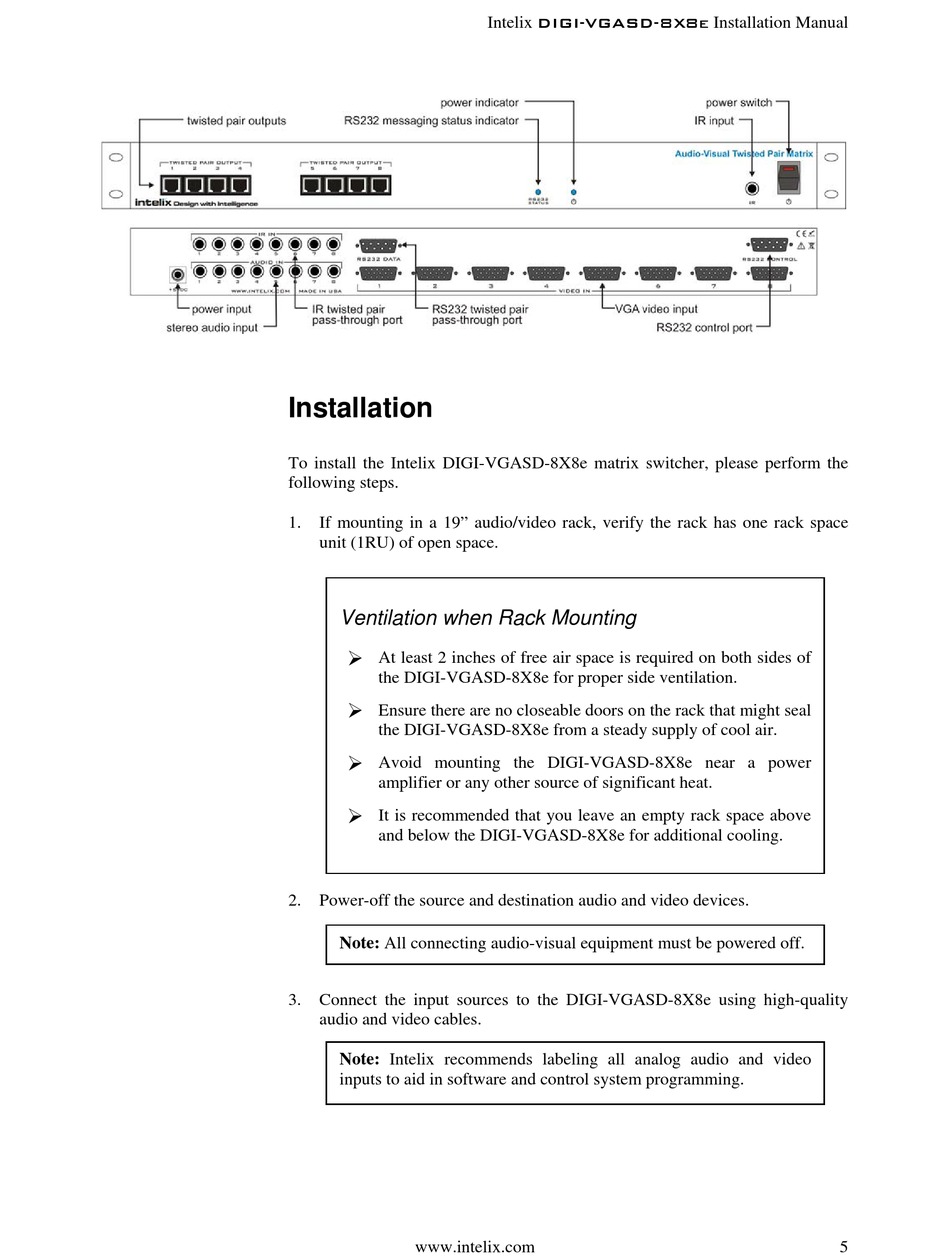

Installation - Intelix DIGI-VGASD-8X8e Installation Manual

Installation

To install the Intelix DIGI-VGASD-8X8e matrix switcher, please perform the
following steps.
1. If mounting in a 19" audio/video rack, verify the rack has one rack space
unit (1RU) of open space.
Ventilation when Rack Mounting

At least 2 inches of free air space is required on both sides of
the DIGI-VGASD-8X8e for proper side ventilation.

Ensure there are no closeable doors on the rack that might seal
the DIGI-VGASD-8X8e from a steady supply of cool air.

Avoid mounting the DIGI-VGASD-8X8e near a power
amplifier or any other source of significant heat.

It is recommended that you leave an empty rack space above
and below the DIGI-VGASD-8X8e for additional cooling.
2. Power-off the source and destination audio and video devices.
Note: All connecting audio-visual equipment must be powered off.
3. Connect the input sources to the DIGI-VGASD-8X8e using high-quality
audio and video cables.
Note: Intelix recommends labeling all analog audio and video
inputs to aid in software and control system programming.
www.intelix.com
Intelix DIGI-VGASD-8X8e Installation Manual
5
